The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer challenging applications.

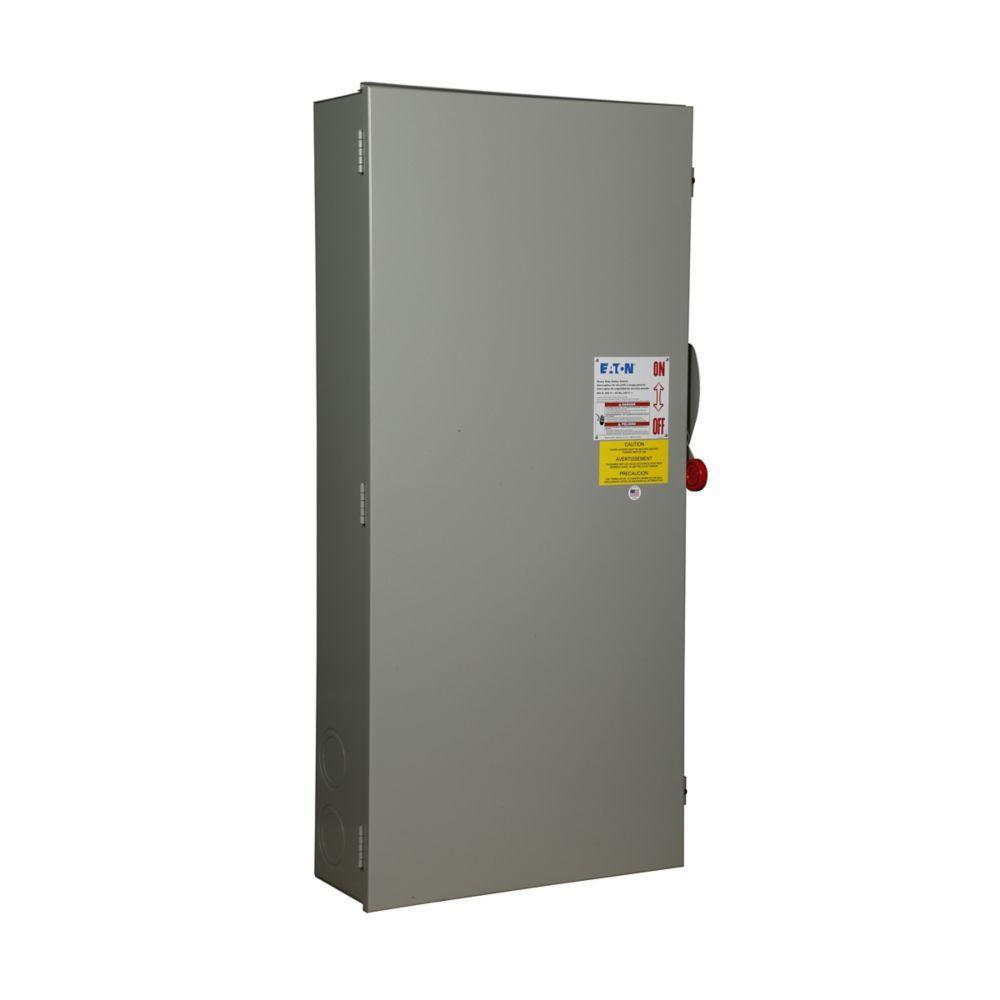

EATON Safety Switch, Heavy Duty Fusible Rainproof Single Throw, Series: K Series, 600 VAC, 600 A, 200 hp, 400 hp, 500 hp, 3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit Current Rating, TPST, Class H Insulation, NEMA 3R, 58 in L x 27-1/2 in W x 12 in H, Steel, Galvanized/Painted

• Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
• Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety
• Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary

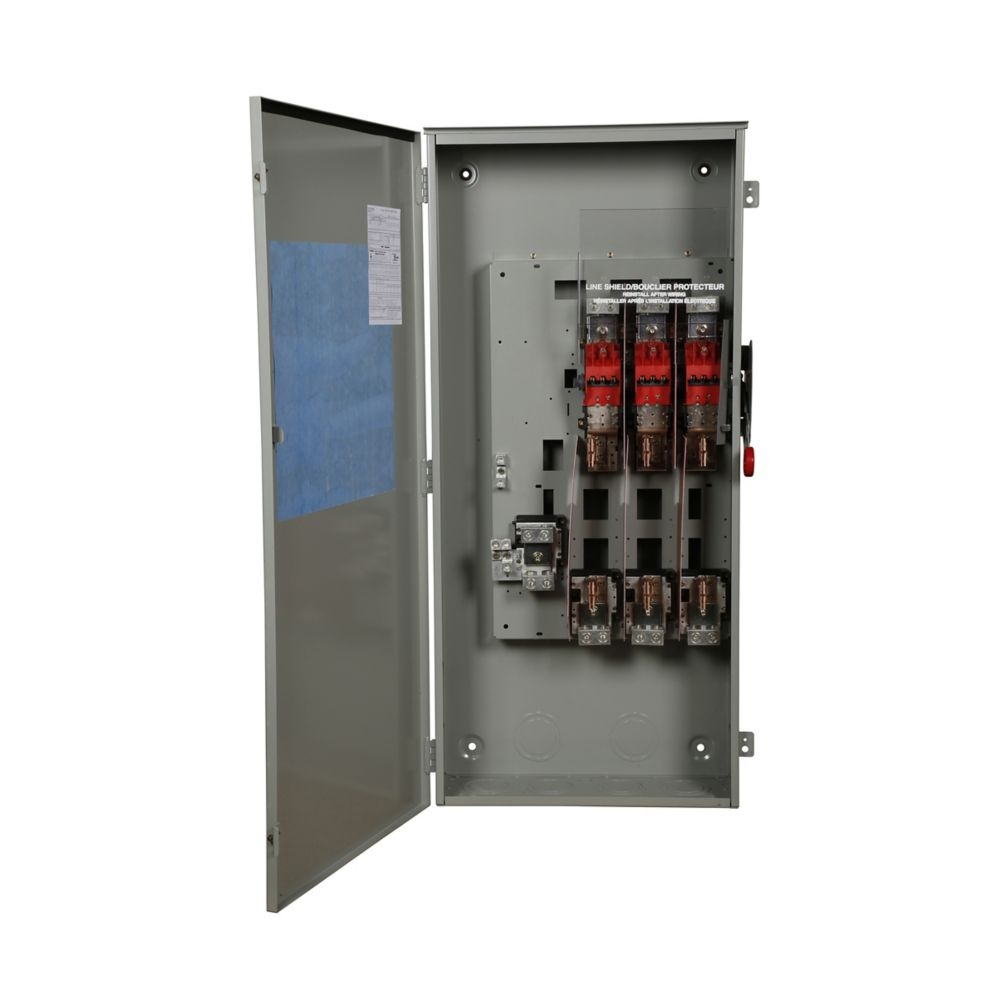

• Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
• Complete accessory and renewal parts data shown on inner door label
• Meets stringent UL 98 standards for safety, durability and reliability
• Accepts class h fuses
• 200 hp at 240 VAC/400 hp at 480 VAC/500 hp at 600 VAC TD 3-phases maximum hp rating

• Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH321FGKJ_User_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_DH366NRK_Specification_Sheet.pdf
• VIDEO LINK https://www.youtube.com/watch?v=WyoWF7Jkxjc
