Eaton offers the industry s most complete line of ACDs. Devices are available in fused, non-fused, molded case switch or three phase designs, and in metal or plastic enclosures for all application. An Air Conditioning Disconnect (ACD) provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit.

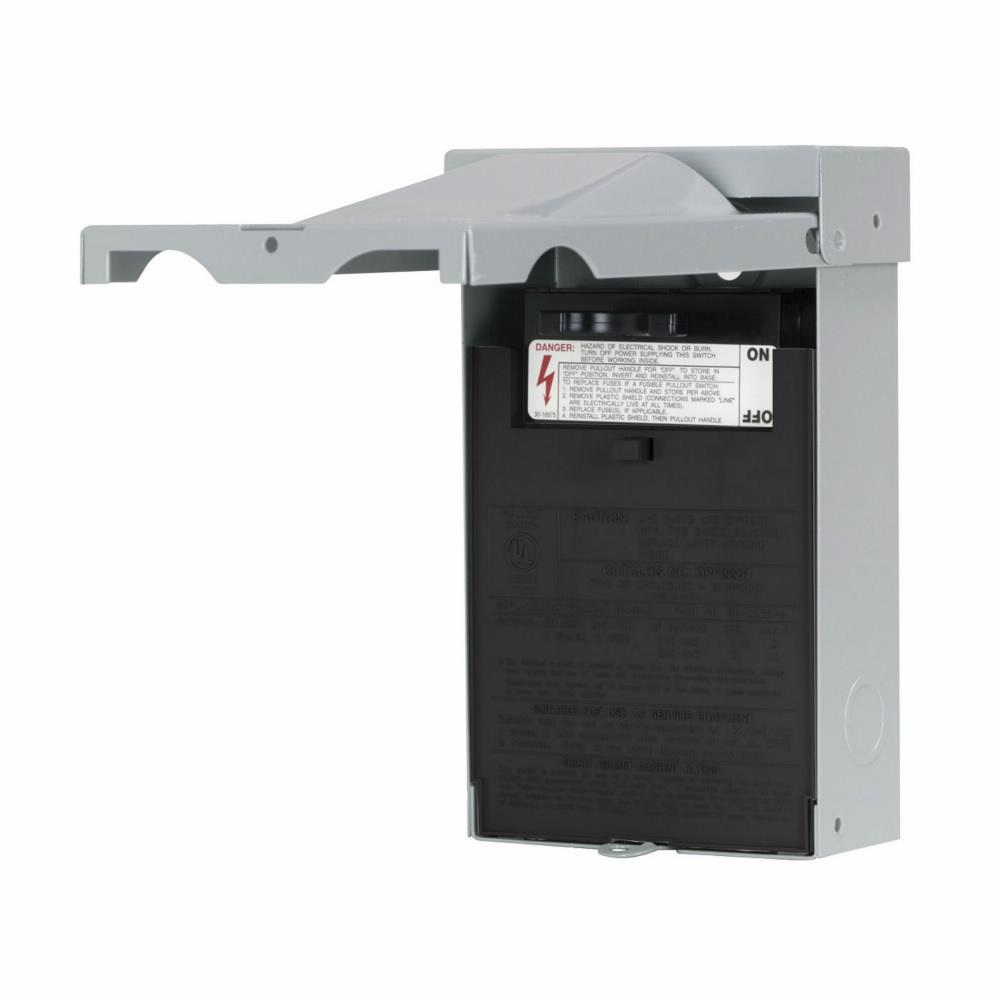

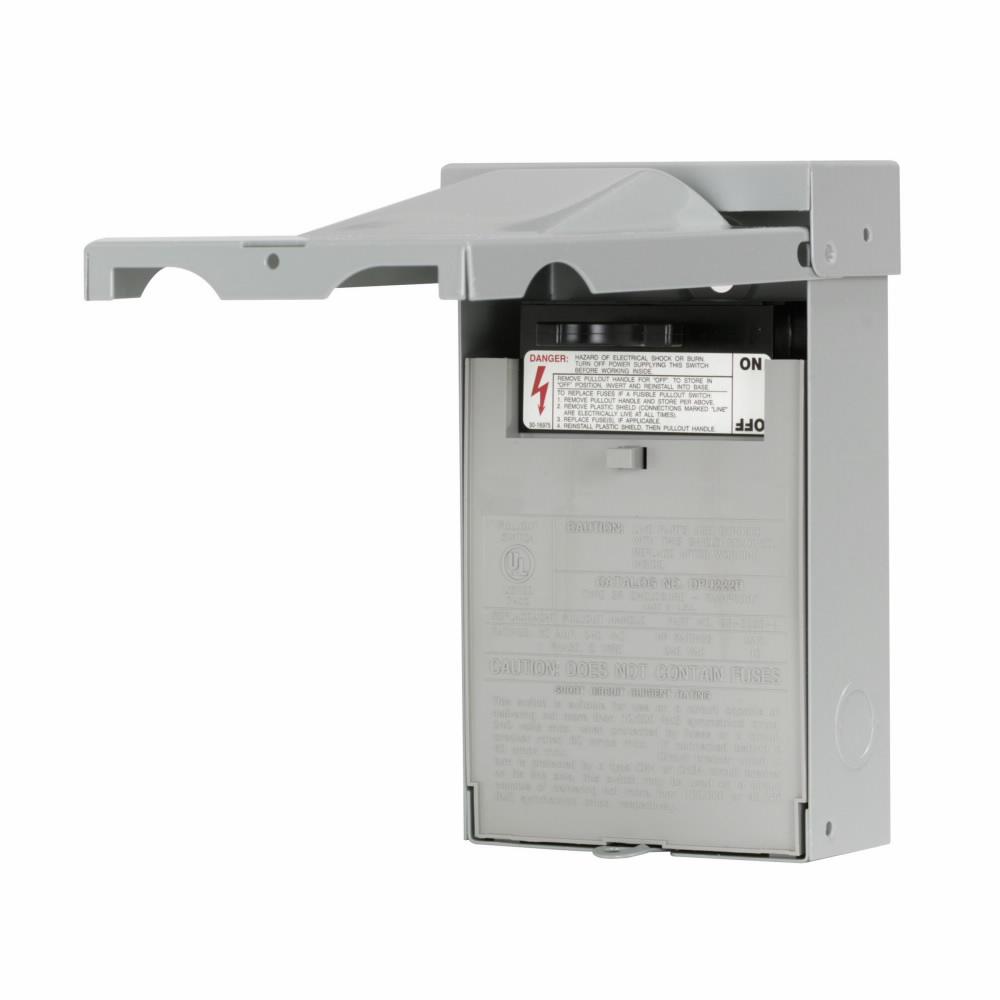

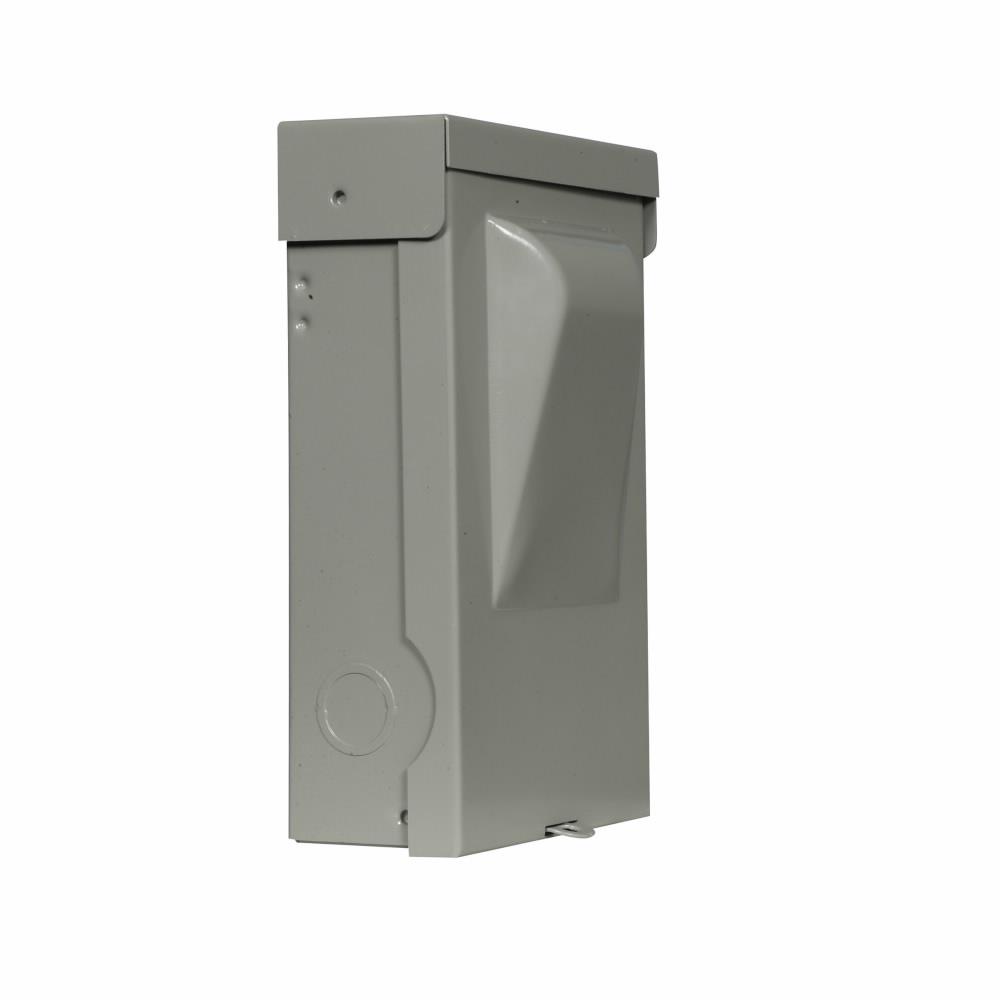

EATON Air Conditioning Disconnect, Non-Fused Pullout, 120/240 VAC, 60 A, 3 hp, 10 hp, 1 ph, 2 Pole, 2 Wires, 10 kA Short Circuit, NEMA 3R Enclosure, 60 to 75 deg C, 5.4 in L x 3.15 in W x 8.7 in H Dimensions, Steel, Gray, Hot Dipped Galvanized
| Color | : | Gray |
| Dimensions | : | 5.4 in L x 3.15 in W x 8.7 in H |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Hot Dipped Galvanized |
| Material | : | Steel |
| Number of Wires | : | 2 |
| Phase | : | 1 |
| Short Circuit Current Rating | : | 10 kA |
| Temperature Rating | : | 60 to 75 deg C |
| Type | : | Non-Fused Pullout |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 60 A |
| Horsepower | : | 3 hp, 10 hp |
| Number of Poles | : | 2 |
- Air conditioning disconnects (ACD) are located between a load center (distribution panel) and an air conditioner
- ACD provide a visible disconnecting means when performing maintenance and are commonly referred to as disconnects, pullouts or air conditioning switches
- ON/OFF control provided by a Pull-out handle
- Pull-out handle can be conveniently stored in the compartment in the Off position, helping to prevent the handle from being misplaced
- Protective shield cannot be removed until the pullout handle is removed, disconnecting the power
- 3 hp at 120 VAC and 10 hp at 240 VAC
- 14 to 3 AWG copper/aluminum wire
