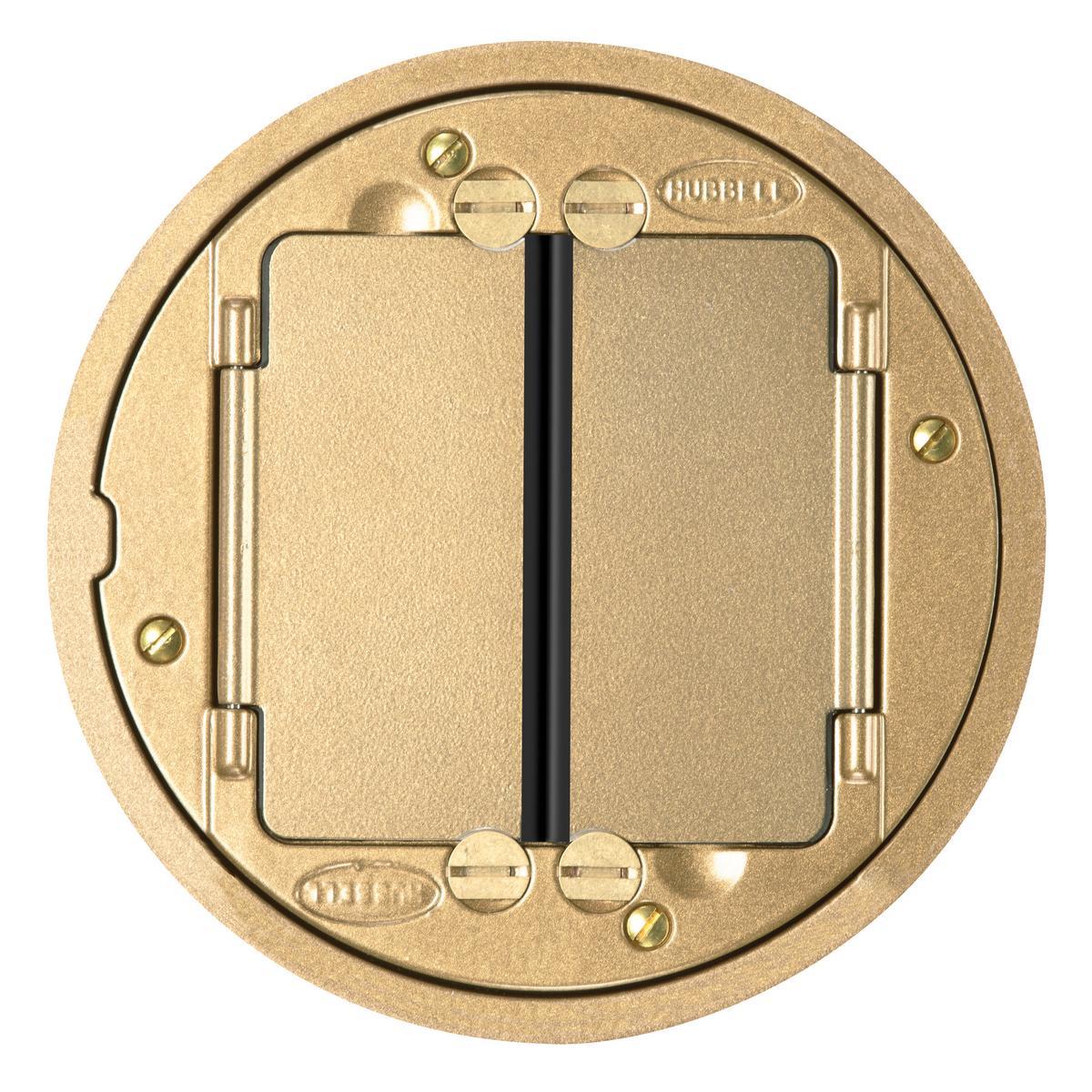

Wiring Device-Kellems S1TFCBRS
Wiring Device-Kellems S1TFCBRS Standard Floor Box Cover, 5-1/2 in Dia, 5-5/8 in L x 5.62 in W x 5/8 in D, Cast Aluminum
- Manufacturer Name: Hubbell
- MPN: S1TFCBRS
- Brand Name: Wiring Device-Kellems
- UPC: 783585371092
- FEPN: S1TFCBRS HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® SystemOne® is an innovative system that provides consumers with the flexibility to create personal solutions for the most demanding multi-service applications for both flush in-floor boxes and fire-rated poke-through. Hubbell® SystemOne® features a unique universal cover assembly and a wide variety of application sub-plates that install on both Hubbell® flush floor boxes and fire-rated poke-through. Now, whatever the application, Hubbell® SystemOne® delivers a consistent, aesthetic and functional solution for applications in-the-floor or through-the-floor for power, voice, data and AV requirements.
Wiring Device-Kellems, S1TFCBRS, Floor Box Cover, Standard, 2 Gangs, 5-1/2 in Diameter, 5-5/8 in Length, 5.62 in Width, 5/8 in Depth, 0.1 in Thickness, Round Shape, Threaded Mounting, 300 lb Capacity, Cast Aluminum, Brushed Brass
| Capacity | : | 300 lb |
| Color | : | Brass |
| Finish | : | Brushed Brass |
| Mounting Type | : | Threaded |
| Number of Gangs | : | 2 |
| Shape | : | Round |
| Thickness | : | 0.1 in |
| Type | : | Standard |
| Diameter | : | 5-1/2 in |
| Length | : | 5-5/8 in |
| Width | : | 5.62 in |
| Depth | : | 5/8 in |
| Material | : | Cast Aluminum |
- Universal carpet or tile flange can be used for Hubbell® SystemOne® metal and non-metallic floor box as well as SystemOne® fire rated poke through
- Used with S1 series floor boxes and S1 series fire rated poke through systems
- Fabricated construction
- Without knockouts
- Oversized hinged doors rotate 180 deg flush with carpet flange or tile
- Carpet flange features raised hinged door supports
- Over molded access doors prevent dirt and debris from entering power and communication compartments
- Security screws allow each door to be opened and secured independently
Line Drawing
