Panduit® PV6-14RX-X

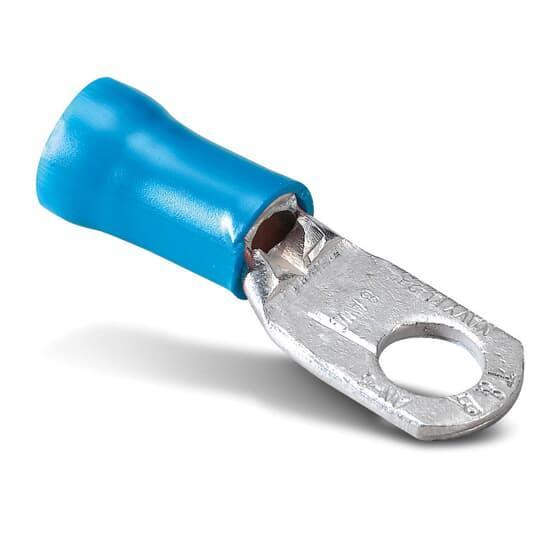

Panduit® Pan-Term® PV6-14RX-X Type PV-RX Loose Piece Ring Terminal, 6 AWG Conductor, 1.61 in L, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration/Insulation Grip Sleeve Barrel, Copper, Blue
- Manufacturer Name: Panduit
- MPN: PV6-14RX-X
- Brand Name: Panduit®
- UPC: 074983124459
- FEPN: PV6-14RX-X PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term® Ring Terminal, Type PV-RX Loose Piece, Stranded Conductor, 6 AWG Conductor, 1/4 in Stud, 1.61 in Length, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration/Insulation Grip Sleeve Barrel, Ring Tongue, 0.47 in W x 0.045 in THK Tongue, 600 VAC, 0.43 in Clearance, 0.43 in Mounting Hole Size, 0.436 in Dia Vinyl Insulation, 7/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
| Conductor Type | : | Stranded |
| Finish | : | Tin Plated |
| Specifications | : | 0.43 in Clearance, 0.43 in Mounting Hole Size, 0.436 in Dia Vinyl Insulation, 7/16 in L Wire Strip, Ring Shape Enclosure |
| Stud Size | : | 1/4 in |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.47 in W x 0.045 in THK |
| Tongue Type | : | Ring |
| Type | : | Type PV-RX Loose Piece |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 6 AWG |
| Length | : | 1.61 in |
| Barrel Type | : | Brazed Seam/Expanded Entry/Insulation Support/Internal Serration/Insulation Grip Sleeve |
| Material | : | Copper |
| Color | : | Blue |
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
