Panduit® LCAX2-38-E

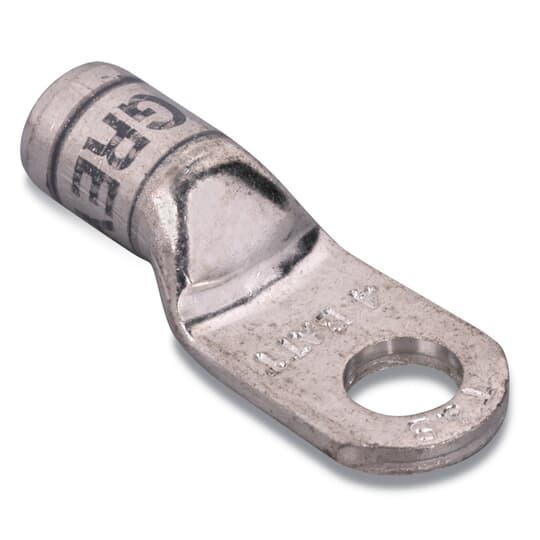

Panduit® Pan-Lug™ LCAX2-38-E 1-Hole Compression Lug Connector With Inspection Window, 2 AWG Flexible Copper Conductor, Die Code: P33, 3/8 in Stud, Tin Plated Copper
- Manufacturer Name: Panduit
- MPN: LCAX2-38-E
- Brand Name: Panduit®
- UPC: 074983442676
- FEPN: LCAX2-38-E PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Lug™ Compression Lug Connector, 1-Hole, Series: LCAX, Flexible Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 3/8 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 1.7 in Overall Length, Standard/Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.59 in L Barrel, Specifications: 11/16 in L Wire Strip, Tin Plated, 90 deg C, 11/16 in Mounting Hole, Tin Plated Copper, Brown
| Barrel Size | : | 0.36 in ID x 0.47 in OD x 0.59 in L |
| Barrel Type | : | Standard/Inspection Window |
| Color | : | Brown |
| Mounting Hole Size | : | 11/16 in |
| Overall Length | : | 1.7 in |
| Series | : | LCAX |
| Specifications | : | 11/16 in L Wire Strip, Tin Plated |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 0.7 in W x 0.11 in THK |
| Tongue Type | : | Straight |
| Type | : | 1-Hole |
| Voltage Rating | : | 35 kV |
| Conductor Size | : | 2 AWG |
| Conductor Type | : | Flexible Copper |
| Die Code | : | P33 |
| Stud Size | : | 3/8 in |
| Material | : | Tin Plated Copper |
- Color-coded bands for proper die selection and crimp placement
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Tin-plated to inhibit corrosion
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
Full Engineering Drawing
