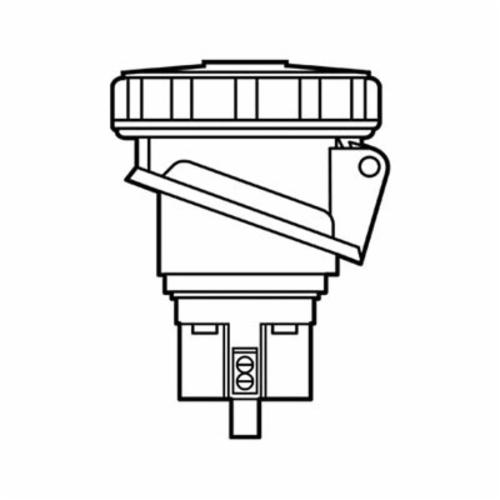

Pass & Seymour® PS430R9W
Pass & Seymour® PS430R9-W 3-Phase Watertight Pin and Sleeve Receptacle, 250 VAC, 30 A, 3 Poles, 4 Wires, Black
- Manufacturer Name: Legrand
- MPN: PS430R9W
- Brand Name: Pass & Seymour®
- UPC: 785007621242
- FEPN: PS430R9-W PS
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Pass & Seymour® Pin and Sleeve Receptacle, 3-Phase Watertight, 250 VAC, 30 A, 60/400 Hz, 3 Pole, 4 Wires, NEMA 4X, Commercial Grade, IP67 Enclosure, -50 to 80 deg C, Screw Terminal, Thermoplastic/Nylon, Black, 7.3 in
| Dimensions | : | 7.3 in |
| Enclosure | : | IP67 |
| Frequency Rating | : | 60/400 Hz |
| Grade | : | Commercial |
| Material | : | Thermoplastic/Nylon |
| NEMA Rating | : | NEMA 4X |
| Temperature Rating | : | -50 to 80 deg C |
| Terminal Type | : | Screw |
| Type | : | 3-Phase Watertight |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black |
- An exclusive, hinged cord-grip eliminates loose parts that get lost
- 3000 VAC maximum dielectric voltage withstand voltage
- Stainless steel cover spring, neoprene mounting and sealing gasket, polyamide 6 contact carrier, brass sleeves, zinc plated steel terminal screws material
- 30 deg C temperature rise
- Nylon construction for high impact, combination head screws, rating compliance visible
- Legrand Pin and Sleeve products provide installation ease, enduring performance in harsh conditions
- Arrives ready to wire, with cord grip open and cable-ready
- Terminal screws come backed out and ready to wire
- Front and back body require no disassembly prior to assembly
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated
- Natural-rubber grommets provide watertight protection at cable entry
- Combination-head screws for added convenience and quick installation
- Revolutionary, hinged cord grip for durable performance and ease of installation
