Wiring Device-Kellems HBL5269C
Send Print
  1. pin-int

Wiring Device-Kellems HBL5269C

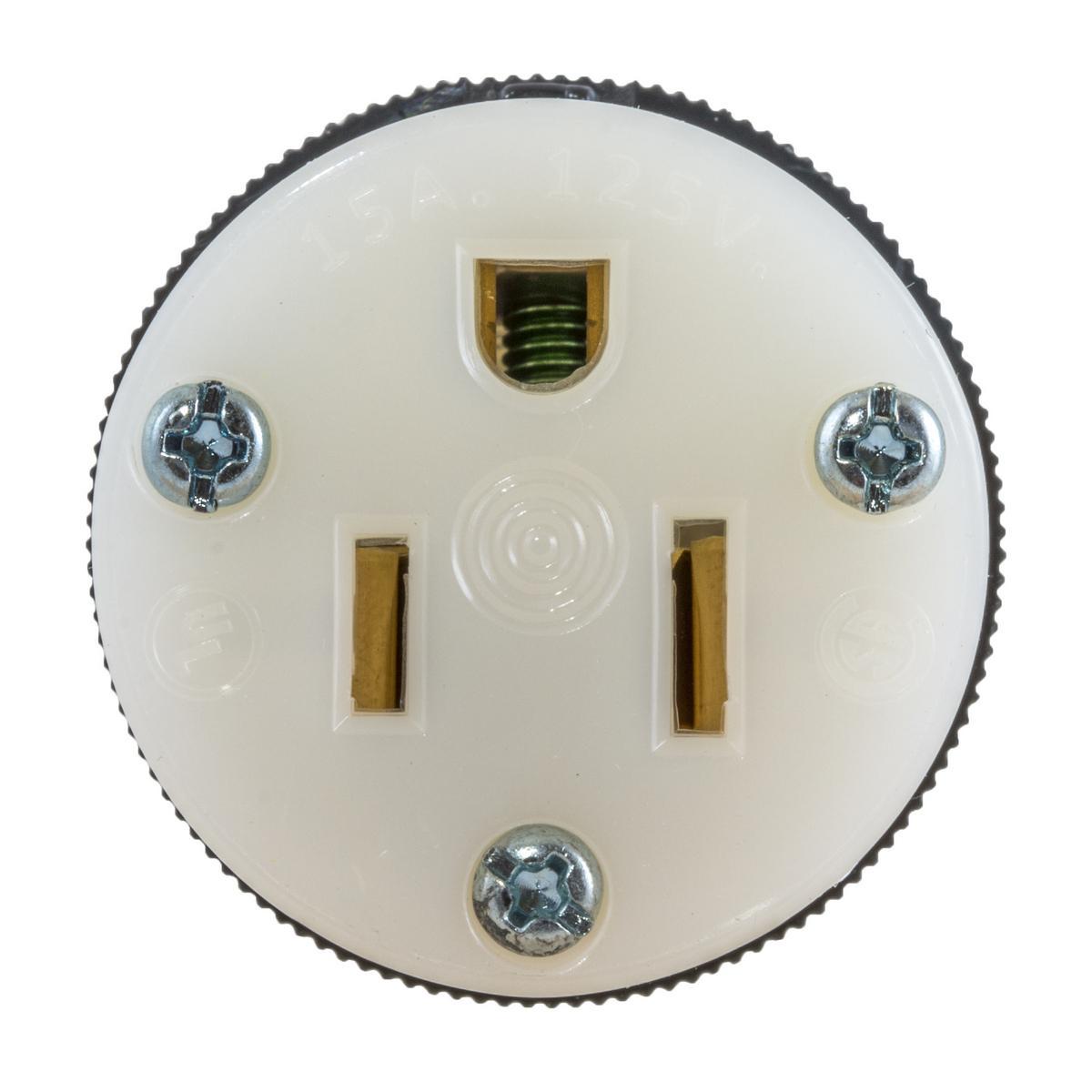

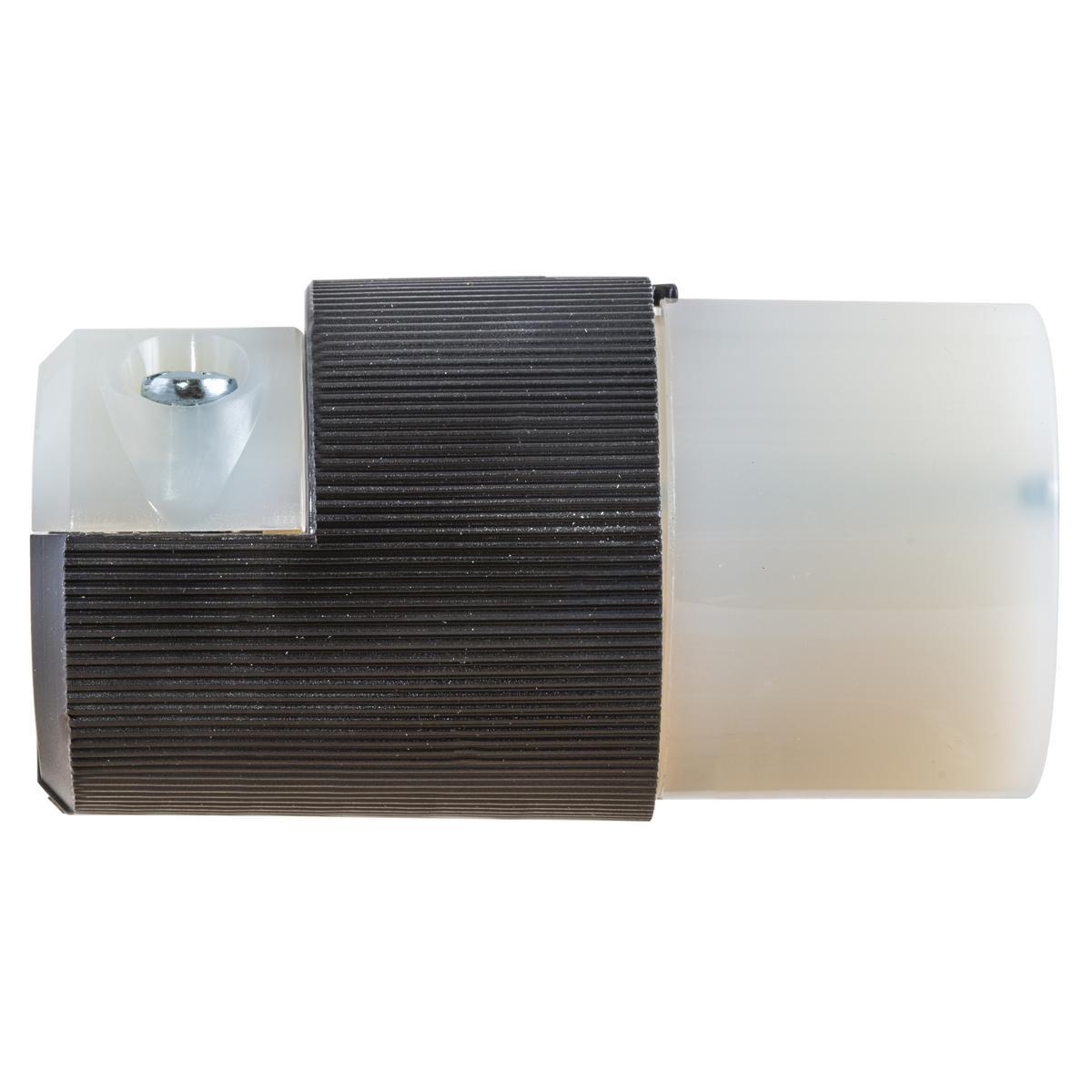

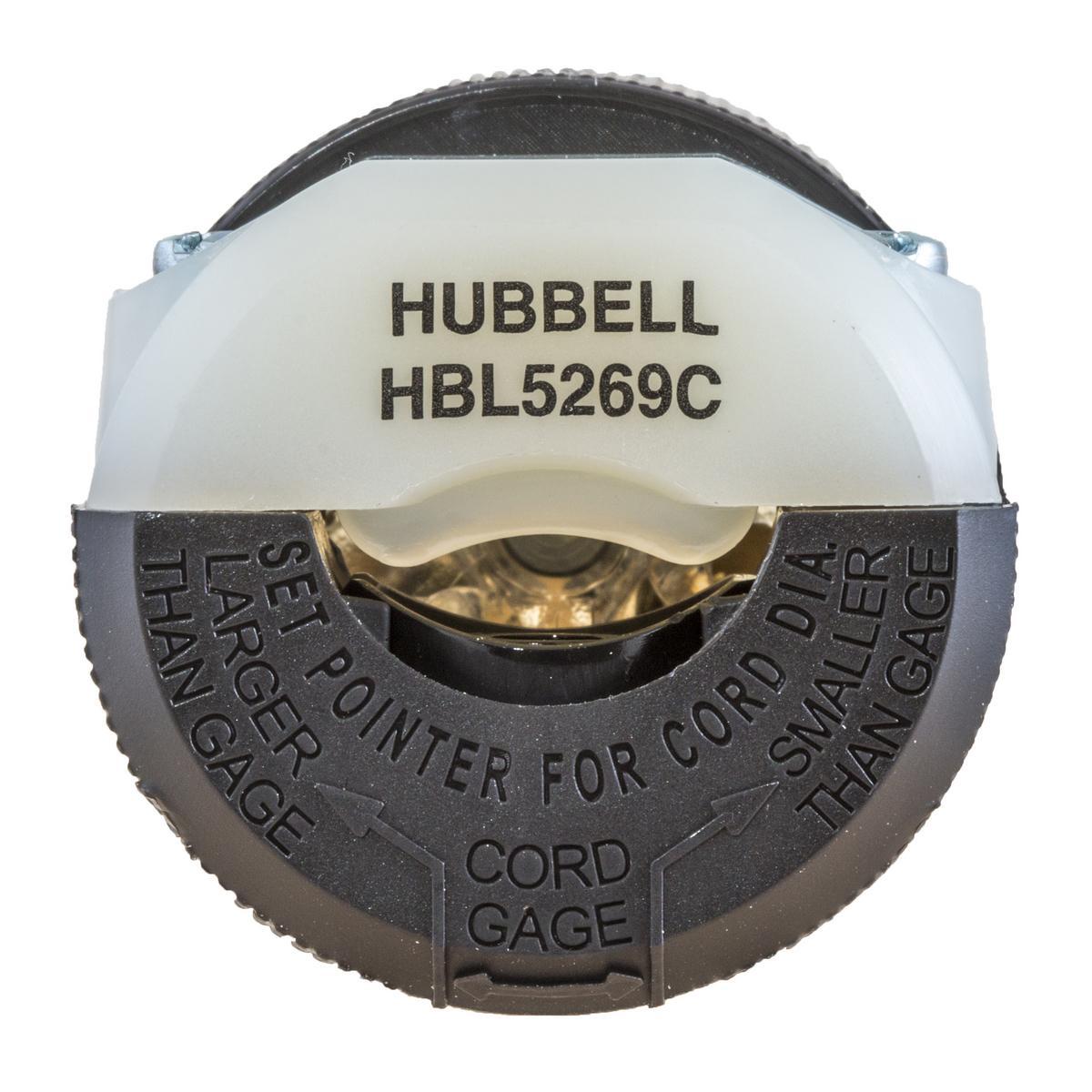

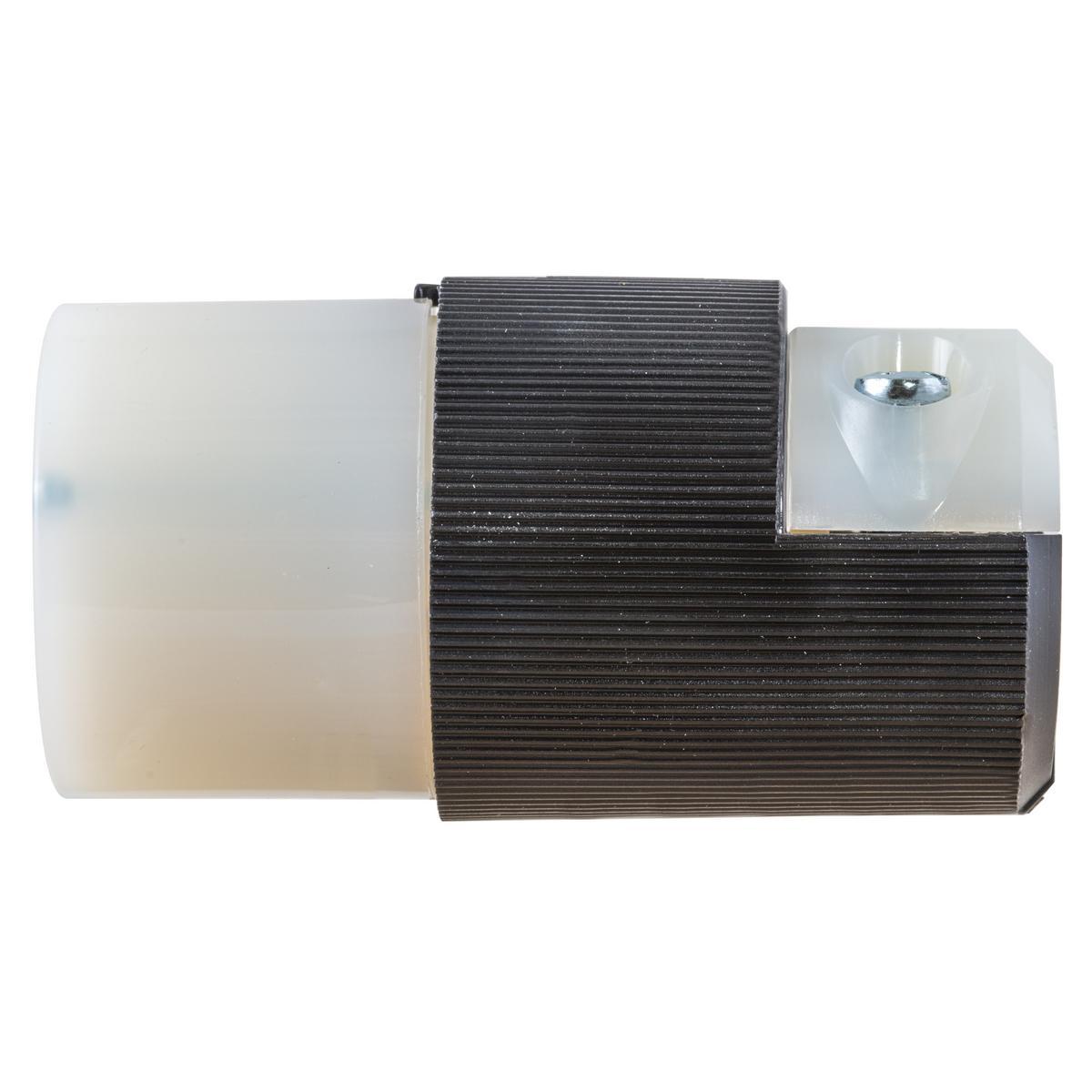

Wiring Device-Kellems Insulgrip® HBL5269C Heavy Duty Straight Cord Mount Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

  • Manufacturer Name: Hubbell
  • MPN: HBL5269C
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585173252
  • FEPN: HBL5269C HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems Insulgrip® Blade Connector, Heavy Duty Straight Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 2.65 x 1.55 x 2.65 in

Cord Diameter       :      0.23 to 0.72 in
Dimensions       :      2.65 x 1.55 x 2.65 in
Enclosure       :      IP20
Grade       :      Commercial/Industrial
Horsepower       :      1/2 hp
Material       :      Polycarbonate
NEMA Rating       :      5-15R
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Screw
Type       :      Heavy Duty Straight Cord Mount
Voltage Rating       :      125 VAC
Amperage Rating       :      15 A
Number of Poles       :      2
Number of Wires       :      3
Color       :      Black/White
  • Individual wiring terminals completely enclosed
  • Powerful, off setting cord grips clamp on individual conductors
  • Fast lead assembly screws
  • Beveled housing prevents snagging
  • Clear polycarbonate terminal retainer material
  • Nylon natural cord clamp material, contact holder material
  • Brass terminal screw material, ground screw material
  • 18 AWG to 10 AWG stranded copper wire only terminal accommodation
  • Withstands 2000 VAC minimum dielectric voltage
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1d66f9ea52a63068ea879b170d9c425c16013280e356290a85ccdadecfb0405d.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_26d5576564818b1629c4d41d00004e96b871352a0a62cb15338755332a8a176e.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d3c9a0c1bc5d93571e4956939c9cbd6b8f62995a834decdb3b4573787d966320.pdf
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_HBL5269C_Full_Engineering_Drawing.pdf
  • linkVIDEO LINK https://youtu.be/1DnPJu3QNw0
