Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

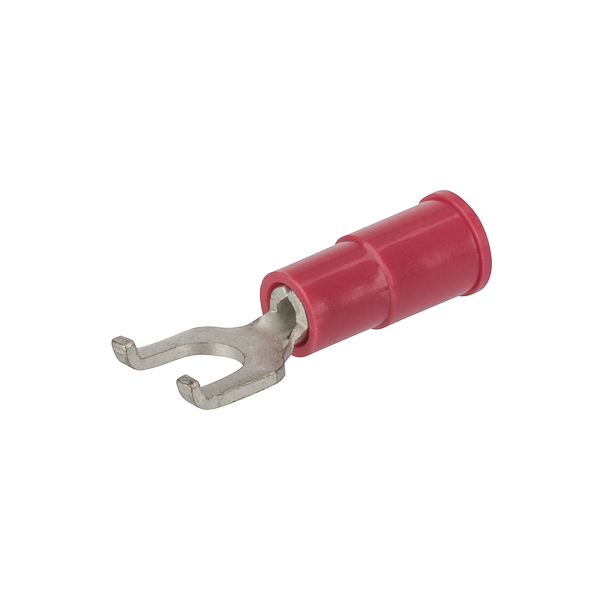

Panduit® Pan-Term® Fork Terminal, Loose Piece, Series: PV-FF, Copper Stranded Conductor, #16 Conductor, #8 Stud, 0.94 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Tongue, 0.31 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red

• Fork design provides for fast and easy installations, without the need to remove fastener
• Internal barrel serrations assure good wire contact and maximum tensile strength
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Brazed seam protects terminal barrel from splitting during the crimp process
• Barrel of terminal internally beveled to provide quick and easy wire insertion
• Flanges make re-securing a loose terminal easier
• The flanges on the end of the fork terminal aid in preventing a slightly loose terminal from becoming fully disconnected from the screw
• For Y10D, Y10-22 plier and MRE1022NV MR8-89-1 ratcheting installations tooling

• Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panduit_PV18-8FF-CY_Full_Engineering_Drawing_CA.pdf
