EATON's line-of single position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

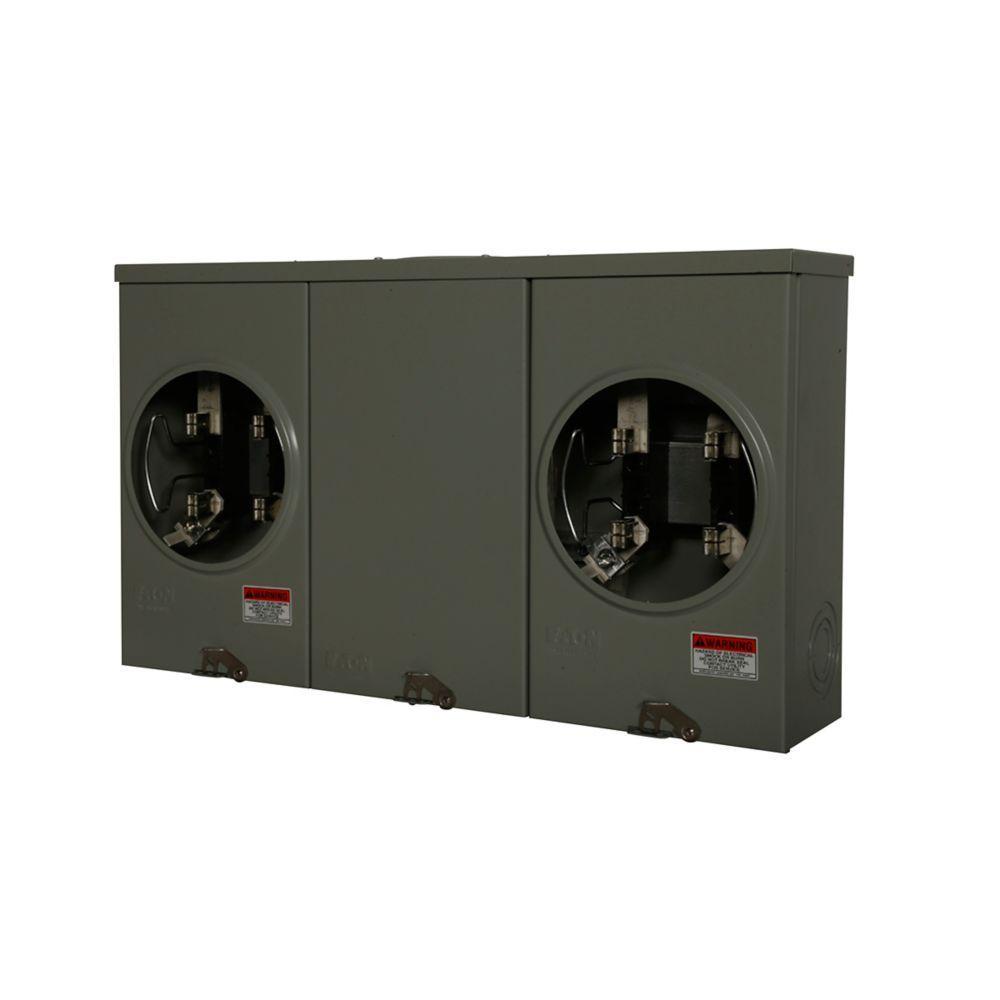

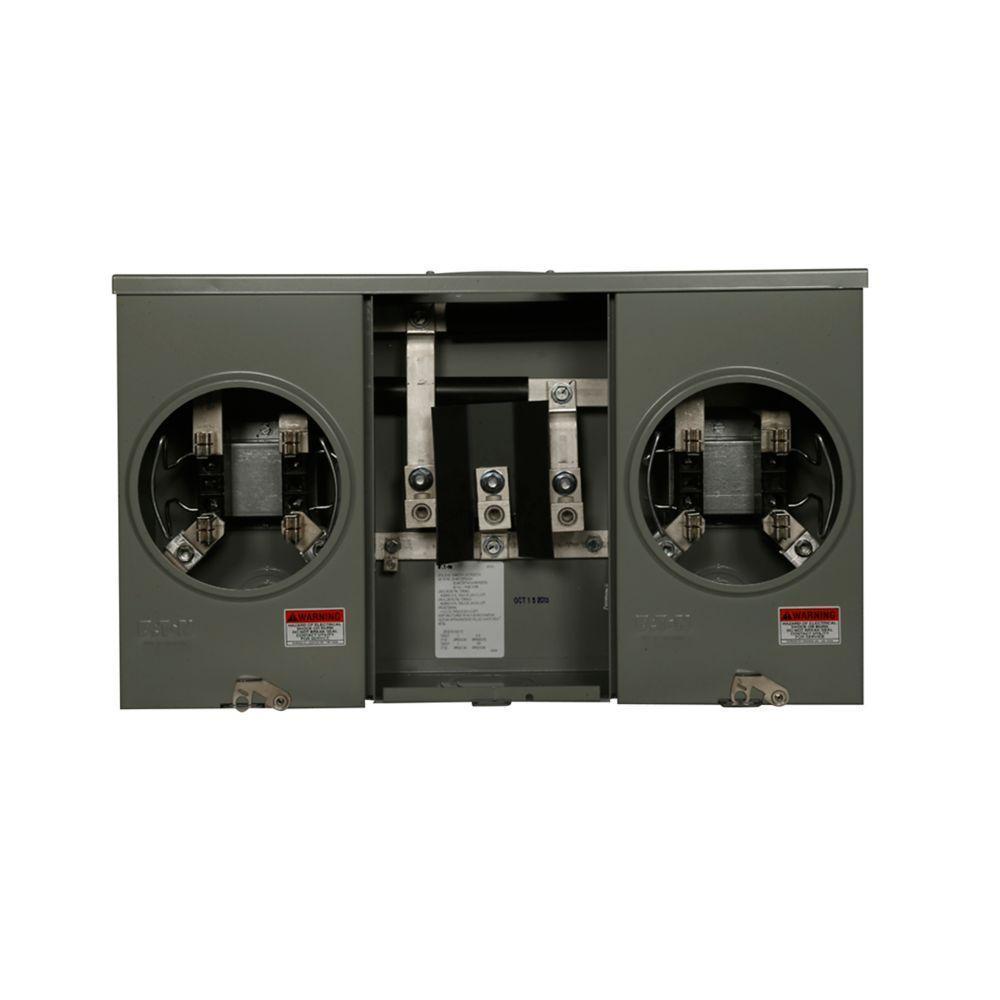

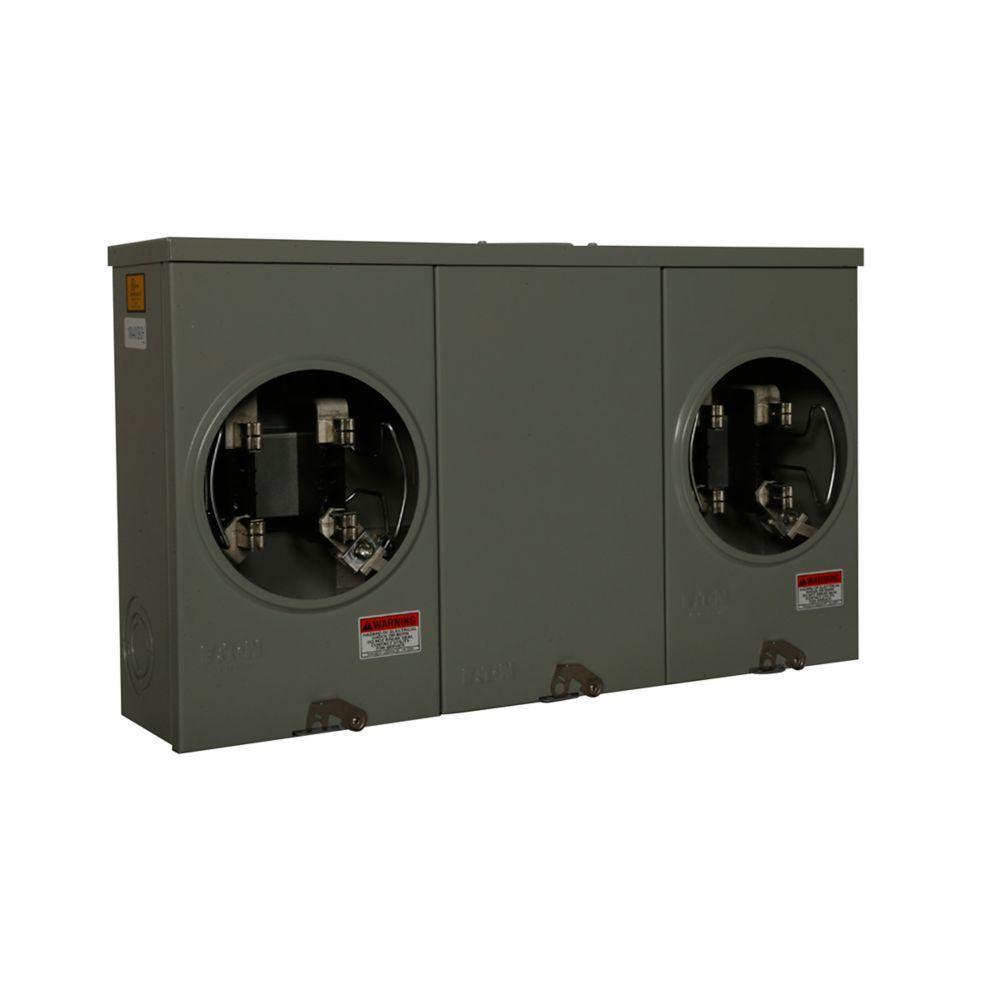

EATON Meter Socket, 2-Position 3-Wire Horizontal Ganged Horn Bypass, 600 VAC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 4 Jaws, 8 AWG to 250 kcmil, 6 AWG to 350 kcmil Wire, Coverplate, 5 x 5 in Hub, Ring Cover, Line/Load Terminal, 5.38 in L x 24.31 in W x 14.13 in H
| Cover Type | : | Ring |
| Dimensions | : | 5.38 in L x 24.31 in W x 14.13 in H |
| Feed Type | : | Bottom/Overhead/Top/Underground |
| Hub Size | : | 5 x 5 in |
| Hub Type | : | Coverplate |
| Number of Jaws | : | 4 |
| Terminal Type | : | Line/Load |
| Type | : | 2-Position 3-Wire Horizontal Ganged Horn Bypass |
| Wire Size | : | 8 AWG to 250 kcmil, 6 AWG to 350 kcmil |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 200 A |
| Phase | : | 1 |
- Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
- One-piece, die-run enclosure eliminates tampering and extends product life
- High visibility EATON name embossed on cover
- Knockouts are installer friendly, labor savings, less time needed for removing knockouts
- Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
- Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
- Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
- One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
- 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
- Rating up to 200 kA interrupt rating with specified overcurrent protection devices
- Provides a complete EATON residential solution
- Copper plated alloy jaws with reinforcing spring
- Steel reinforcing springs used in all socket jaws to maintain electrical connections
Technical Bulletin
