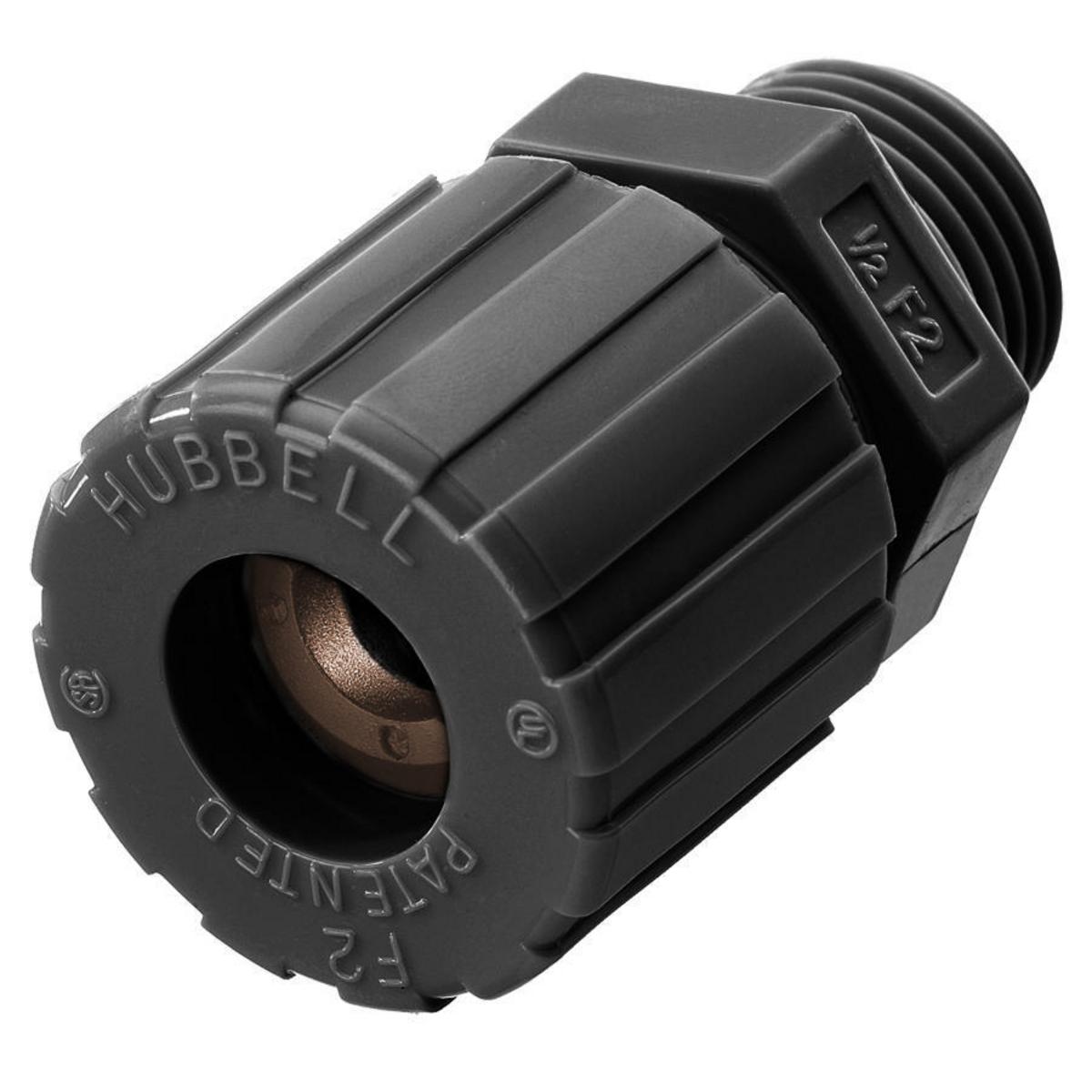

Wiring Device-Kellems SHC2036CR
Wiring Device-Kellems SHC2036CR SHC Form 3 Standard Straight Cord Connector, 3/4 in Trade, (1) Conductors, 0.5 to 0.63 in Cable Openings, Nylon, Smooth
- Manufacturer Name: Hubbell
- MPN: SHC2036CR
- Brand Name: Wiring Device-Kellems
- UPC: 783585451701
- FEPN: SHC2036CR HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Hubbell® nylon cord connectors resist most common industrial corrosives and provide highly effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They are available in NPT hub sizes from 1/4 to 1 in.
Wiring Device-Kellems, SHC2036CR, Cord Connector, Form 3 Standard Straight, Series: SHC, 3/4 in Trade, 1 Conductors, Cable Openings: 0.5 to 0.63 in, Jacketed Cable, MNPT Connection, Nylon, Smooth, Black, -30 to 225 deg F, 1.56 in Dia x 2.15 in L Dimensions
| Cable Type | : | Jacketed |
| Color | : | Black |
| Connection Type | : | MNPT |
| Dimensions | : | 1.56 in Dia x 2.15 in L |
| Series | : | SHC |
| Temperature Rating | : | -30 to 225 deg F |
| Type | : | Form 3 Standard Straight |
| Trade Size | : | 3/4 in |
| Number of Conductors | : | 1 |
| Cable Openings | : | 0.5 to 0.63 in |
| Material | : | Nylon |
| Finish | : | Smooth |
- Nylon cord connector resists most common industrial corrosives
- Provides effective pullout protection
- Lightweight design
