Panduit® PN14-38R-L

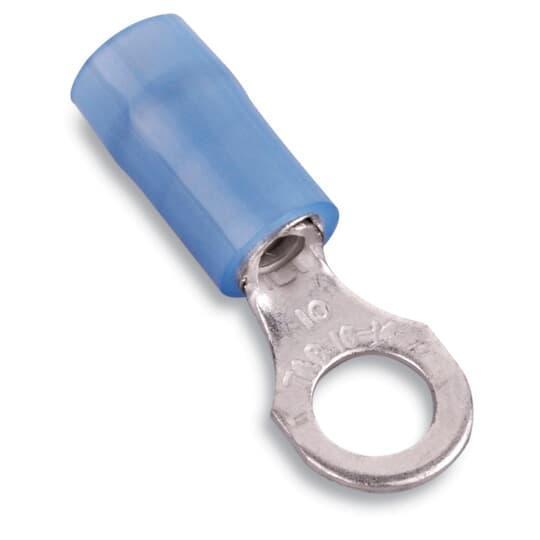

Panduit® Pan-Term™ PN14-38R-L Type PN-R Loose Piece Ring Terminal, 14 AWG Conductor, 1.14 in L, Brazed Seam/Internal Serration/Standard Barrel, Copper, Blue
- Manufacturer Name: Panduit
- MPN: PN14-38R-L
- Brand Name: Panduit®
- UPC: 074983800261
- FEPN: PN14-38R-L PC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Panduit® Pan-Term™ Ring Terminal, Type PN-R Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, 3/8 in Stud, 1.14 in Length, Brazed Seam/Internal Serration/Standard Barrel, Ring Tongue, 0.53 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.43 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
| Conductor Type | : | Solid/Stranded |
| Finish | : | Tin Plated |
| Specifications | : | 0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.43 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure |
| Stud Size | : | 3/8 in |
| Temperature Rating | : | 221 deg F |
| Tongue Size | : | 0.53 in W x 0.03 in THK |
| Tongue Type | : | Ring |
| Type | : | Type PN-R Loose Piece |
| Voltage Rating | : | 600 V |
| Conductor Size | : | 14 AWG |
| Length | : | 1.14 in |
| Barrel Type | : | Brazed Seam/Internal Serration/Standard |
| Material | : | Copper |
| Color | : | Blue |
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
Full Engineering Drawing
