Wiring Device-Kellems NHC1022

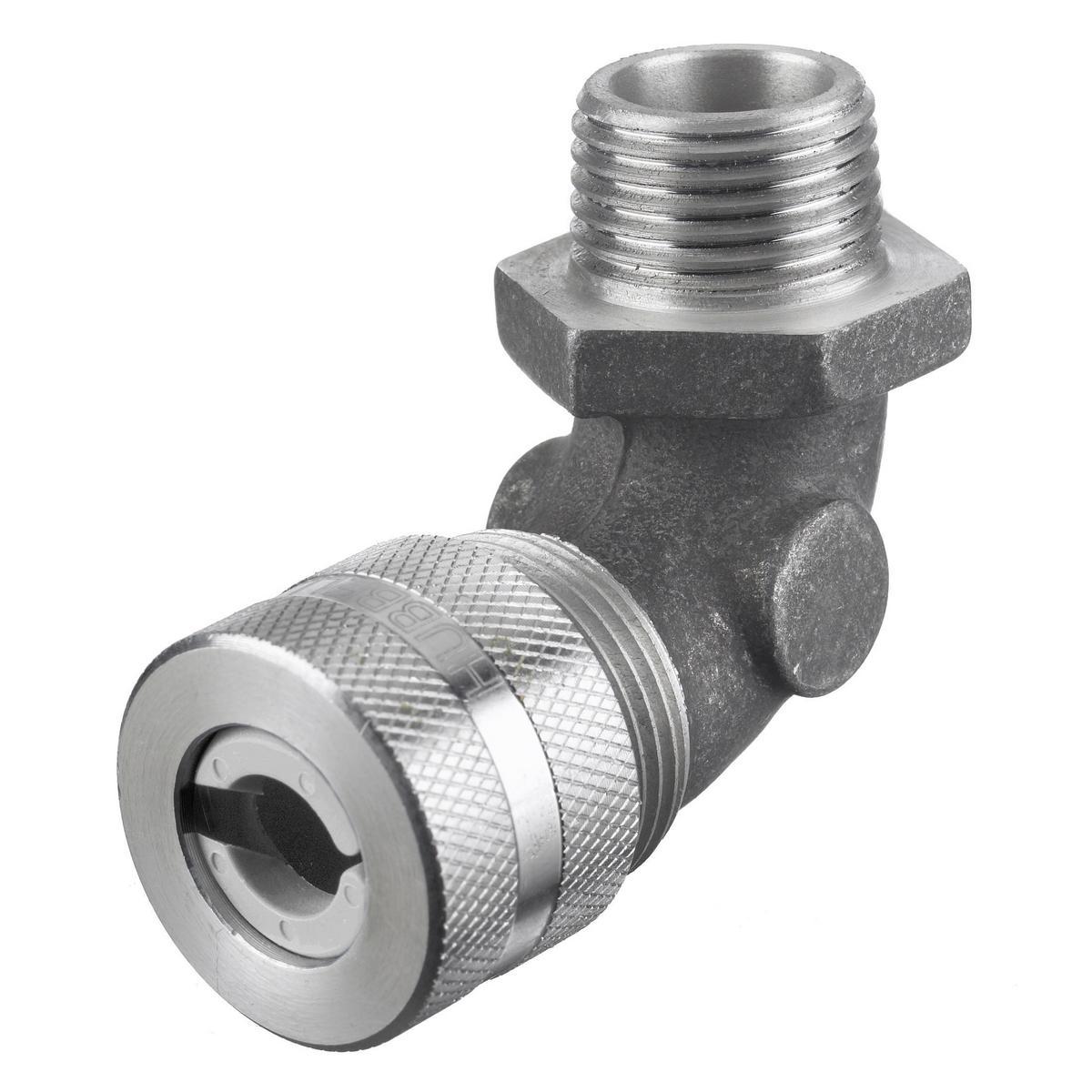

Wiring Device-Kellems NHC1022 NHC 90 deg Form 2 Standard Cord Connector, 1/2 in MNPT Trade, (1) Conductors, 0.25 to 0.38 in Cable Openings, Aluminum, Machined
- Manufacturer Name: Hubbell
- MPN: NHC1022
- Brand Name: Wiring Device-Kellems
- UPC: 783585201221
- FEPN: NHC1022 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel.
Wiring Device-Kellems, NHC1022, Cord Connector, 90 deg Form 2 Standard, Series: NHC, 1/2 in MNPT Trade, 1 Conductors, Cable Openings: 0.25 to 0.38 in, Jacketed Cable, MNPT Connection, Aluminum, Machined, Metallic/White, -30 to 225 deg F, 1.13 in Dia x 2.3 in L Dimensions
| Cable Type | : | Jacketed |
| Color | : | Metallic/White |
| Connection Type | : | MNPT |
| Dimensions | : | 1.13 in Dia x 2.3 in L |
| Series | : | NHC |
| Temperature Rating | : | -30 to 225 deg F |
| Type | : | 90 deg Form 2 Standard |
| Trade Size | : | 1/2 in MNPT |
| Number of Conductors | : | 1 |
| Cable Openings | : | 0.25 to 0.38 in |
| Material | : | Aluminum |
| Finish | : | Machined |
- Lock nuts sold separately
