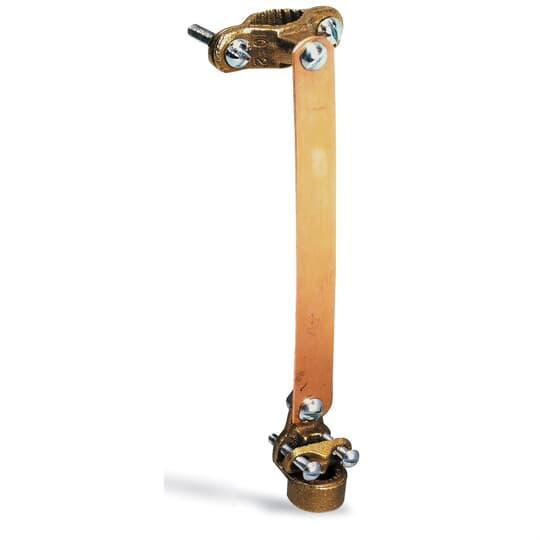

Blackburn® JPS12

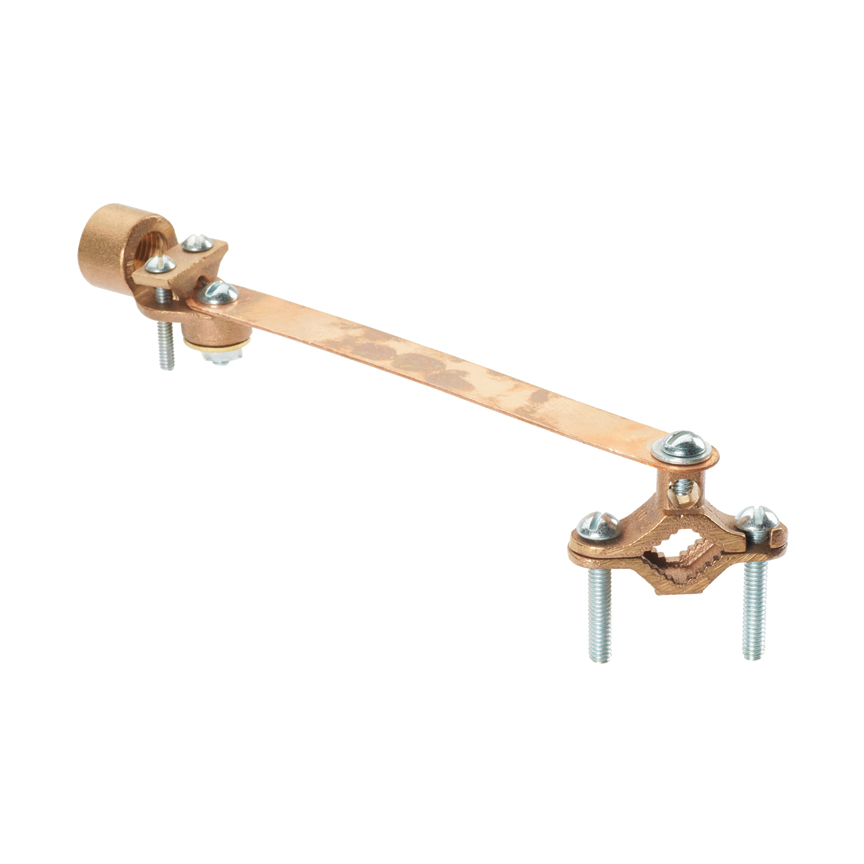

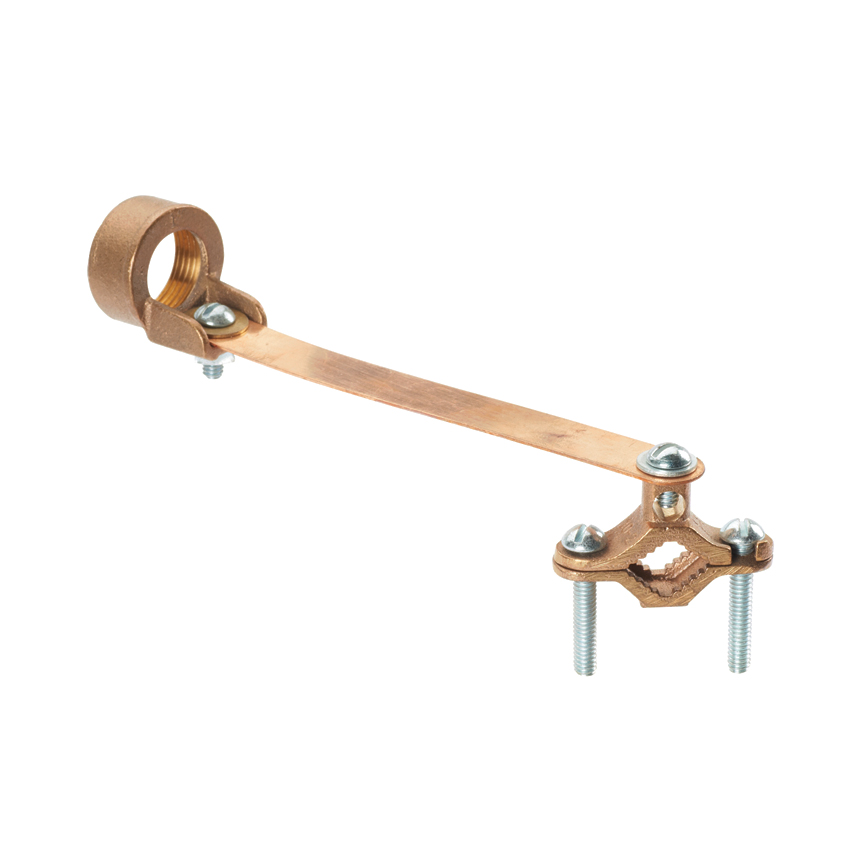

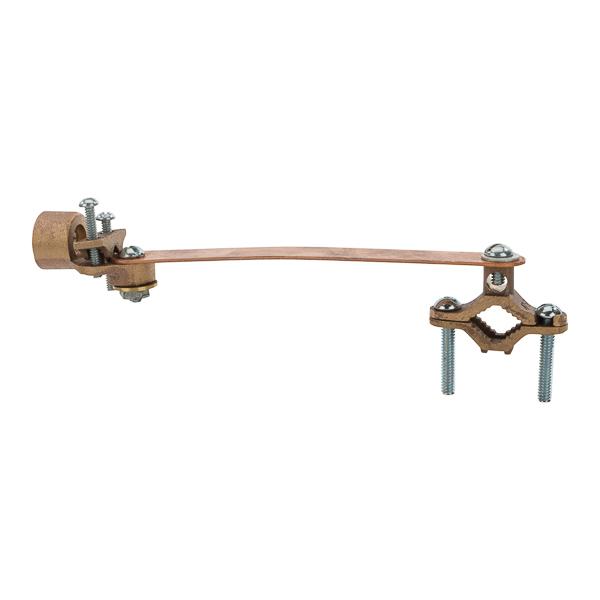

Blackburn® E-Z Ground® JPS12 Non-Insulated Grounding Clamp With Copper Strap, 1/2 in Conduit, 10 to 6 AWG Conductor, Cast Bronze
- Manufacturer Name: ABB
- MPN: JPS12
- Brand Name: Blackburn®
- UPC: 783786801312
- FEPN: JPS12 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® compression, mechanical and exothermic connectors and accessories represent the most comprehensive set of products in the industry for the creation of a safe, code compliant and reliable grounding system.
Blackburn® E-Z Ground® Grounding Clamp, Non-Insulated, 1/2 in Conduit, 1/2 to 1 in Pipe, Solid Conductor, 10 to 6 AWG Conductor, Cast Bronze
| Conductor Type | : | Solid |
| Pipe Size | : | 1/2 to 1 in |
| Type | : | Non-Insulated |
| Conduit Size | : | 1/2 in |
| Conductor Size | : | 10 to 6 AWG |
| Material | : | Cast Bronze |
- Continuity from rigid conduit system to ground provided by cast bronze threaded conduit hub
- Strap helps protect conduit system from water system vibrations
- Same features as JP clamp plus flexible copper strap
Specification Sheet
