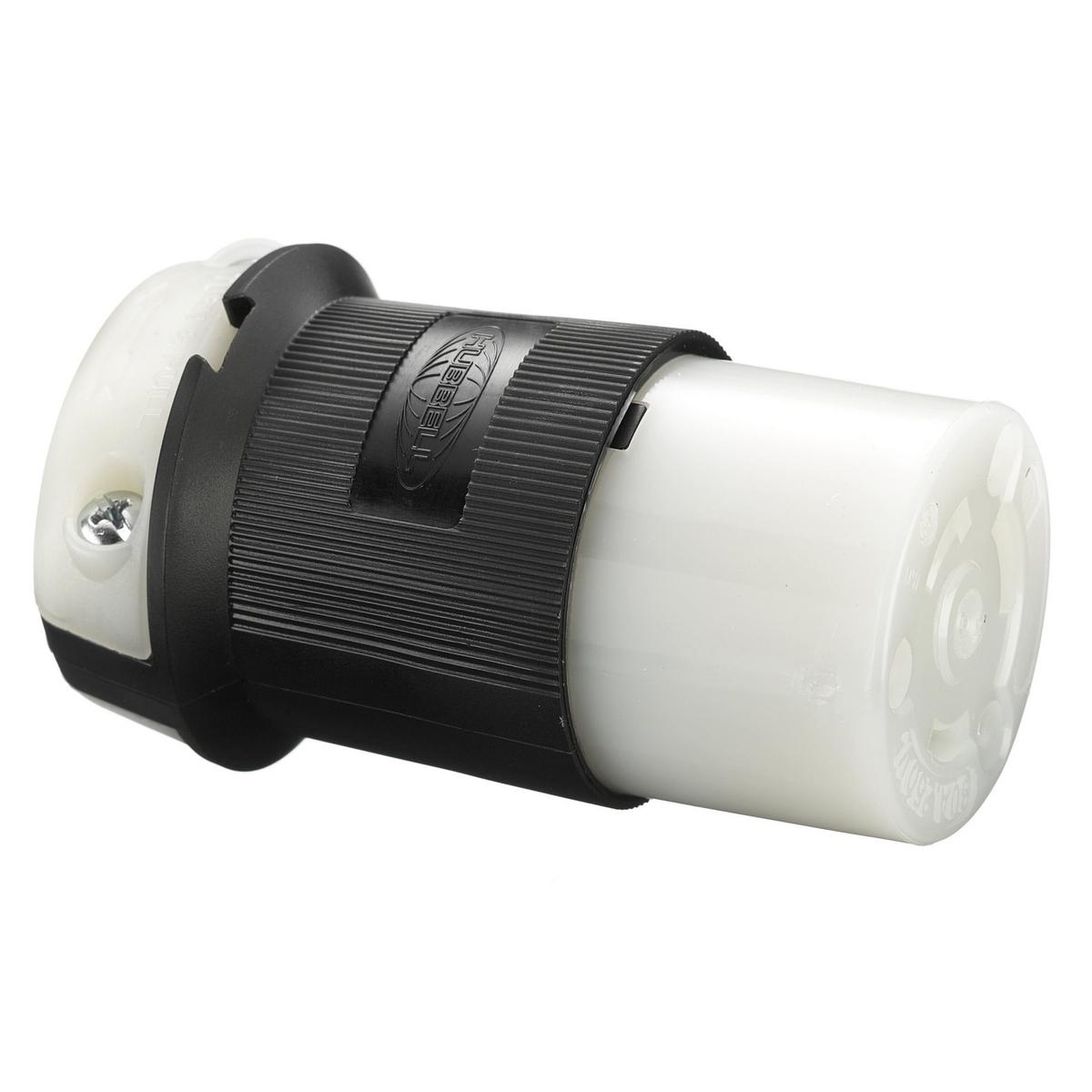

Wiring Device-Kellems HBL2623
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2623 Female Grounding Standard Cord Mount Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2623
- Brand Name: Wiring Device-Kellems
- UPC: 783585038865
- FEPN: HBL2623 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Connector, Female Grounding Standard Cord Mount, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, L6-30R NEMA Rating, 0.36 to 0.93 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Nylon, Black/White, 2.26 x 2.26 x 3.86 in
| Cord Diameter | : | 0.36 to 0.93 in |
| Dimensions | : | 2.26 x 2.26 x 3.86 in |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | L6-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Female Grounding Standard Cord Mount |
| Voltage Rating | : | 250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black/White |
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
