Bussmann 16200-3

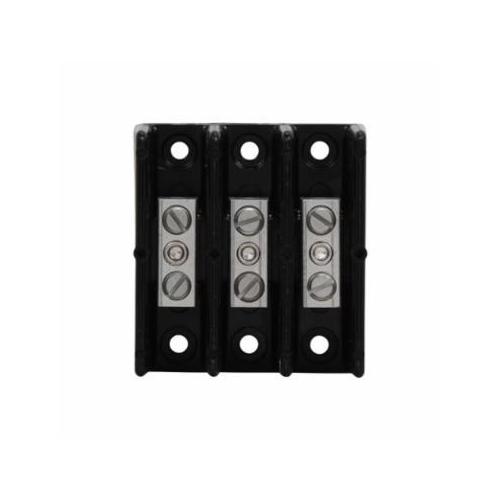

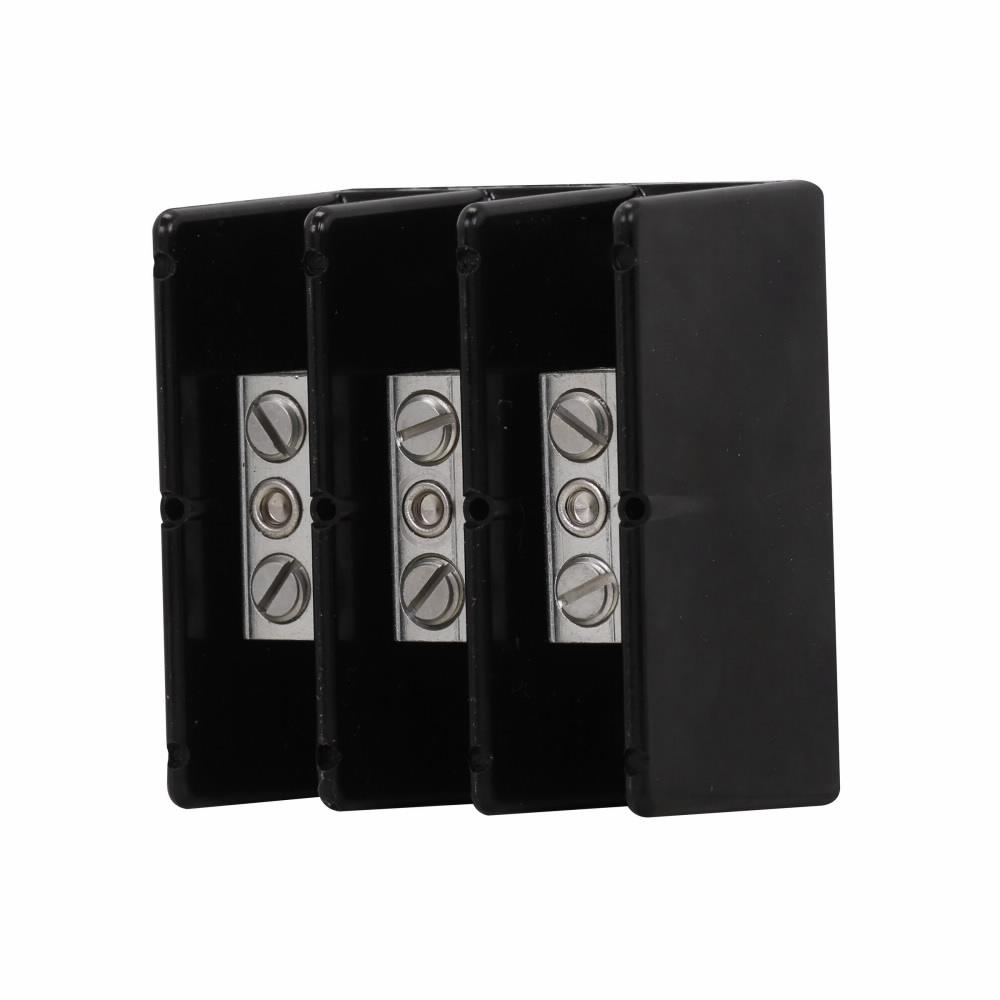

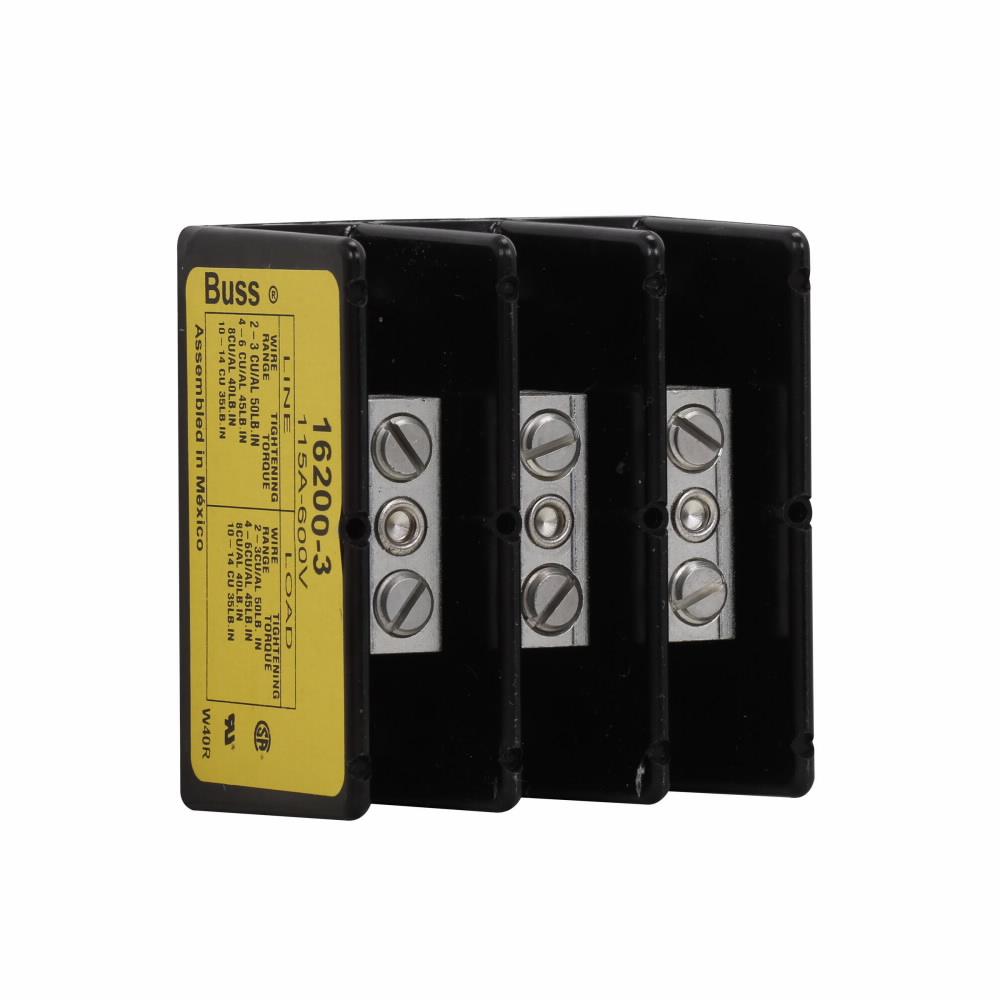

Bussmann 16200-3 Power Splicer Block, 600 VAC/VDC, 115 A, 3 Poles, 14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load Wire, Thermoplastic

  • Manufacturer Name: Eaton
  • MPN: 16200-3
  • Brand Name: Bussmann
  • UPC: 051712149440
  • FEPN: 16200-3 BU
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Bussmann Series UL Recognized power distribution blocks offer a variety of line side and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

Bussmann Power Splicer Block, Series: 162, 600 VAC/VDC, 115 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 2.7 in L x 2.88 in W x 1.75 in H

Color       :      Black
Dimensions       :      2.7 in L x 2.88 in W x 1.75 in H
Primary Connections/Pole       :      1
Secondary Connection/Pole       :      1
Series       :      162
Short Circuit Current Rating       :      10 kA
Type       :      0
Voltage Rating       :      600 VAC/VDC
Amperage Rating       :      115 A
Number of Poles       :      3
Wire Size       :      14 to 2 AWG Cu, 8 to 2 AWG Al Line/Load
Material       :      Thermoplastic
  • 14 to 2 AWG copper, 8 to 2 AWG aluminum line/load connection
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/16200_3_Specification_Sheet.pdf
  • videoVIDEO LINK https://www.youtube.com/watch?v=YMvqUyoETXk
