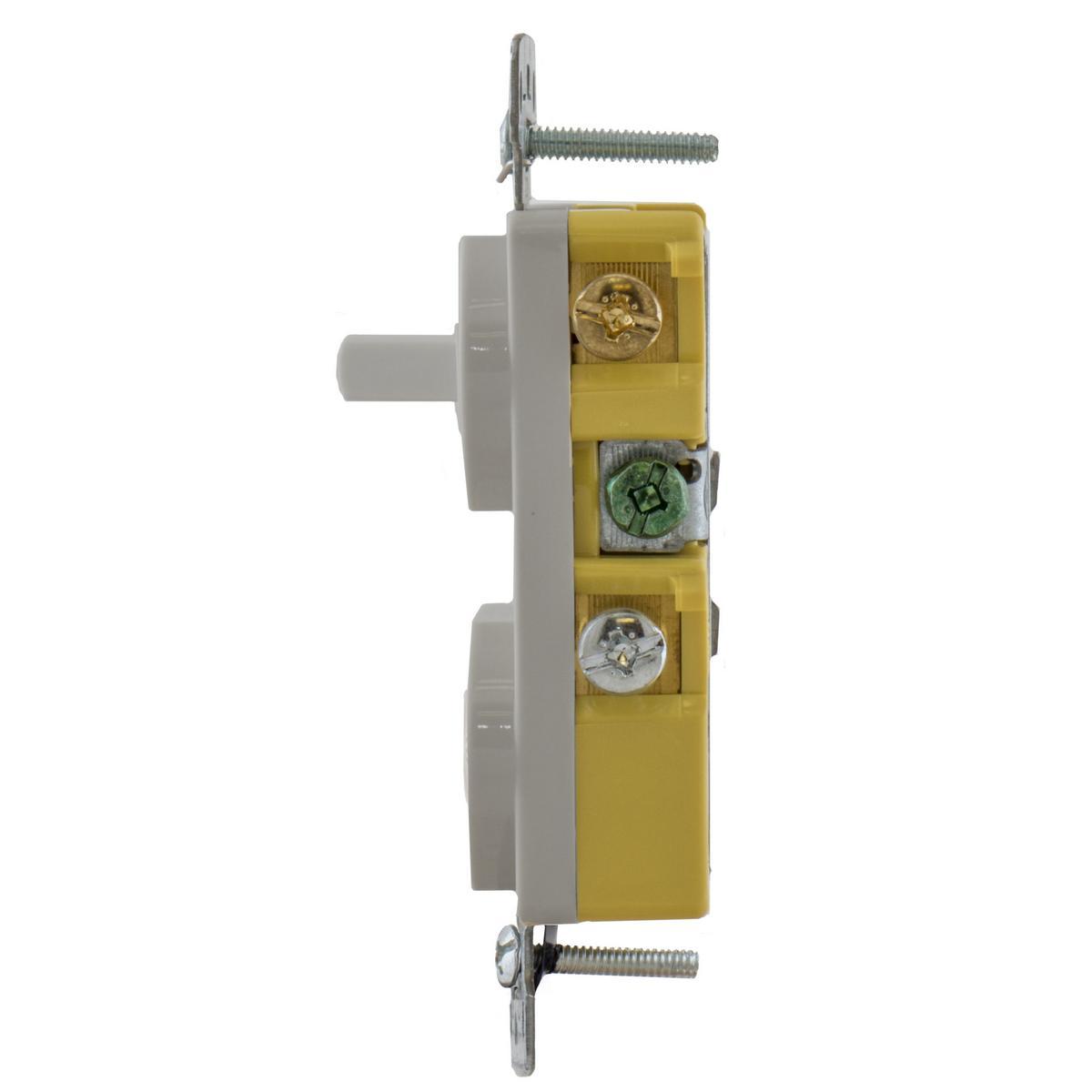

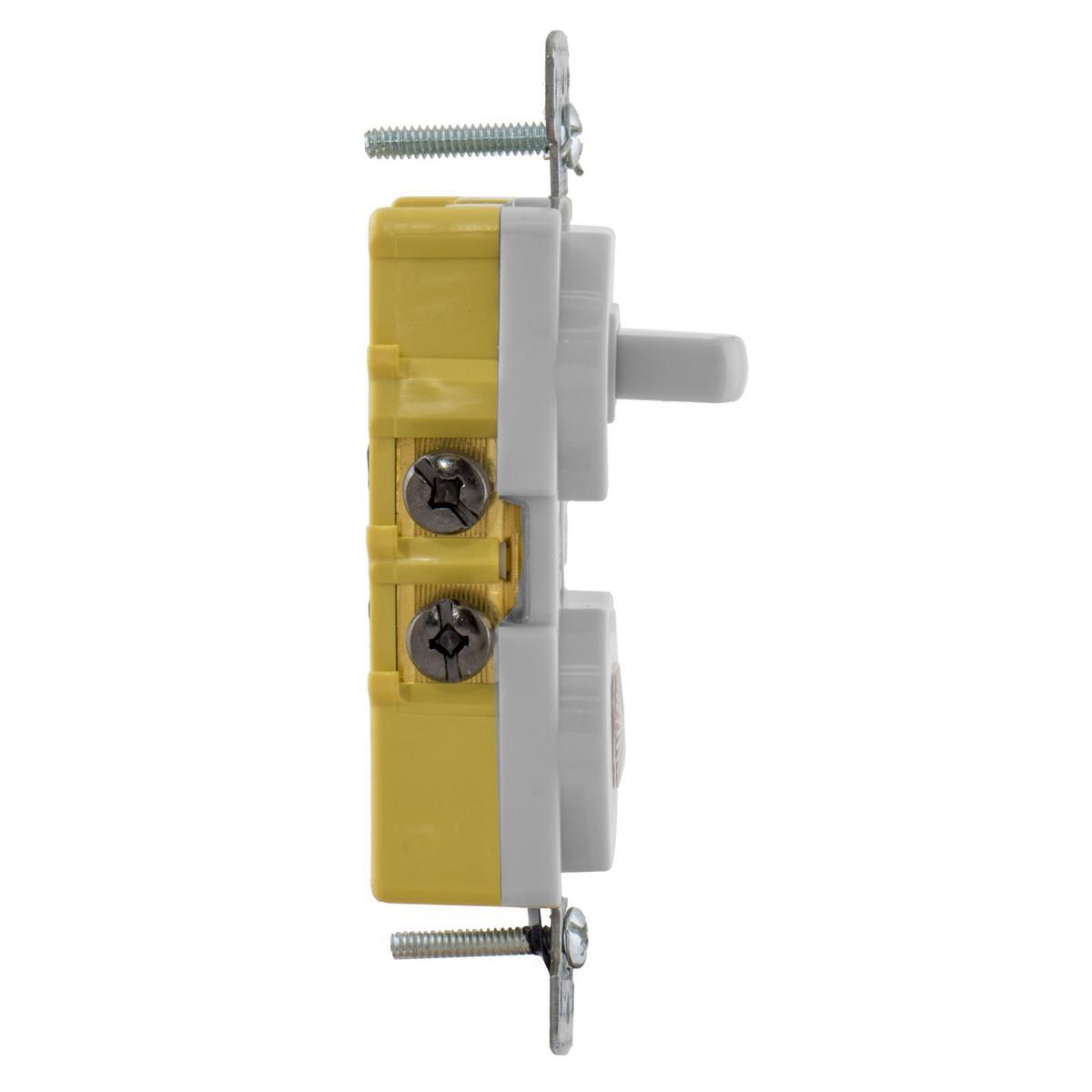

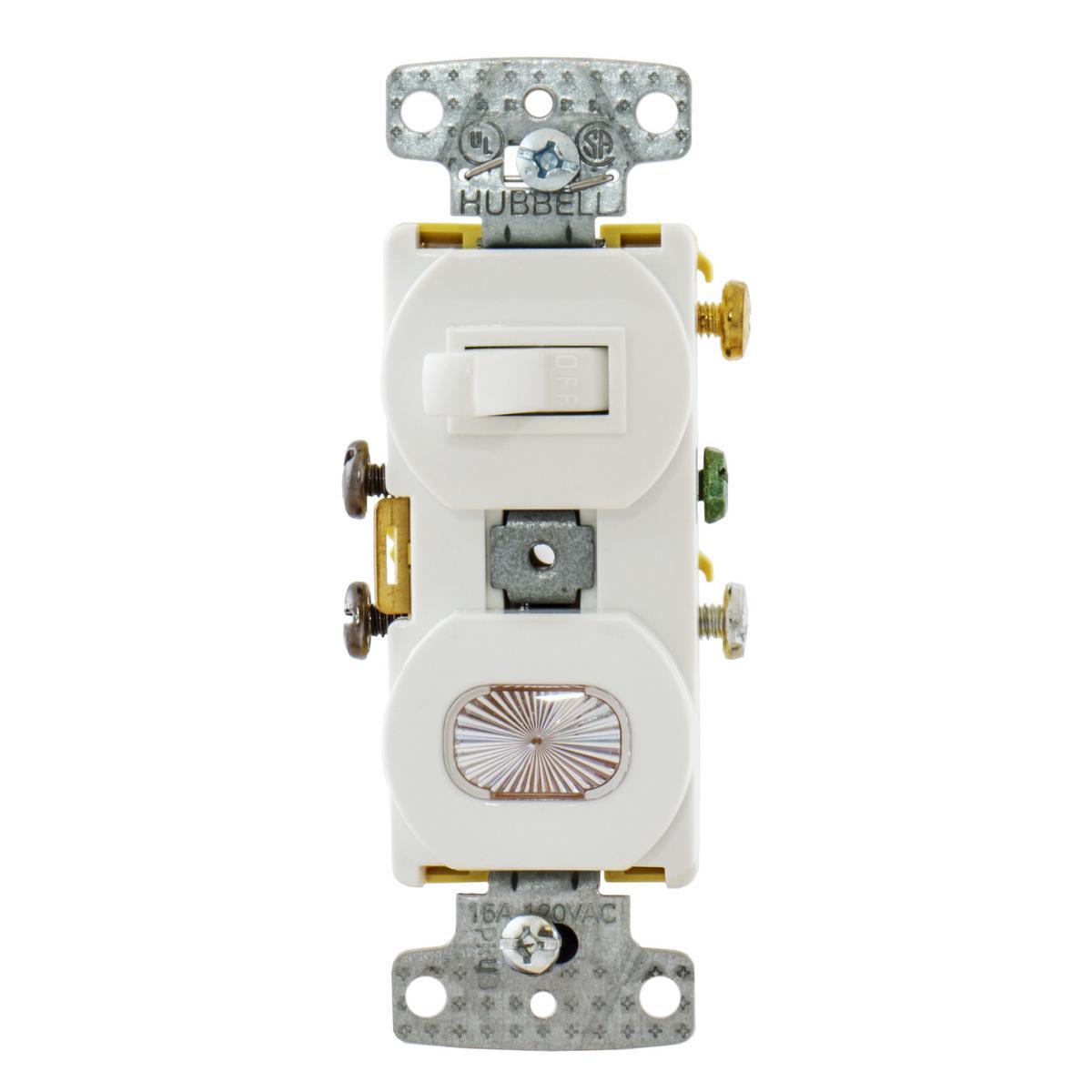

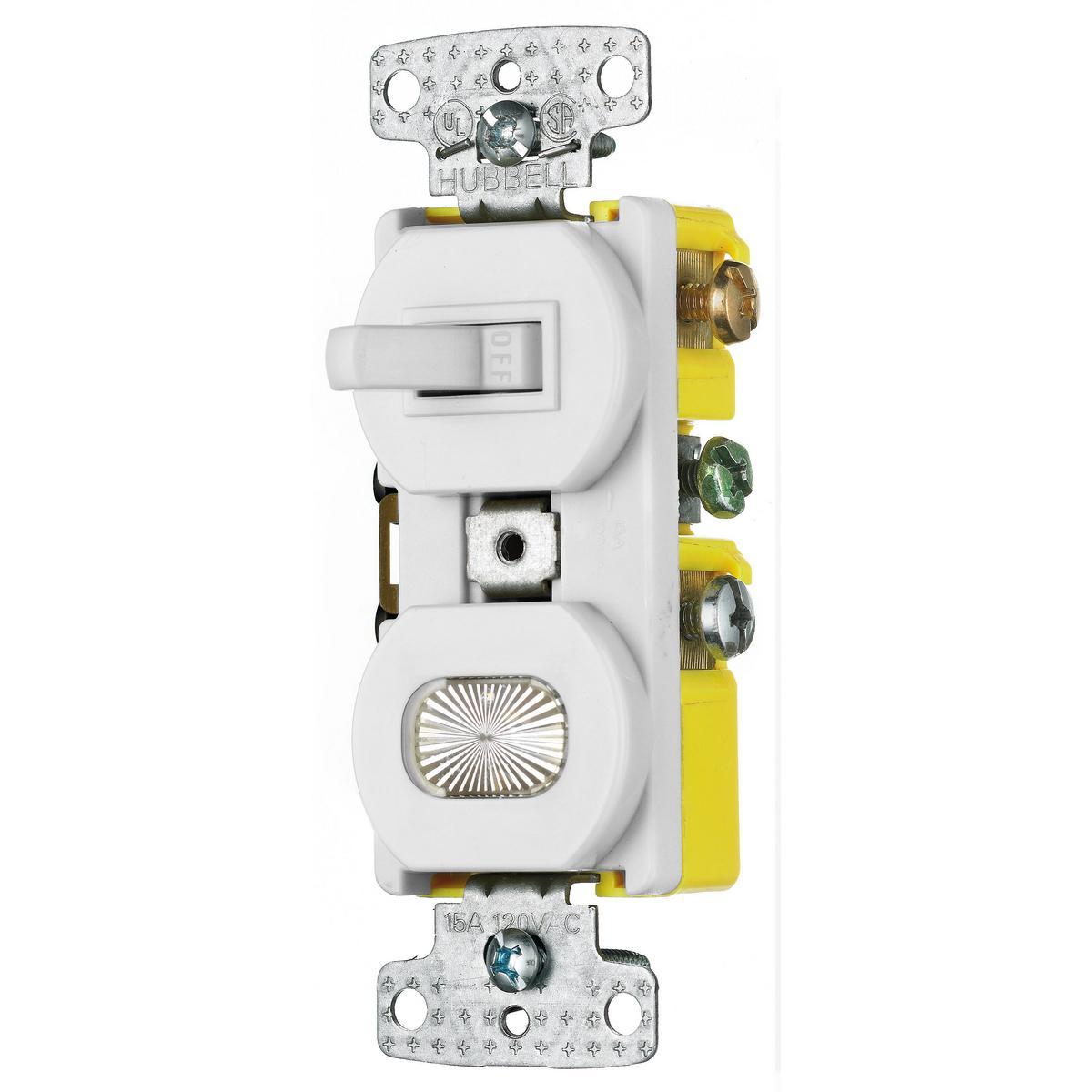

Wiring Device-Kellems RC109W
Wiring Device-Kellems RC109W Standard Sized Combination Toggle Switch, 120 VAC, 15 A, 1800 W
- Manufacturer Name: Hubbell
- MPN: RC109W
- Brand Name: Wiring Device-Kellems
- UPC: 883778110030
- FEPN: RC109W HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, RC109W, Combination Toggle Switch, Standard Sized, 120 VAC, 15 A, 1800 W Wattage, 1 Pole, Amber Neon Pilot Lamp, 2-Position Contact Configuration, 15 A Contact, Snap Action, Threaded Mounting, Side Wire Terminal, -20 to 60 deg C, Composite, White, 1.32 in W x 1.53 in D x 4.2 in H Dimensions
| Action | : | Snap |
| Color | : | White |
| Contact Configuration | : | 2-Position |
| Contact Rating | : | 15 A |
| Dimensions | : | 1.32 in W x 1.53 in D x 4.2 in H |
| Lamp Type | : | Amber Neon Pilot |
| Material | : | Composite |
| Mounting | : | Threaded |
| Number of Poles | : | 1 |
| Temperature Rating | : | -20 to 60 deg C |
| Terminal Type | : | Side Wire |
| Type | : | Standard Sized |
| Voltage Rating | : | 120 VAC |
| Amperage Rating | : | 15 A |
| Wattage | : | 1800 W |
- Quiet snap action mechanism
- Low profile, <1 in D
- Self-grounding feature is standard
- Mini-toggles provide for multiple switches in a compact single gang
- Maximize control while maintaining function and appearance
- Multiple drive slot/Phillips/Robertson head screw
- Hi-visibility yellow base for easy installation
- Zinc plated steel bridge, center fastener and mounting screws
- Brass rocker contacts and terminal
- Plastic base, cover, toggle, spring housing and washers and steel spring
- Elongated strap with continuous plaster ears
