Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

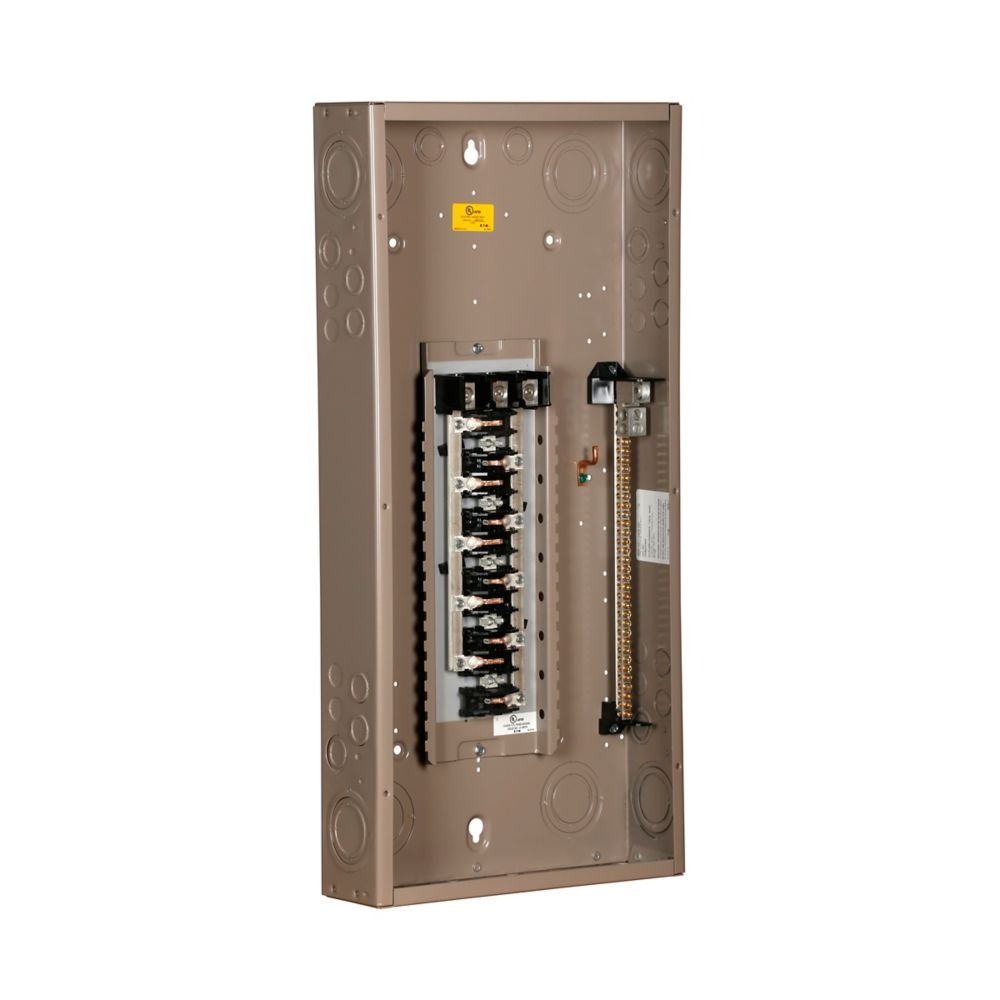

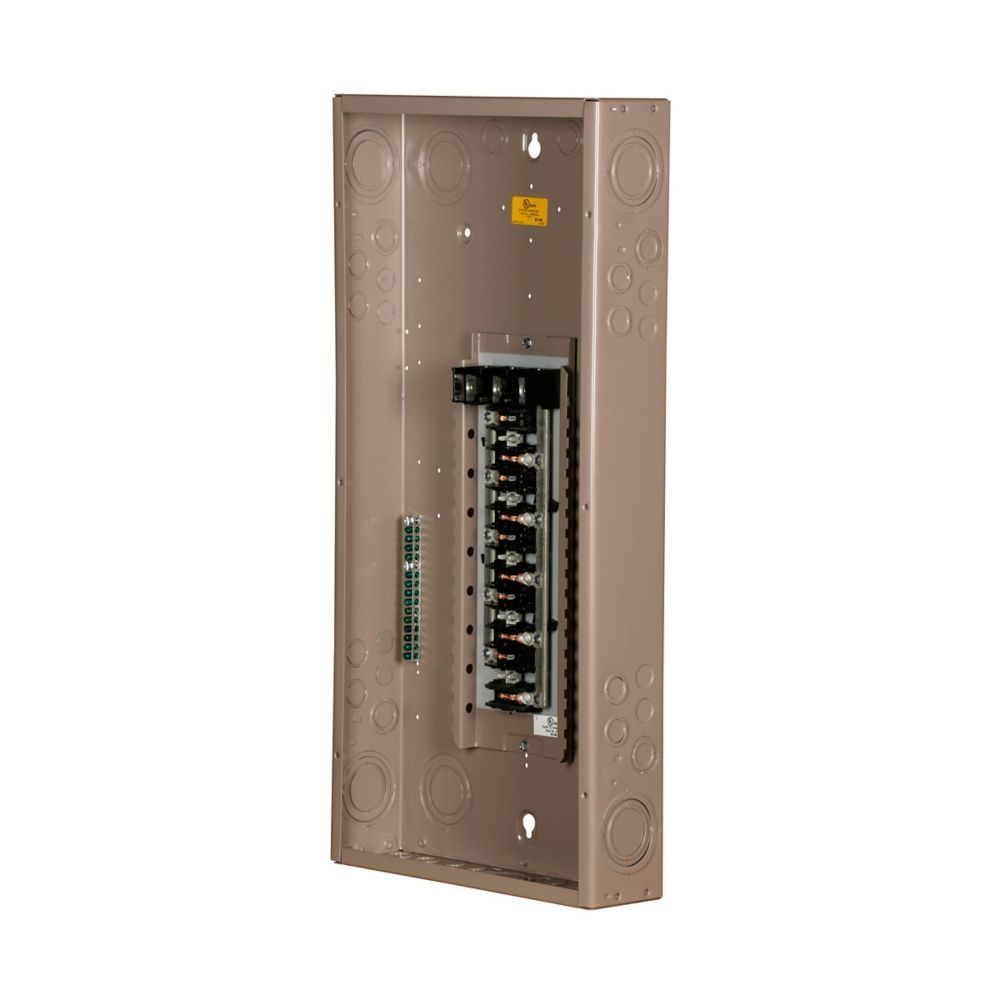

EATON Main Lug Loadcenter, 3-Phase Standard, 208Y/120/240 VAC, 150 A, 30 Pole, 10 kA Interrupt, 30 Circuits, CH Breaker, 4-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Wire, Flush Mount, NEMA 1, NEMA D Enclosure Box, Metal Housing, 29.13 in L x 14.31 in W x 3.88 in H

• Loadcenters have silver flash plated copper bus in all interiors
• Boxes and trims are finished using an electrostatic powder coated, baked urethane paint process
• Steel backpan provides positive, reliable mounting
• CH 150 to 225 a main breakers are rated 25 kA providing contractors with the highest interrupting rating main breaker in the industry
• Unique sandalwood finish provides an esthetically appealing, scratch resistant powder coating
• New mechanical flag feature on CH breakers for easy trip indication
• Type CH breakers include an industry exclusive "trip to Off" feature that allows a homeowner to easily identify a tripped circuit breaker
• Copper bus
• Overhead/underground feed applications
