EATON's line-of single position, self-contained meter sockets house the utilities electrical watthour meters in residential and commercial buildings. Choose from the widest range of utility approved sockets in the industry, including 100 to 320 A units and designs such as ring less, bypass and more.

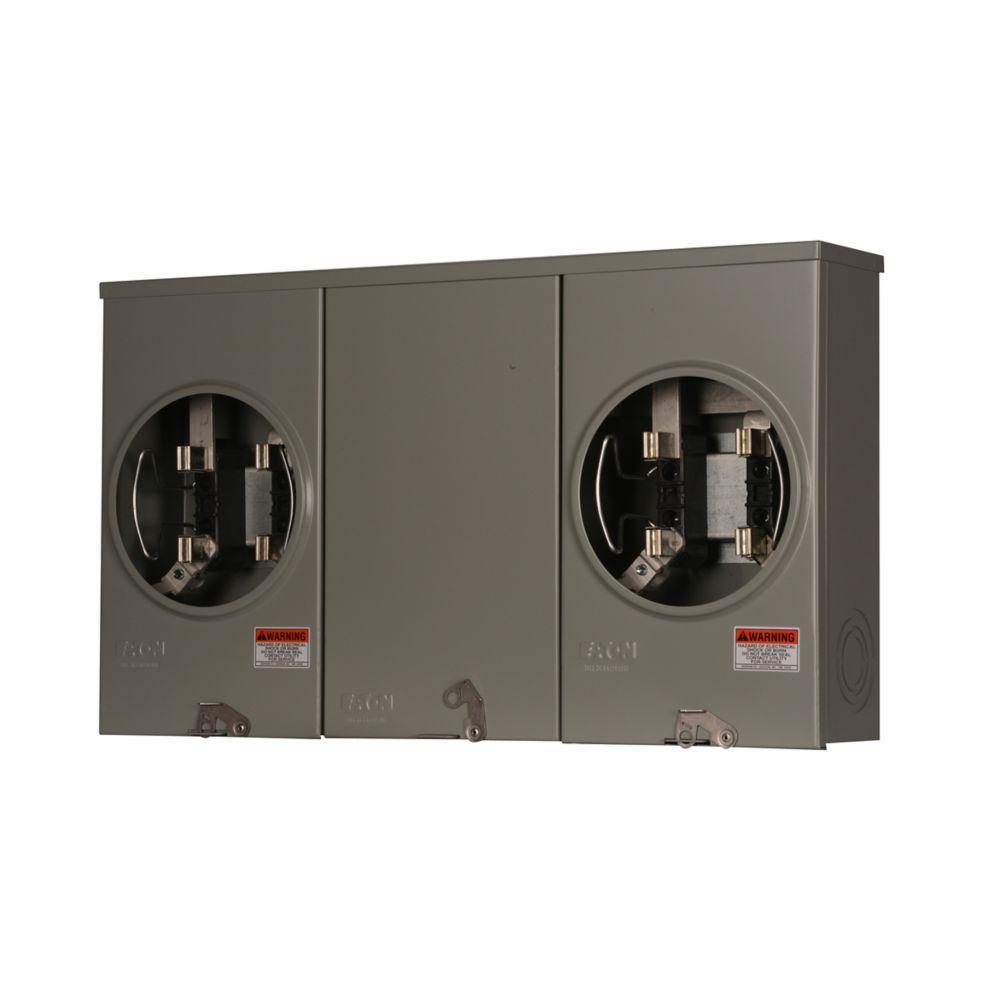

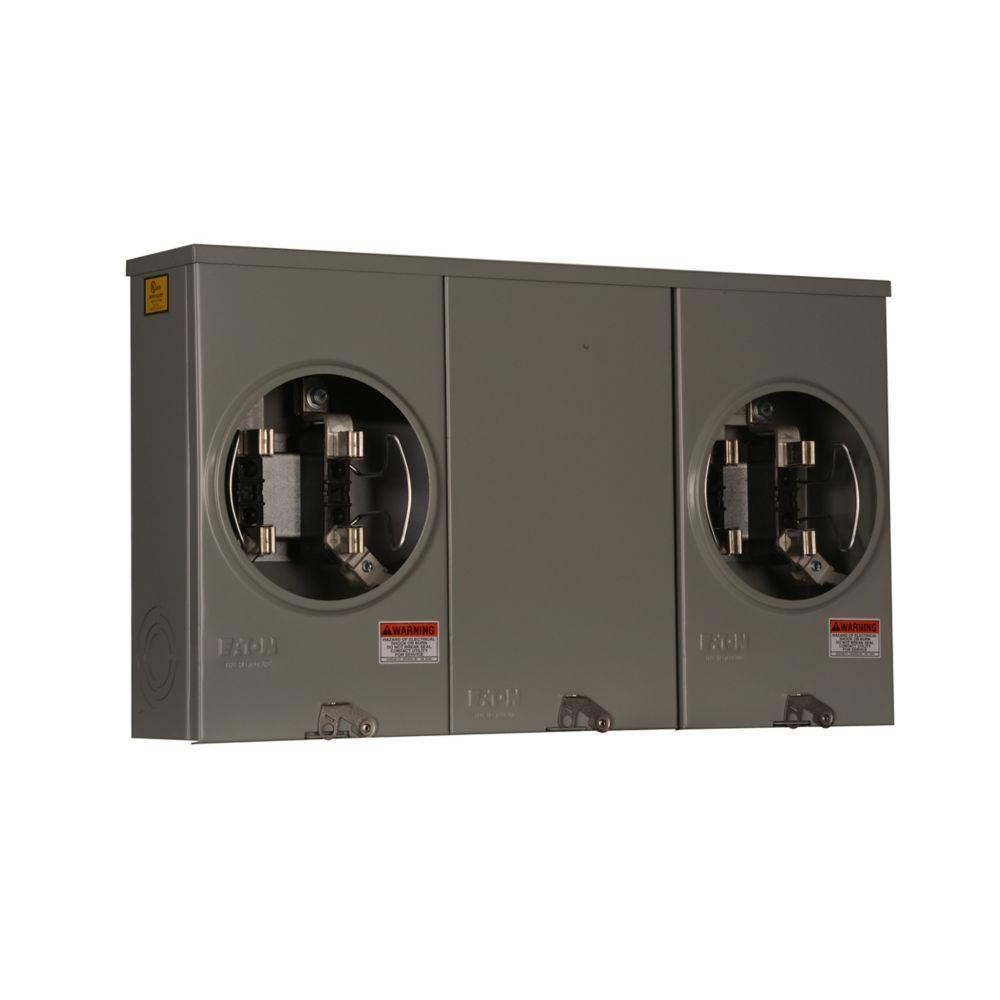

EATON Meter Socket, 2-Position 3-Wire Horizontal Ganged Horn Bypass Triplex, 600 VAC, 100 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil, 8 to 2/0 AWG, 14 to 2 AWG Wire, Open, 3-5/16 in Hub, Ringless Cover, Line/Load Terminal, 4.5 in L x 24.31 in W x 14.13 in H
| Cover Type | : | Ringless |
| Dimensions | : | 4.5 in L x 24.31 in W x 14.13 in H |
| Feed Type | : | Overhead/Underground |
| Hub Size | : | 3-5/16 in |
| Hub Type | : | Open |
| Number of Jaws | : | 4 |
| Terminal Type | : | Line/Load |
| Type | : | 2-Position 3-Wire Horizontal Ganged Horn Bypass Triplex |
| Wire Size | : | 6 AWG to 250 kcmil, 8 to 2/0 AWG, 14 to 2 AWG |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 100 A |
| Phase | : | 1 |
- Block assembly base exceeds 400 in-lb of torque provides durability under the most extreme installation circumstances
- One-piece, die-run enclosure eliminates tampering and extends product life
- High visibility EATON name embossed on cover

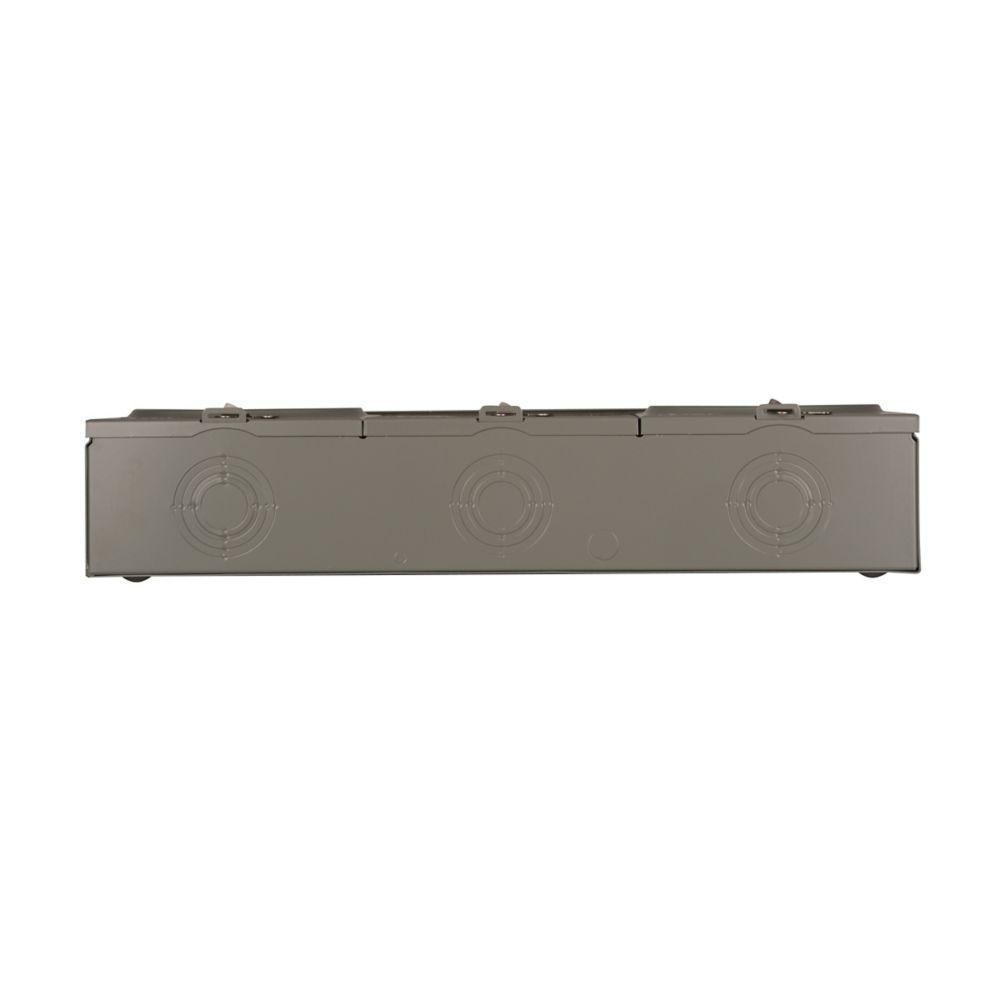

- Knockouts are installer friendly, labor savings, less time needed for removing knockouts
- Oversized 7/8 in Dia, heavy duty, steel lug screws stronger connection component facilitates a reliable wire termination
- Slide nuts are captive allow for ease in installation of conductors and eliminates lost components
- Horn bypass kit is field installable by changing out slide nut, integral triplex or quadplex ground extruded in neutral lugless inventory required and field modifications are simple
- One-piece for terminating incoming/outgoing neutral conductors, which increases integrity of connections
- 100% plated bridge with four point mounting, zinc chromate plated to provide superior corrosion resistance
- Rating up to 200 kA interrupt rating with specified overcurrent protection devices
- Provides a complete EATON residential solution
- Copper plated alloy jaws with reinforcing spring
- Steel reinforcing springs used in all socket jaws to maintain electrical connections
