Wiring Device-Kellems HBL2320AR
Send Print
  1. pin-int

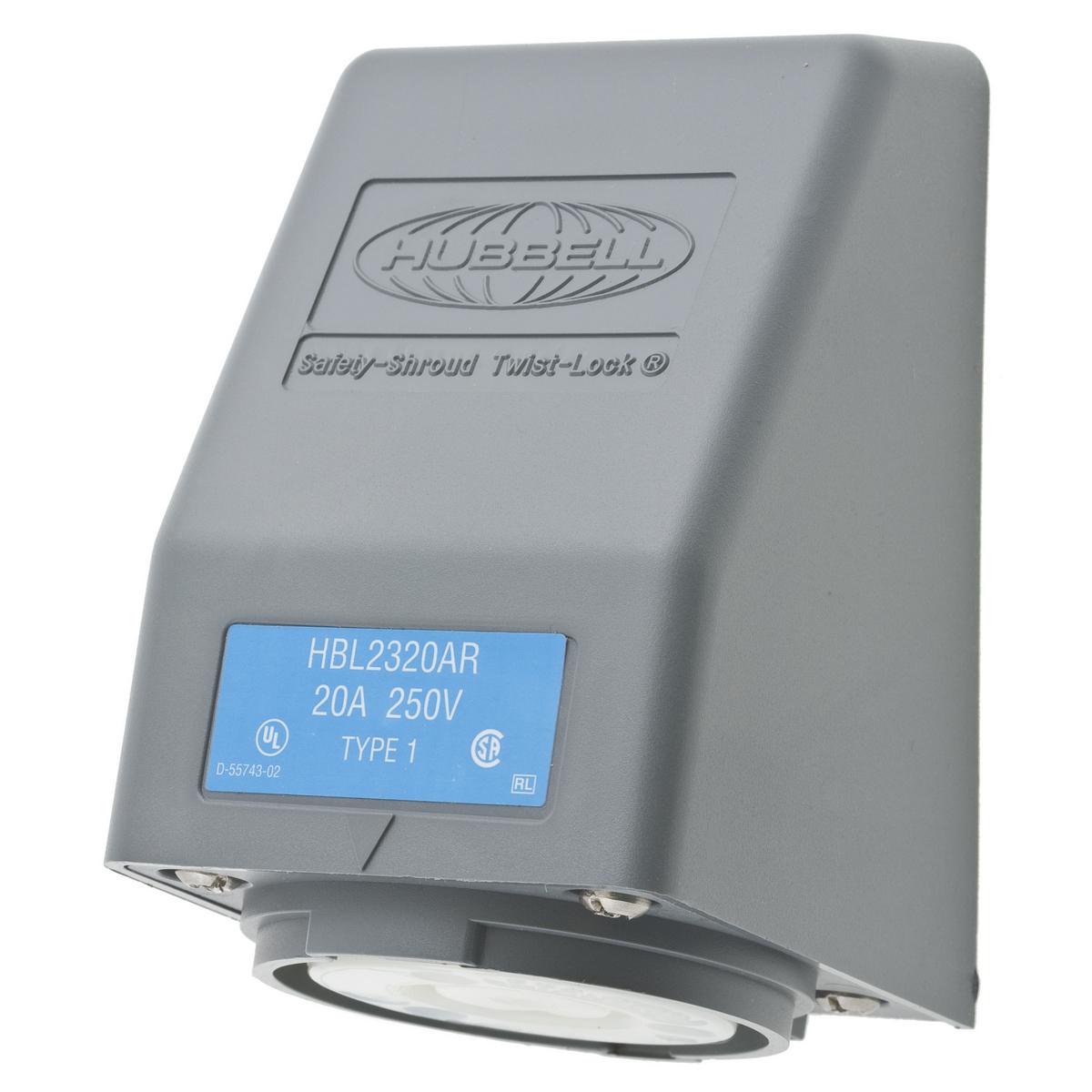

Wiring Device-Kellems HBL2320AR

Wiring Device-Kellems HBL2320AR HBL® 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount Locking Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray/White

  • Manufacturer Name: Hubbell
  • MPN: HBL2320AR
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585234083
  • FEPN: HBL2320AR HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems, HBL2320AR, Locking Receptacle, 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount, Series: HBL®, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, L6-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Thermoplastic, Gray/White, 4.77 x 2.85 x 3.14 in Dimensions

Dimensions       :      4.77 x 2.85 x 3.14 in
Enclosure       :      IP20
Grade       :      Industrial
Horsepower       :      2 hp
Material       :      Thermoplastic
NEMA Rating       :      L6-20R
Series       :      HBL®
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Screw
Type       :      1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount
Voltage Rating       :      250 VAC
Amperage Rating       :      20 A
Number of Poles       :      2
Number of Wires       :      3
Color       :      Gray/White
  • Natural white nylon body
  • 0.031 in brass contact spring and spring binding plate and ground contact
  • Withstands 2000 VAC minimum dielectric voltage
  • 14 to 8 AWG wire size
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
  • Clear polycarbonate terminal retainer
  • 0.08 in steel, curved, scalloped, nickel plated terminal clamp, #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw, Steel, zinc plated multi-drive cord clamp screw arterial and body holding screw
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_HBL2320AR_Installation_Manual.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_HBL2320AR_Line_Drawing.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_HBL2320AR_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device-Kellems_IG8362SA_Warranty.pdf
  • linkVIDEO LINK https://youtu.be/1DnPJu3QNw0
