IDEAL® 46-372

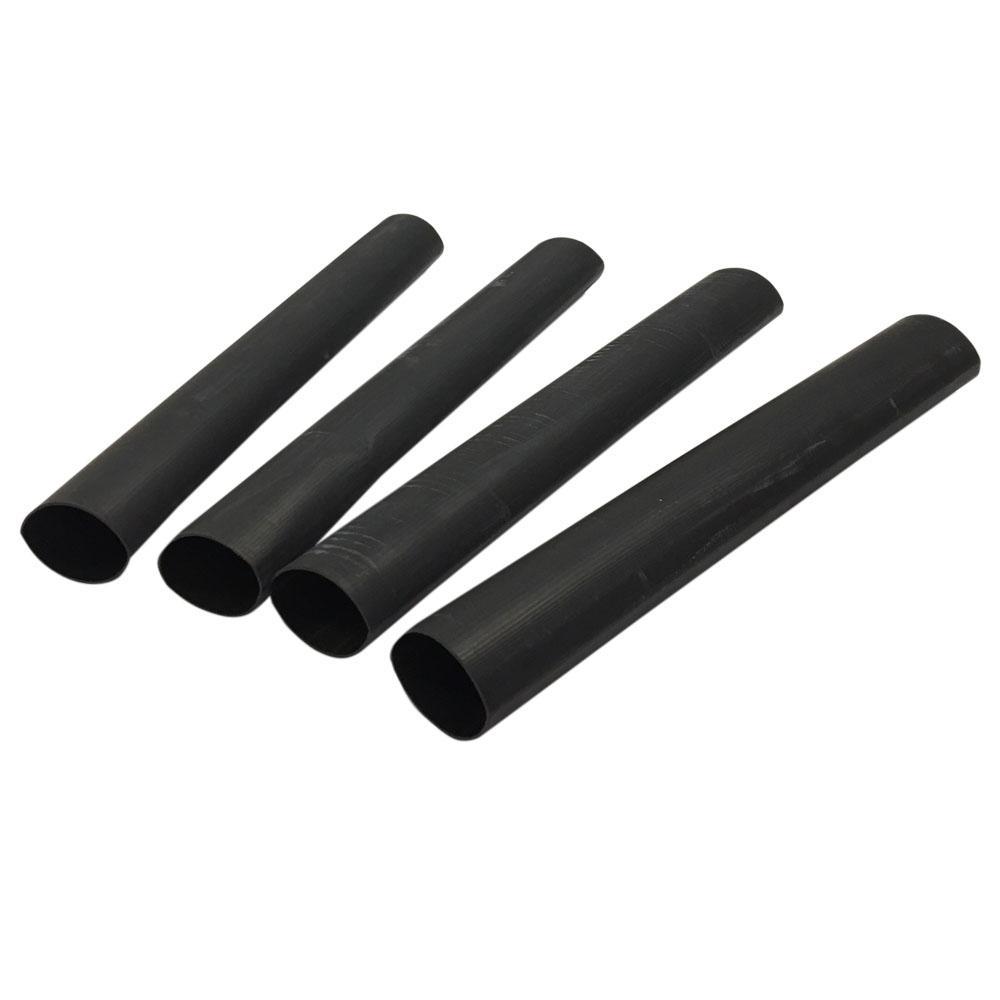

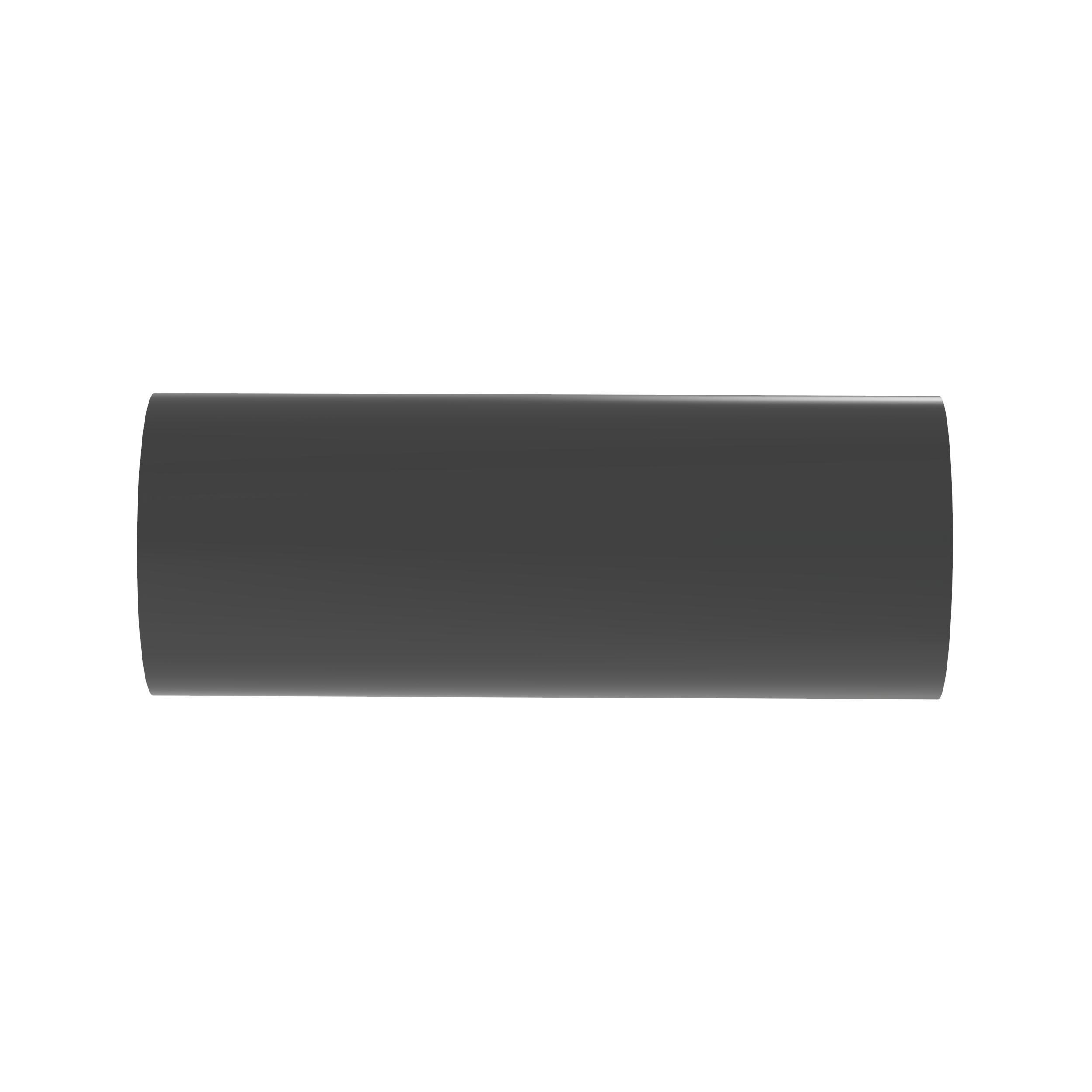

IDEAL® Thermo-Shrink® 46-372 Heat Shrink Tubing, 2 in ID Expanded, 0.63 in ID Recovered, 0.16 in THK Wall Recovered, 48 in L, Polyolefin, Black
- Manufacturer Name: Ideal Industries
- MPN: 46-372
- Brand Name: IDEAL®
- UPC: 783250463725
- FEPN: 46-372 II
- Min Order Qty: 1
- Quantity Interval: 2
-
Inventory Availability
-
Retail Price:
IDEAL® Thermo-Shrink® Heat Shrink Tubing, 600 VAC, 2 in ID Expanded, 0.63 in ID Recovered, Heavy Duty Wall, 0.16 in Wall Thickness Recovered, 250 to 500 kcmil Wire, 3:1 Shrink Ratio, 48 in Length, -55 to 110 deg C, 120 to 250 deg C Shrink, Polyolefin, Black
| Shrink Ratio | : | 3:1 |
| Shrink Temperature | : | 120 to 250 deg C |
| Temperature Rating | : | -55 to 110 deg C |
| Voltage Rating | : | 600 VAC |
| Wall Type | : | Heavy Duty |
| Wire Size | : | 250 to 500 kcmil |
| Inner Diameter Expanded | : | 2 in |
| Inner Diameter Recovered | : | 0.63 in |
| Wall Thickness Recovered | : | 0.16 in |
| Length | : | 48 in |
| Material | : | Polyolefin |
| Color | : | Black |
- TS-46 irradiated cross linked polyolefin with 3:1 standard shrink ratio
- Maximum flame retardancy
- 600 Percent minimum ultimate elongation
- 25000 psi maximum secant modulus at 2 Percent strain
- 1.2 maximum specific gravity
- +/-5 Percent longitudinal shrinkage
- Non-corrosive copper
- Rated for 600V, 90 deg C continuous use
RoHS
