With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

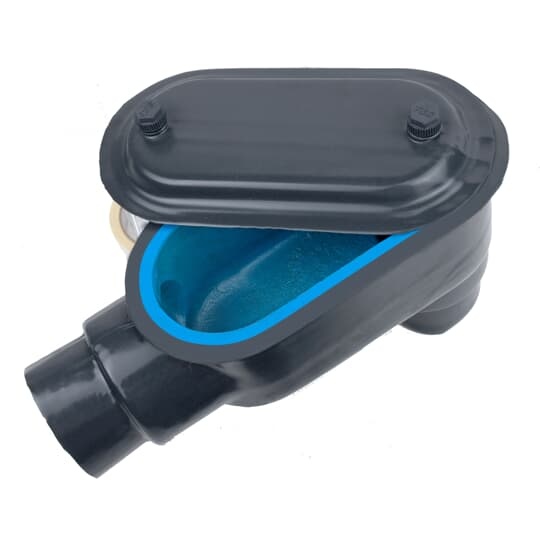

Ocal® OCAL-BLUE® Conduit Body, Type LB, 1 in Hub, 2 Hubs, 10.6 cu-in Capacity, Form 7 Form, NEMA RN-1 Enclosure, Thread Connection, Iron, PVC Coated, Dark Gray, 6 in L x 1.8 in W x 2.65 in H Dimensions
| Color | : | Dark Gray |
| Connection Type | : | Thread |
| Dimensions | : | 6 in L x 1.8 in W x 2.65 in H |
| Enclosure | : | NEMA RN-1 |
| Number of Hubs | : | 2 |
| Type | : | Type LB |
| Hub Size | : | 1 in |
| Form | : | Form 7 |
| Capacity | : | 10.6 cu-in |
| Material | : | Iron |
| Finish | : | PVC Coated |
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal® Pressure sealing sleeves on all threaded hubs
- Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
