Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.

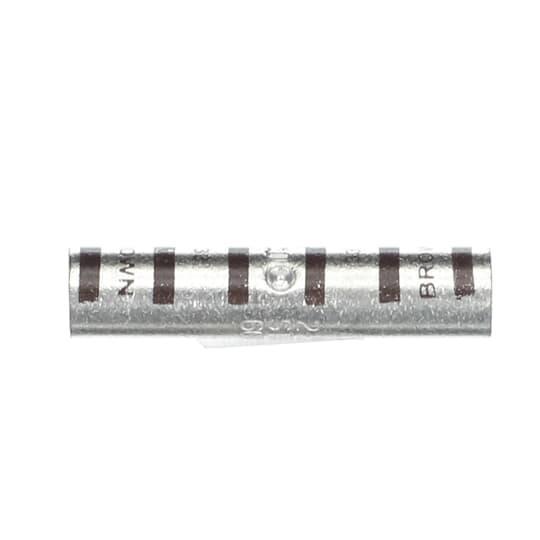

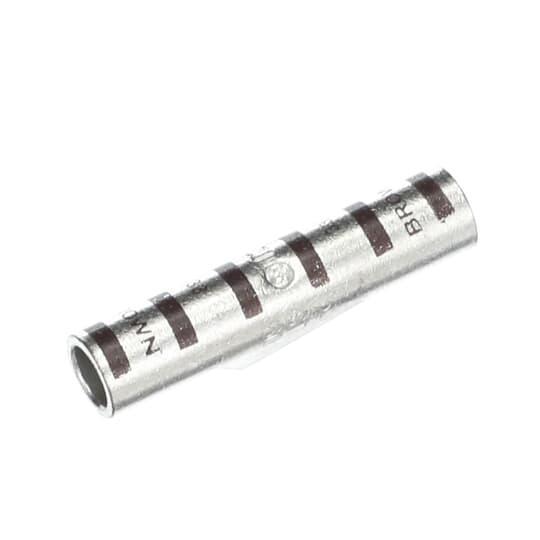

Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 2 AWG Conductor, Die Code: 33, 600 V AC, 0.43 in OD, 1.88 in Length, Specifications: Tin Plated, Copper, Brown Color Code
| Color Code | : | Brown |
| Outside Diameter | : | 0.43 in |
| Specifications | : | Tin Plated |
| Type | : | 2-Way Long Barrel |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 2 AWG |
| Conductor Type | : | Copper |
| Die Code | : | 33 |
| Length | : | 1.88 in |
| Material | : | Copper |
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 125/24 = 50.4 kcmil wire size flex
