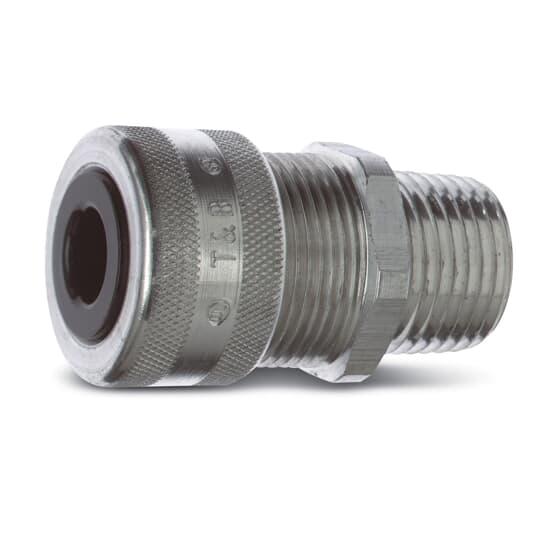

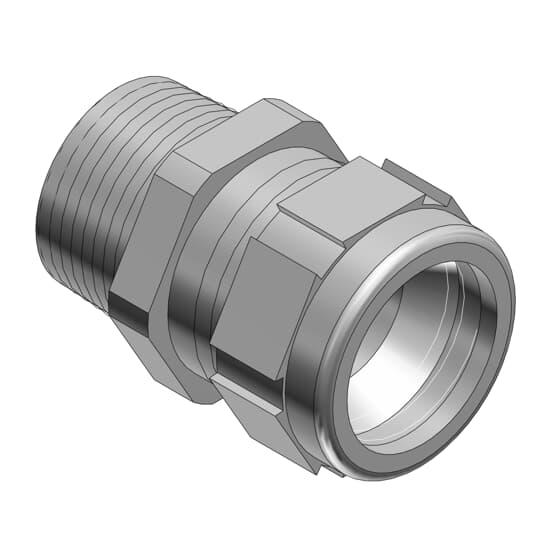

The Ranger® Series Steel Liquidtight® Connector takes twice the cable range of most ordinary strain relief connectors. T&B®'s Ranger Connectors enable you to reduce your inventory and save time with one connector that can do the work of two.
T&B® Cord Connector, Liquidtight Strain Relief, Series: Ranger®, 1 in, Cable Openings: 1/2 to 3/4 in, S/SO Cable, Thread, Aluminum, Metallic, -4 to 221 deg F, 2-11/32 in L x 1-13/32 in W
| Cable Type | : | S/SO |
| Color | : | Metallic |
| Connection Type | : | Thread |
| Dimensions | : | 2-11/32 in L x 1-13/32 in W |
| Series | : | Ranger® |
| Temperature Rating | : | -4 to 221 deg F |
| Type | : | Liquidtight Strain Relief |
| Trade Size | : | 1 in |
| Cable Openings | : | 1/2 to 3/4 in |
| Material | : | Aluminum |
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Suitable for ordinary, wet or dry locations
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b)
- 25/32 in L thread
- 9/16 in Dia throat
- Aluminum gland nuts, grip and neoprene gasket
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
Specification Sheet
