Wiring Device-Kellems HBL430P9W
Send Print
  1. pin-int

Wiring Device-Kellems HBL430P9W

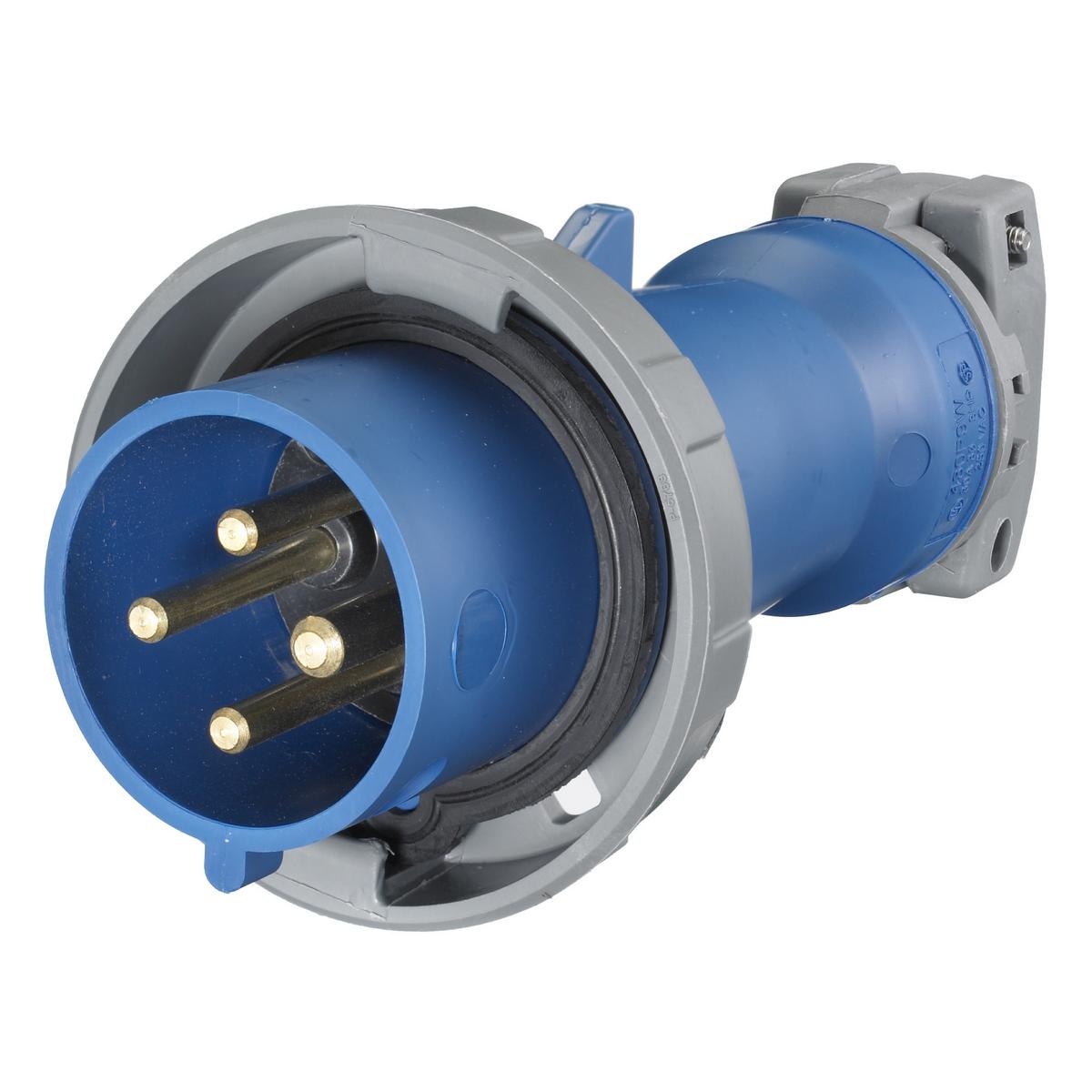

Wiring Device-Kellems HBL430P9W 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 250 VAC, 30 A, 3 Poles, 4 Wires, Blue

  • Manufacturer Name: Hubbell
  • MPN: HBL430P9W
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585404608
  • FEPN: HBL430P9W HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems, HBL430P9W, Pin and Sleeve Plug, 3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 250 VAC, 30 A, 3 Pole, 4 Wires, Industrial Grade, IP67 Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Blue, 3.74 in Dia x 8.05 in L Dimensions

Dimensions       :      3.74 in Dia x 8.05 in L
Enclosure       :      IP67
Grade       :      Industrial
Material       :      Composite
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Pressure Screw
Type       :      3-Phase Grounding Male Non-NEMA Portable Standard Watertight Cord Mount
Voltage Rating       :      250 VAC
Amperage Rating       :      30 A
Number of Poles       :      3
Number of Wires       :      4
Color       :      Blue
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_586a224a574410df2f385227d20571ef5eb2da96e4bc9f920ec08f6450e3b0bd.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7a46fe0ab6a5d4c4422236435becdc8d92b9cd468297bac99d85f3eb5fa9fdba.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d56d02ba372629da007168e0f57ef582dc55e775f6bff3abf350bcf700d0361f.pdf
