Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
EATON Arc-Fault Circuit Breaker, Type CHF Standard, 120/240 VAC, 20 A, 10 kA Interrupt, Mechanical Trip, 1 Pole, (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum Wire, Plug-On Mount, 60 to 75 deg C, 3 in L x 3/4 in W x 3 in H
| Dimensions | : | 3 in L x 3/4 in W x 3 in H |
| Mounting Type | : | Plug-On |
| Temperature Rating | : | 60 to 75 deg C |
| Type | : | Type CHF Standard |
| Wire Size | : | (1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 20 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 1 |
| Trip Type | : | Mechanical |
- One 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum wire
- 3/4 in circuit breaker
Owners/User Manual-
-
Pass & Seymour® 3232TRWRW
-
Pass & Seymour® 3232TRWRW Duplex Gro...
- FEPN: 3232-TRWRW PS
- MPN: 3232TRWRW
- UPC: 785007241839
-
-
-

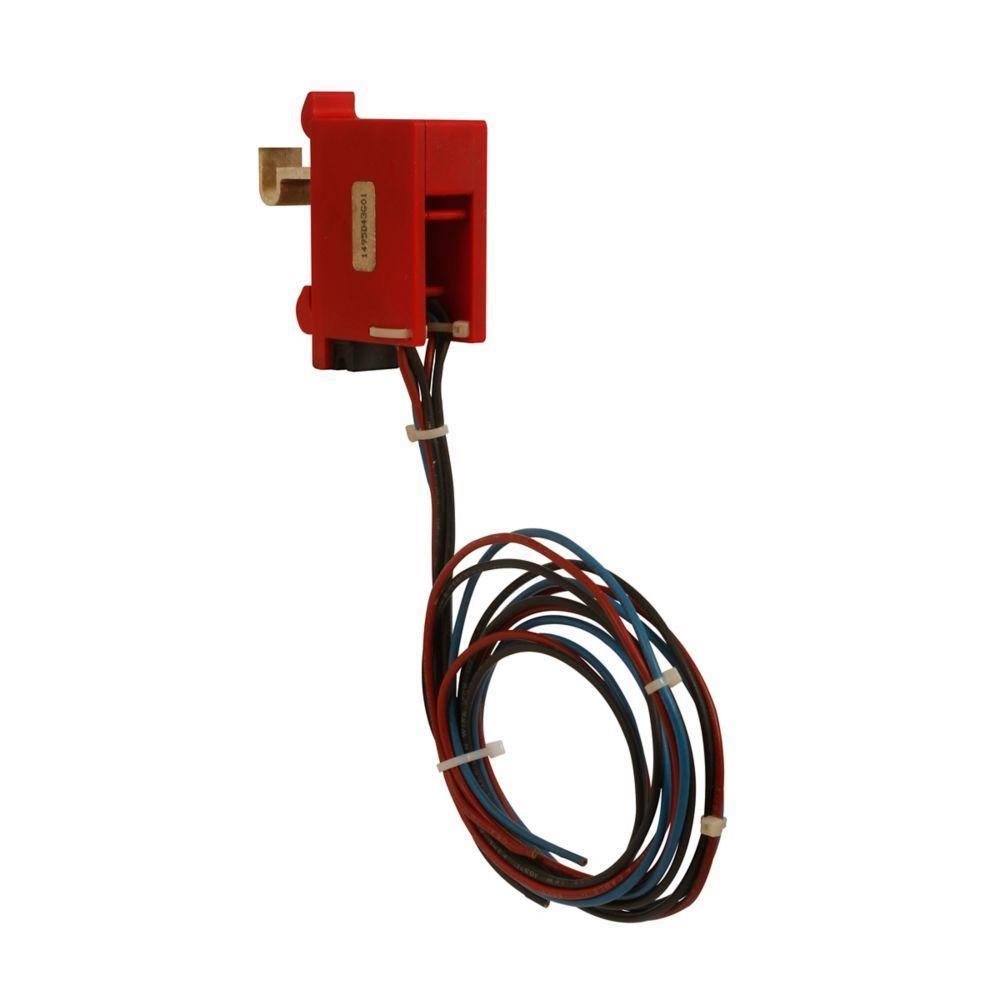

EATON A2X6RPK
-
