Sta-Kon® 18RA-251T

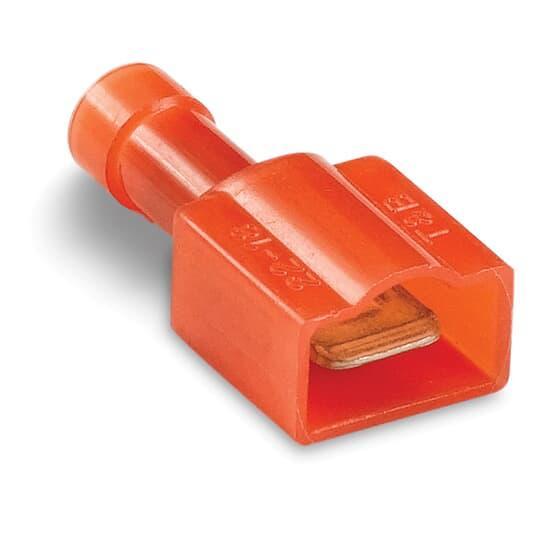

Sta-Kon® 18RA-251T 250 Insulated Male Tab, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Brass/Copper, Red
- Manufacturer Name: ABB
- MPN: 18RA-251T
- Brand Name: Sta-Kon®
- UPC: 786210869766
- FEPN: 18RA-251T TB
- Min Order Qty: 50
- Quantity Interval: 50
-
Inventory Availability
-
Retail Price:
T&B® developed the first tool-applied solderless terminals and connectors more than 70 years ago in response to industry awareness of the need for better performance of electrical systems.
Sta-Kon® Male Tab, Insulated, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 300 V AC, 0.03 in THK Stock, 0.17 in Dia Maximum Nylon Insulation, 105 deg C, Brass/Copper, Red, Tin Electro-Plated, 0.95 in L x 0.45 in W
| Dimensions | : | 1.13 in L x 0.45 in W |
| Finish | : | Electro Plated Tin |
| Series | : | 250 |
| Specifications | : | 0.17 in Max Insulation, 0.03 in Stock THK |
| Temperature Rating | : | 105 deg C |
| Terminal Type | : | Crimp |
| Type | : | Insulated |
| Voltage Rating | : | 300 V AC |
| Conductor Size | : | 22 to 18 AWG |
| Tab Size | : | 0.25 in W x 0.032 in THK |
| Barrel Type | : | Brazed Seam |
| Material | : | Brass |
| Color | : | Red |
- Brazed seam serrated barrel provides maximum tensile strength
Specification Sheet
