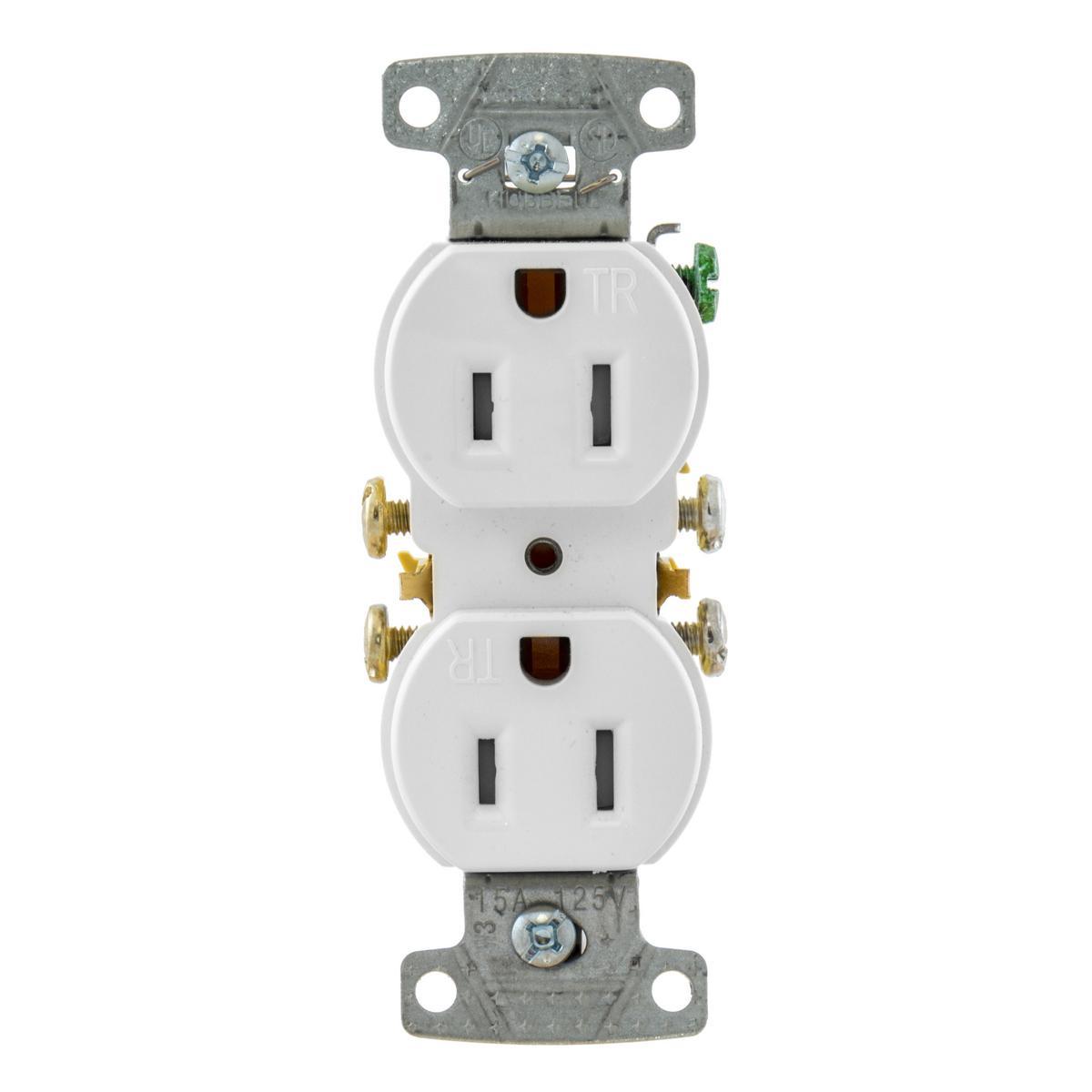

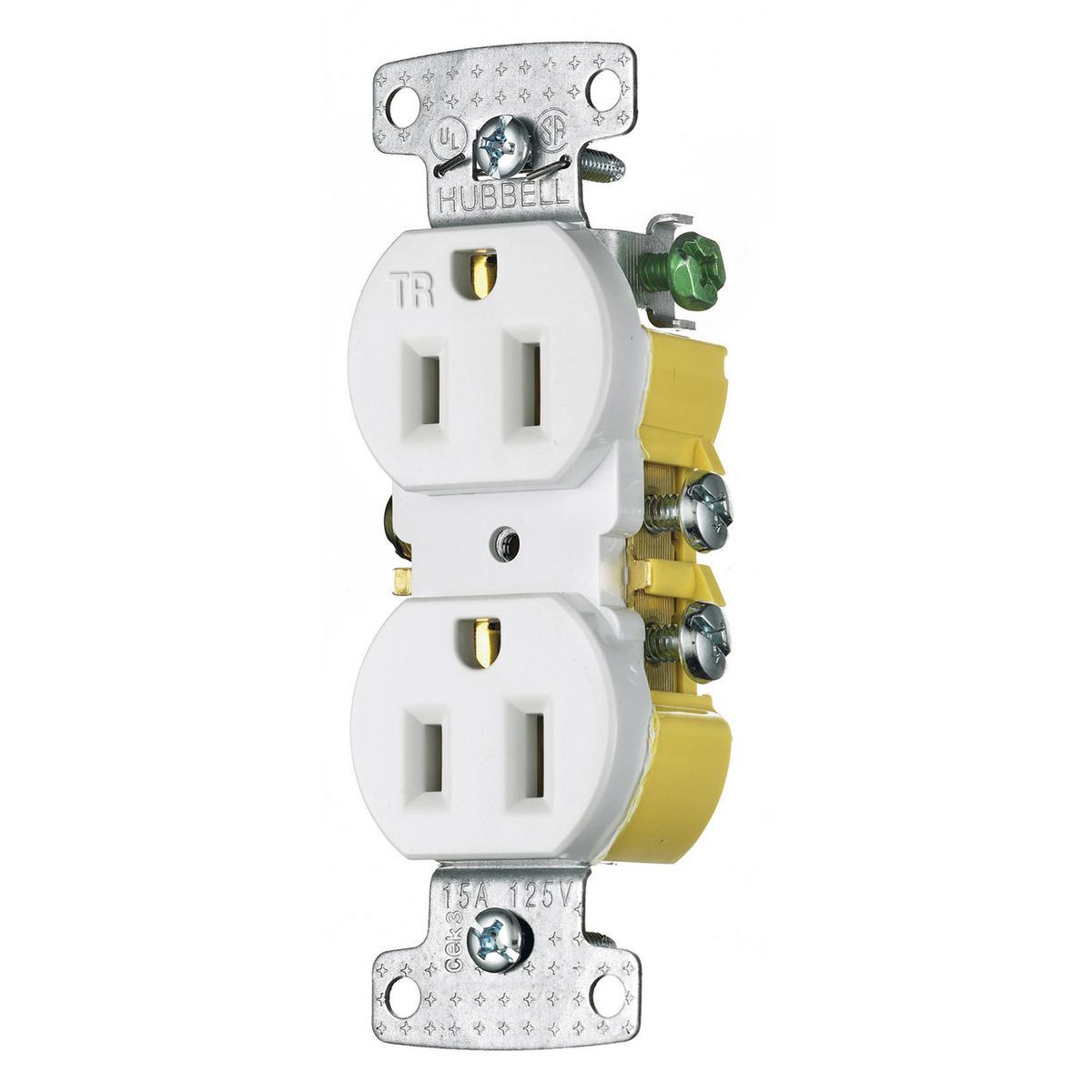

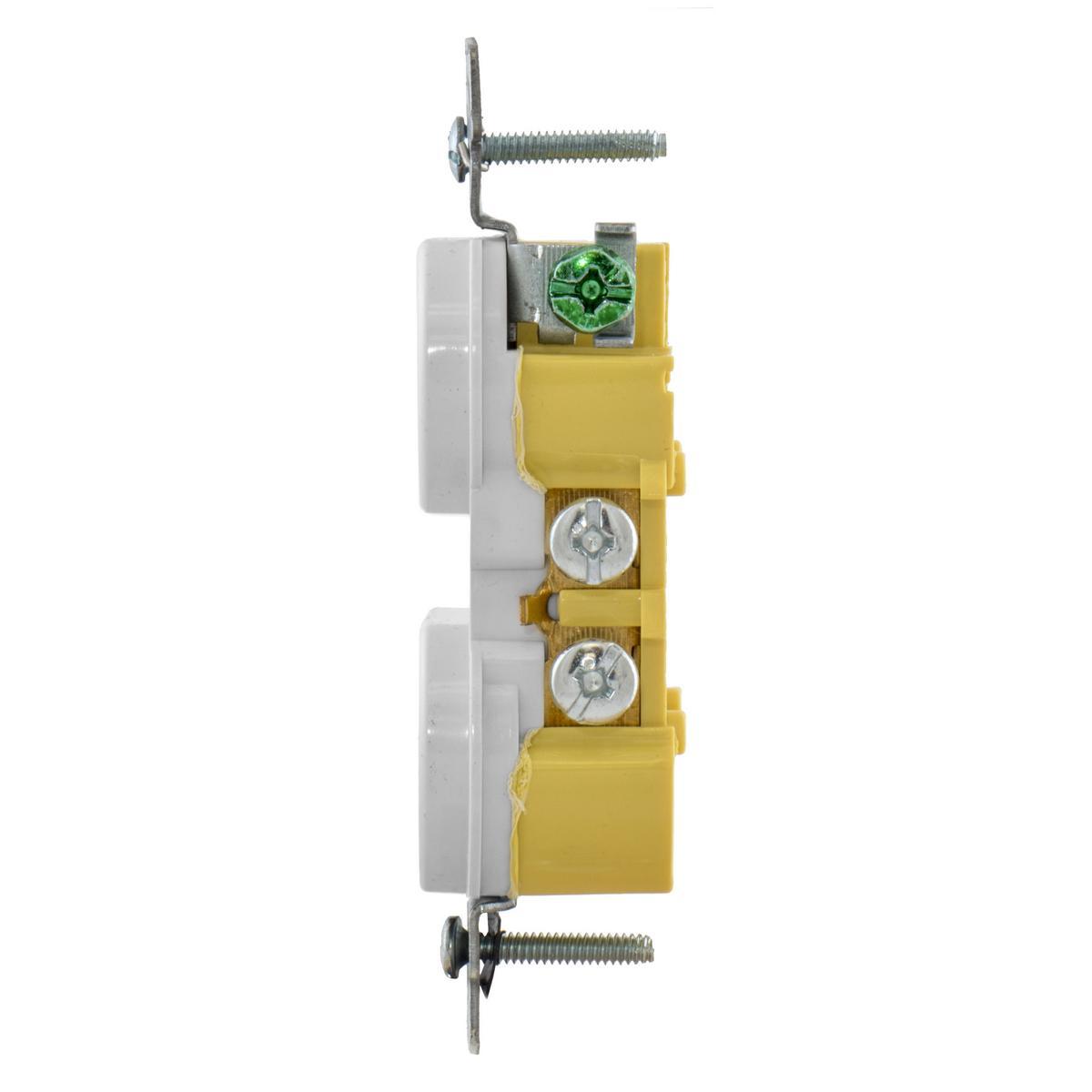

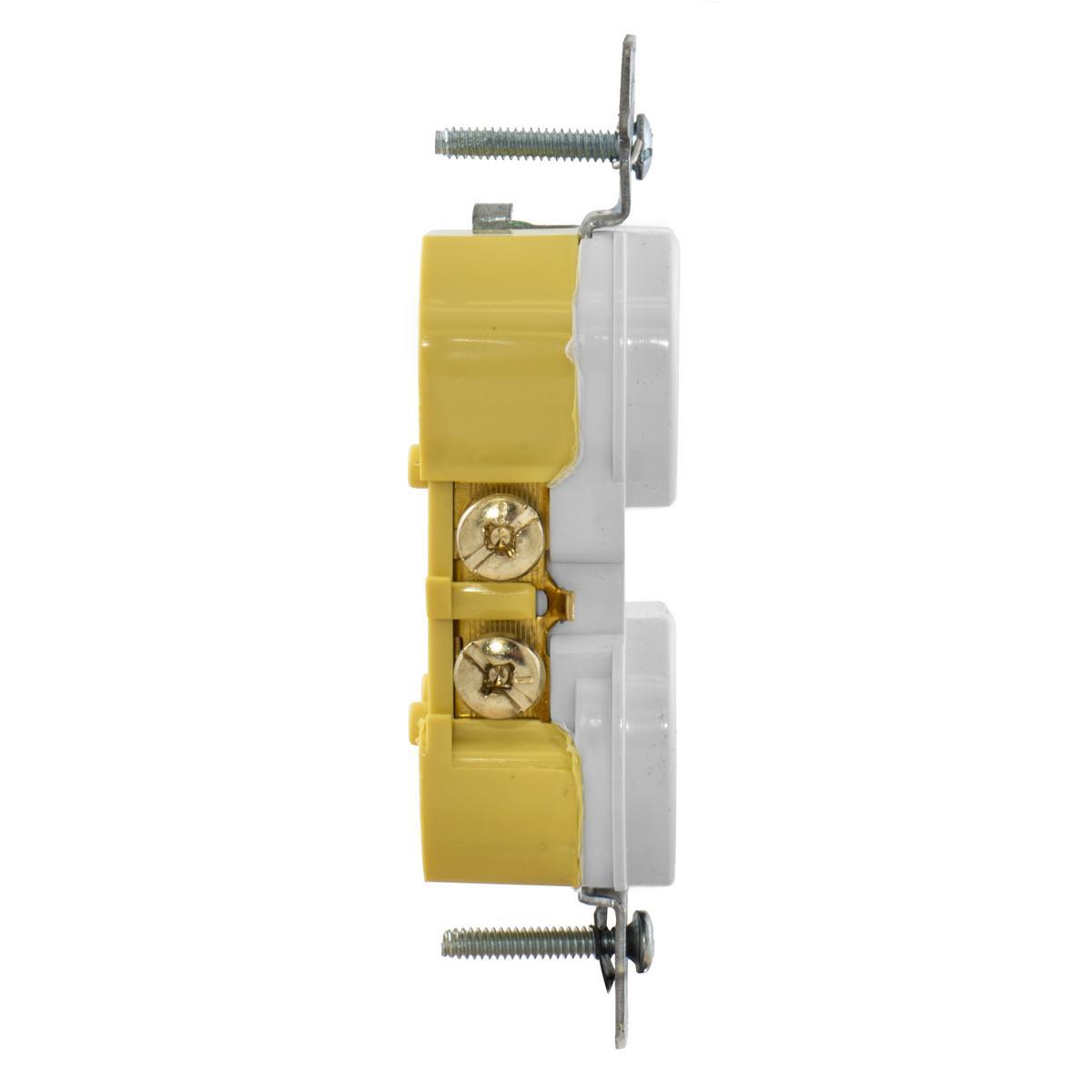

Wiring Device-Kellems RR15SWTR
Wiring Device-Kellems RR15SWTR 1-Phase Duplex Self-Grounding Standard Tamper-Resistant Traditional Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
- Manufacturer Name: Hubbell
- MPN: RR15SWTR
- Brand Name: Wiring Device-Kellems
- UPC: 883778301544
- FEPN: RR15SWTR HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, RR15SWTR, Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Tamper-Resistant Traditional Screw Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Residential Grade, -20 to 60 deg C, Push-In/Side Wire Terminal, Thermoplastic, White, 4.19 in L x 1.52 in W x 1.03 in H Dimensions
| Dimensions | : | 4.19 in L x 1.52 in W x 1.03 in H |
| Grade | : | Residential |
| Material | : | Thermoplastic |
| NEMA Rating | : | 5-15R |
| Temperature Rating | : | -20 to 60 deg C |
| Terminal Type | : | Push-In/Side Wire |
| Type | : | 1-Phase Duplex Self-Grounding Standard Tamper-Resistant Traditional Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Smooth indented face appearance
- Multiple drive Slot/Phillips®/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- 14 to 12 AWG wire size
- Tamper resistant
Specification Sheet
