Wiring Device-Kellems HBL8219C
Send Print
  1. pin-int

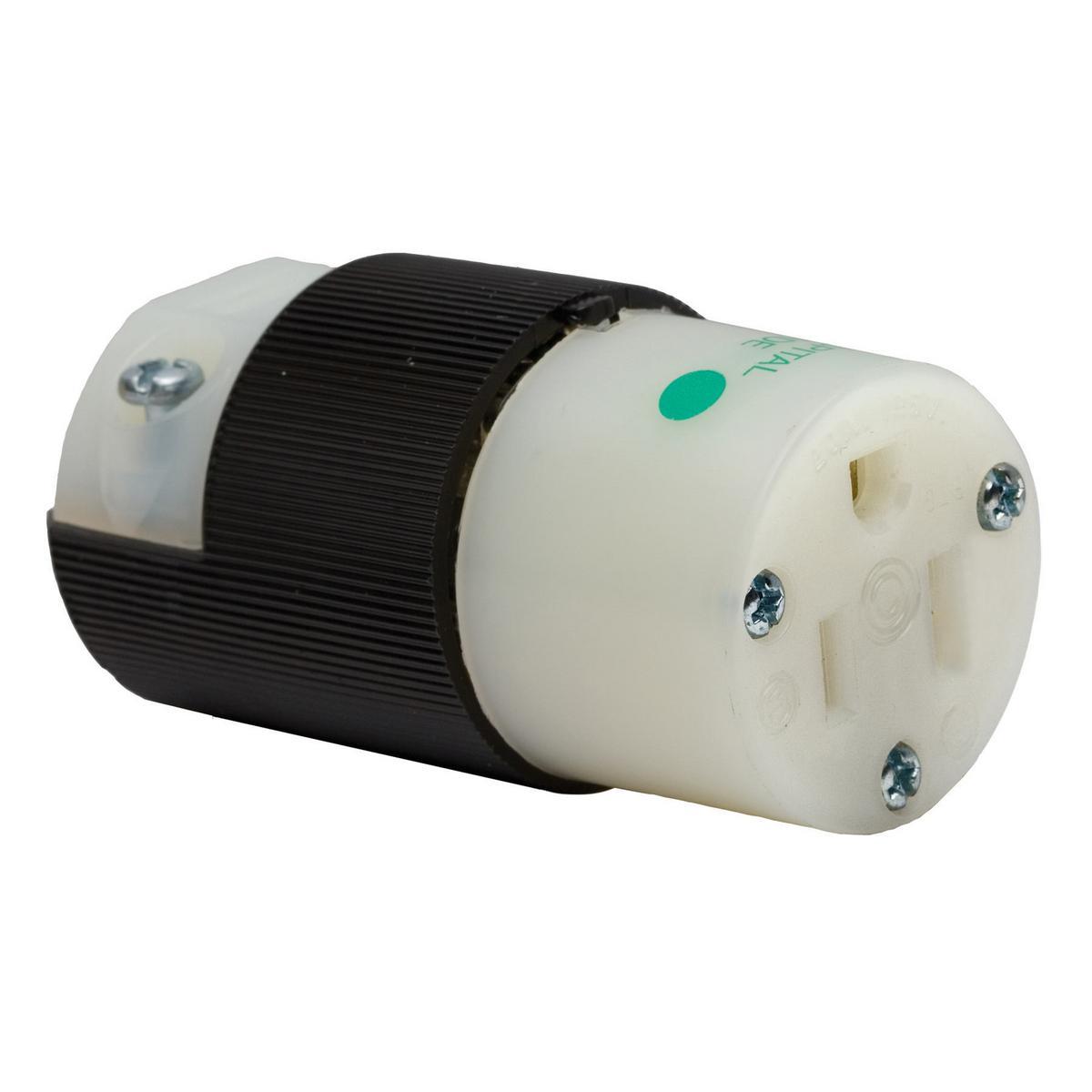

Wiring Device-Kellems HBL8219C

Wiring Device-Kellems HBL8219C Female Standard Sized Cord Mount Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

  • Manufacturer Name: Hubbell
  • MPN: HBL8219C
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585179506
  • FEPN: HBL8219C HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems, HBL8219C, Straight Blade Connector, Female Standard Sized Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Hospital Grade, IP20 Enclosure, 0.23 to 0.72 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.78 x 1.53 x 1.53 in Dimensions

Cord Diameter       :      0.23 to 0.72 in
Dimensions       :      2.78 x 1.53 x 1.53 in
Enclosure       :      IP20
Grade       :      Hospital
Horsepower       :      1/2 hp
Material       :      Nylon
NEMA Rating       :      5-15R
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Screw
Type       :      Female Standard Sized Cord Mount
Voltage Rating       :      125 VAC
Amperage Rating       :      15 A
Number of Poles       :      2
Number of Wires       :      3
Color       :      Black/White
  • Beveled housing prevents snagging
  • Powerful, offsetting cord grips clamp on individual conductors
  • Durable, impact and chemical resistant nylon construction ensures reliability
  • Visible catalog number while in use offers easy identification
  • Fast lead screws provide easy assembly
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_245a4420c639a4d81cf71519bf23e1d376cb723389817bfe9af7da8df50b8987.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b22bc6b829e5ecb32c26678b3fa18fee63d3703a7965211da9b2830b475fbc9c.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d3c9a0c1bc5d93571e4956939c9cbd6b8f62995a834decdb3b4573787d966320.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_HBL8219C_Catalog.pdf
  • pdfFull Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_HBL8219C_Full_Engineering_Drawing.pdf
  • linkVIDEO LINK https://youtu.be/1DnPJu3QNw0
