Wiring Device-Kellems HBL430PS2W

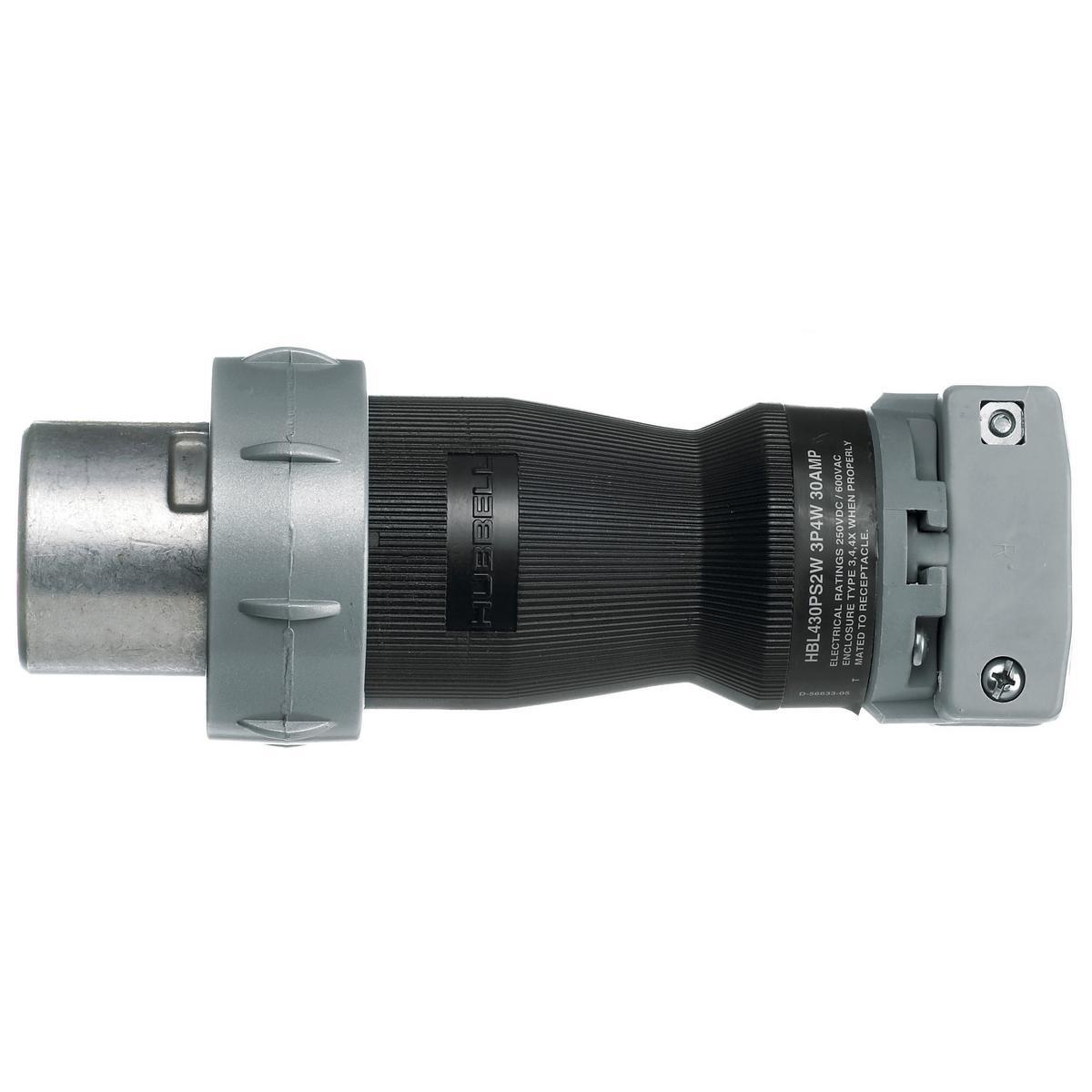

Wiring Device-Kellems HBL430PS2W Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 600 VAC/250 VDC, 30 A, 3 Poles, 4 Wires, Black/Gray
- Manufacturer Name: Hubbell
- MPN: HBL430PS2W
- Brand Name: Wiring Device-Kellems
- UPC: 783585010182
- FEPN: HBL430PS2W HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL430PS2W, Pin and Sleeve Plug, Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount, 600 VAC/250 VDC, 30 A, 50 to 400 Hz Frequency, 3 Pole, 4 Wires, 3/4/4X NEMA Rating, Industrial Grade, NEMA 3/4/4X Enclosure, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 7.54 in L Dimensions
| Dimensions | : | 7.54 in L |
| Enclosure | : | NEMA 3/4/4X |
| Frequency Rating | : | 50 to 400 Hz |
| Grade | : | Industrial |
| Material | : | Composite |
| NEMA Rating | : | 3/4/4X |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Type 2 Grounding Male Non-NEMA Portable Standard Watertight Cord Mount |
| Voltage Rating | : | 600 VAC/250 VDC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/Gray |
- Catalog number and rating visible while in use
- All-Brass sleeve contacts provide reliable electrical contact
