Sta-Kon® B223

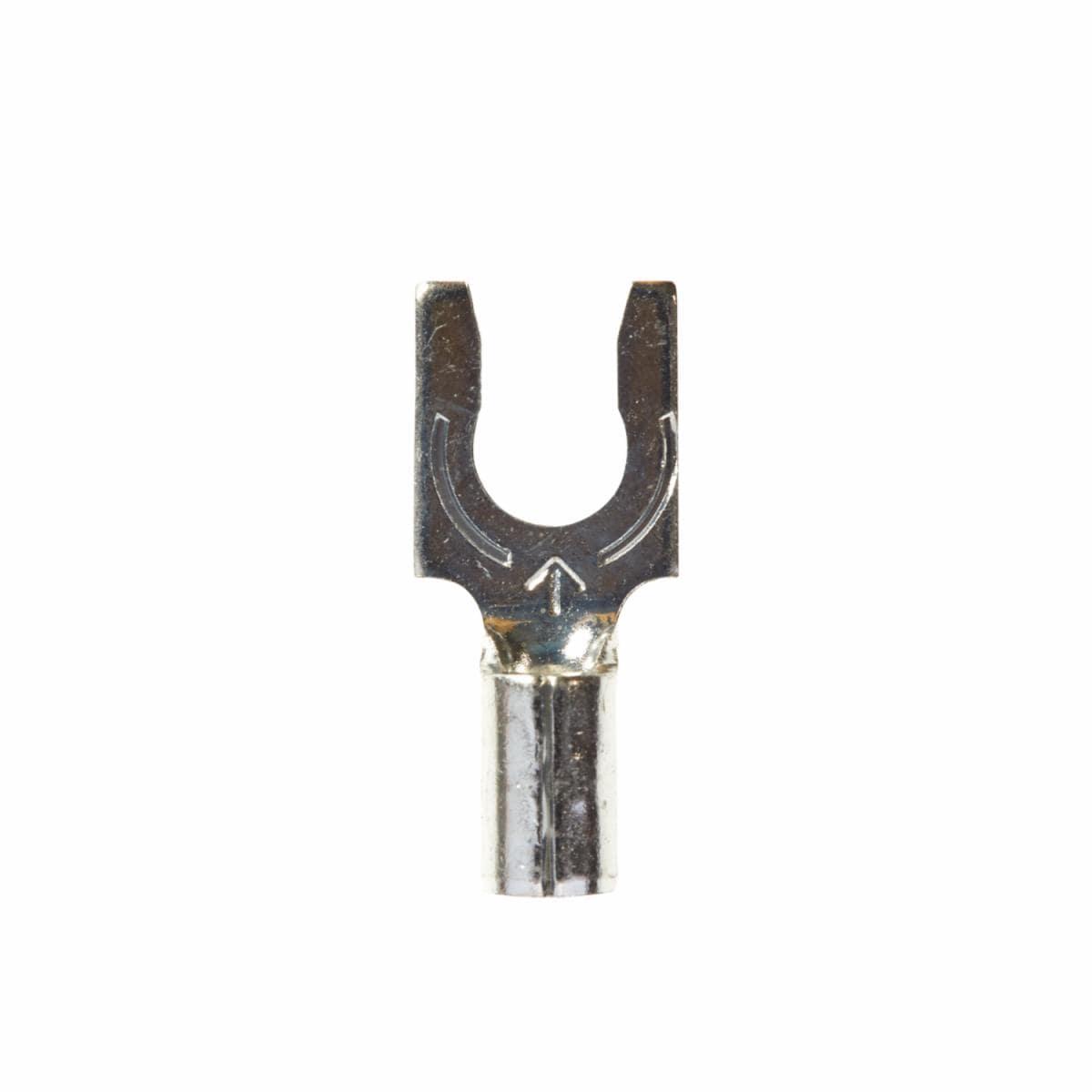

Sta-Kon® B223 B Series Locking Non-Insulated Fork Terminal, 18 to 14 AWG Conductor, 3/4 in L, Brazed Seam/Serrated Barrel, Copper, Metallic
- Manufacturer Name: ABB
- MPN: B223
- Brand Name: Sta-Kon®
- UPC: 786210809885
- FEPN: B223 TB
- Min Order Qty: 1
- Quantity Interval: 1000
-
Inventory Availability
-
Retail Price:
Sta-Kon® Fork Terminal, Locking Non-Insulated, Series: B Series, 18 to 14 AWG Conductor, #8 Stud, 3/4 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 V AC, Specifications: 0.27 in Clearance, 150 deg C, Copper, Electroplated Tin, Metallic
| Finish | : | Electroplated Tin |
| Series | : | B Series |
| Specifications | : | 0.27 in Clearance |
| Stud Size | : | #8 |
| Temperature Rating | : | 150 deg C |
| Tongue Size | : | 0.29 in W x 0.03 in THK |
| Tongue Type | : | Fork |
| Type | : | Locking Non-Insulated |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 18 to 14 AWG |
| Length | : | 3/4 in |
| Barrel Type | : | Brazed Seam/Serrated |
| Material | : | Copper |
| Color | : | Metallic |
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- WT110M, WT111M, WT112M, WT2000, ERG4002, ERG4005 recommended tools
Specification Sheet
