Wiring Device-Kellems HBL2413SW

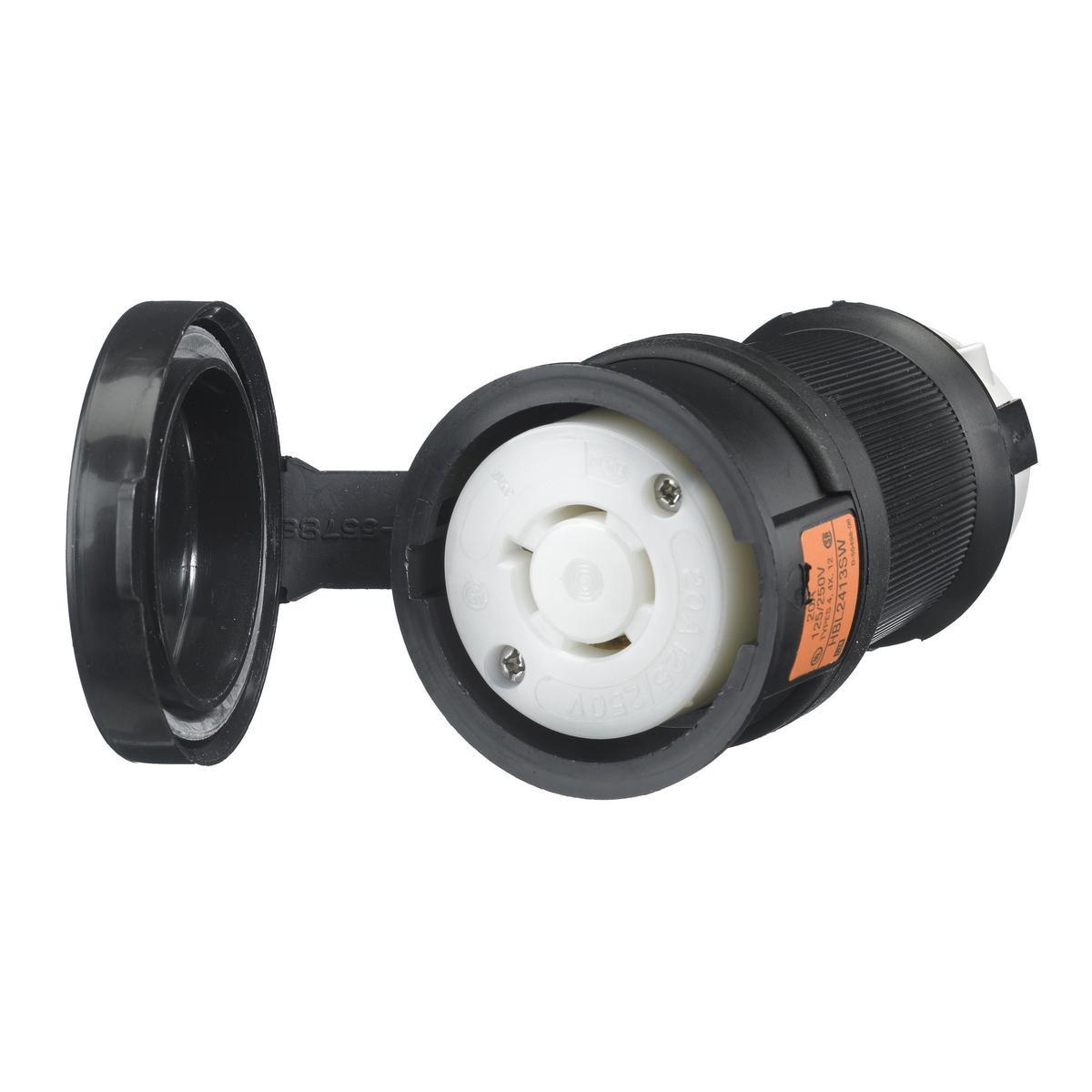

Wiring Device-Kellems HBL2413SW HBL® Grounding Heavy Duty Cord Mount Watertight Locking Connector, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2413SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231303
- FEPN: HBL2413SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2413SW, Locking Connector, Grounding Heavy Duty Cord Mount Watertight, Series: HBL®, 125/250 VAC, 20 A, 2 hp, 3 Pole, 4 Wires, L14-20R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in Dimensions
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.75 x 2.75 x 4.4 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Commercial/Industrial |
| Horsepower | : | 2 hp |
| Material | : | Composite |
| NEMA Rating | : | L14-20R |
| Series | : | HBL® |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Grounding Heavy Duty Cord Mount Watertight |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- Clear polycarbonate terminal retainer, impact modified PBT housing, white Valox® cord clamp
- Polypropylene with neoprene gasket closure cap and strap material
- 2 hp line to line, 1 hp line to neutral horsepower
- 0.08 in (2) steel nickel plated terminal clamp
- #10-32 brass (white finish on neutral screw when used) multiple drive terminal screw
- Stainless steel, multi-drive cord clamp screw, stainless steel, multi-drive body holding screws
- Brass contact spring, brass spring binding plate, 0.031 in brass ground contact
- Molded-in or stamped-on ratings, withstands 2000 VAC minimum dielectric voltage
- Cord mounted
- Insulated body
- Natural white nylon body contact carrier material
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Superior cord grip design protects terminations from excess strain
