Wiring Device-Kellems HBL2423SW

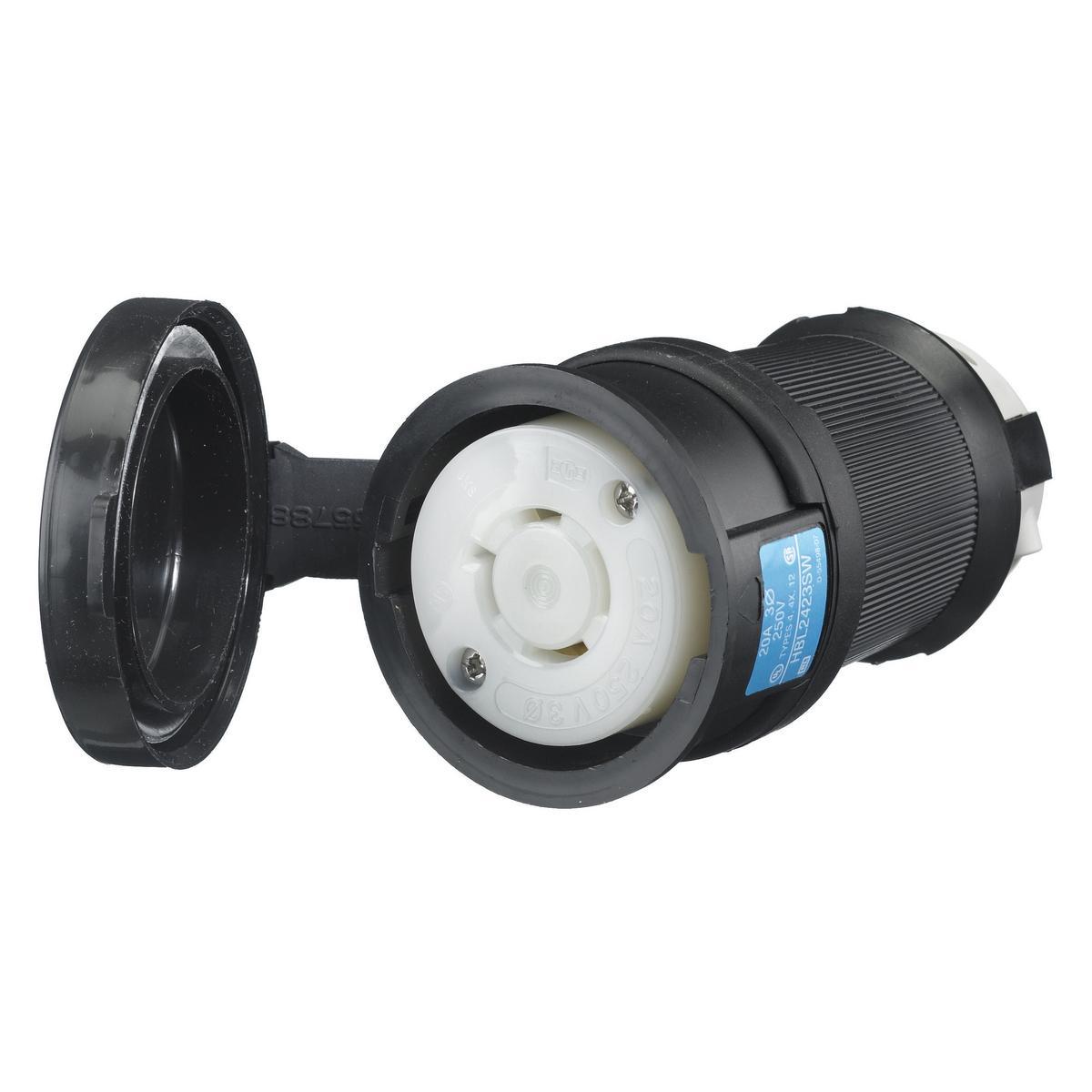

Wiring Device-Kellems HBL2423SW 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount Female Connector, 250 Delta VAC, 20 A, 3 Poles, 4 Wires, Black/White
- Manufacturer Name: Hubbell
- MPN: HBL2423SW
- Brand Name: Wiring Device-Kellems
- UPC: 783585231389
- FEPN: HBL2423SW HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2423SW, Female Connector, 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount, 250 Delta VAC, 20 A, 3 hp, 3 Pole, 4 Wires, L15-20R/WD1/WD5 NEMA Rating, Industrial Grade, NEMA 4/4X/12/IP66 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 2.75 x 2.75 x 4.4 in Dimensions
| Cord Diameter | : | 0.35 to 1.15 in |
| Dimensions | : | 2.75 x 2.75 x 4.4 in |
| Enclosure | : | NEMA 4/4X/12/IP66 |
| Grade | : | Industrial |
| Horsepower | : | 3 hp |
| Material | : | Composite |
| NEMA Rating | : | L15-20R/WD1/WD5 |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | 3-Phase Isolated Grounding Heavy Duty Shrouded Standard Sized Watertight Cord Mount |
| Voltage Rating | : | 250 Delta VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Black/White |
- One piece, engineered thermoplastic housing is impact resistant for heavy duty industrial environments
- Cord mounted
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design for flat cable protects terminations from excess strain
- UL Type 4X environmental seal protects connection while in use
- 12 to 10 AWG conductor
