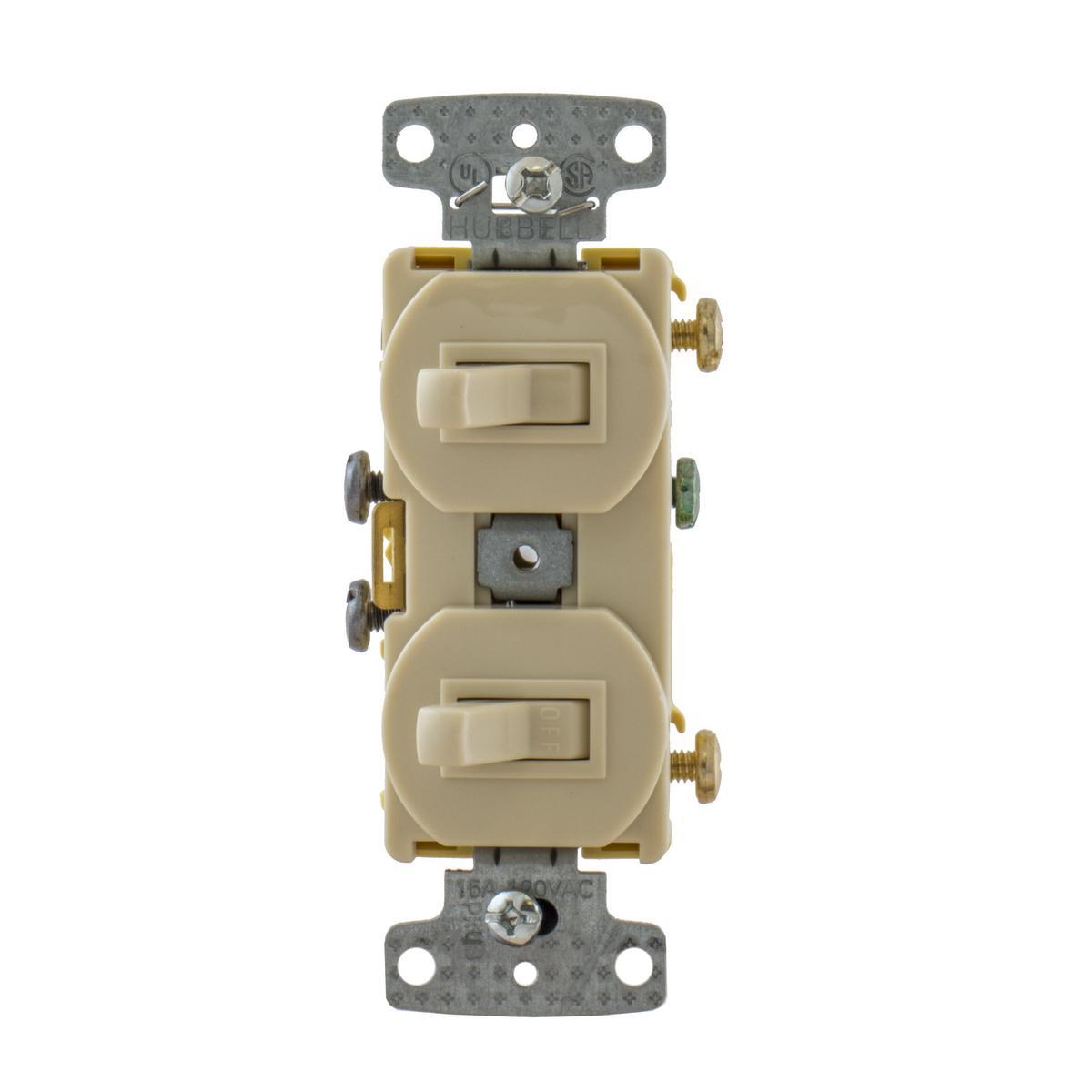

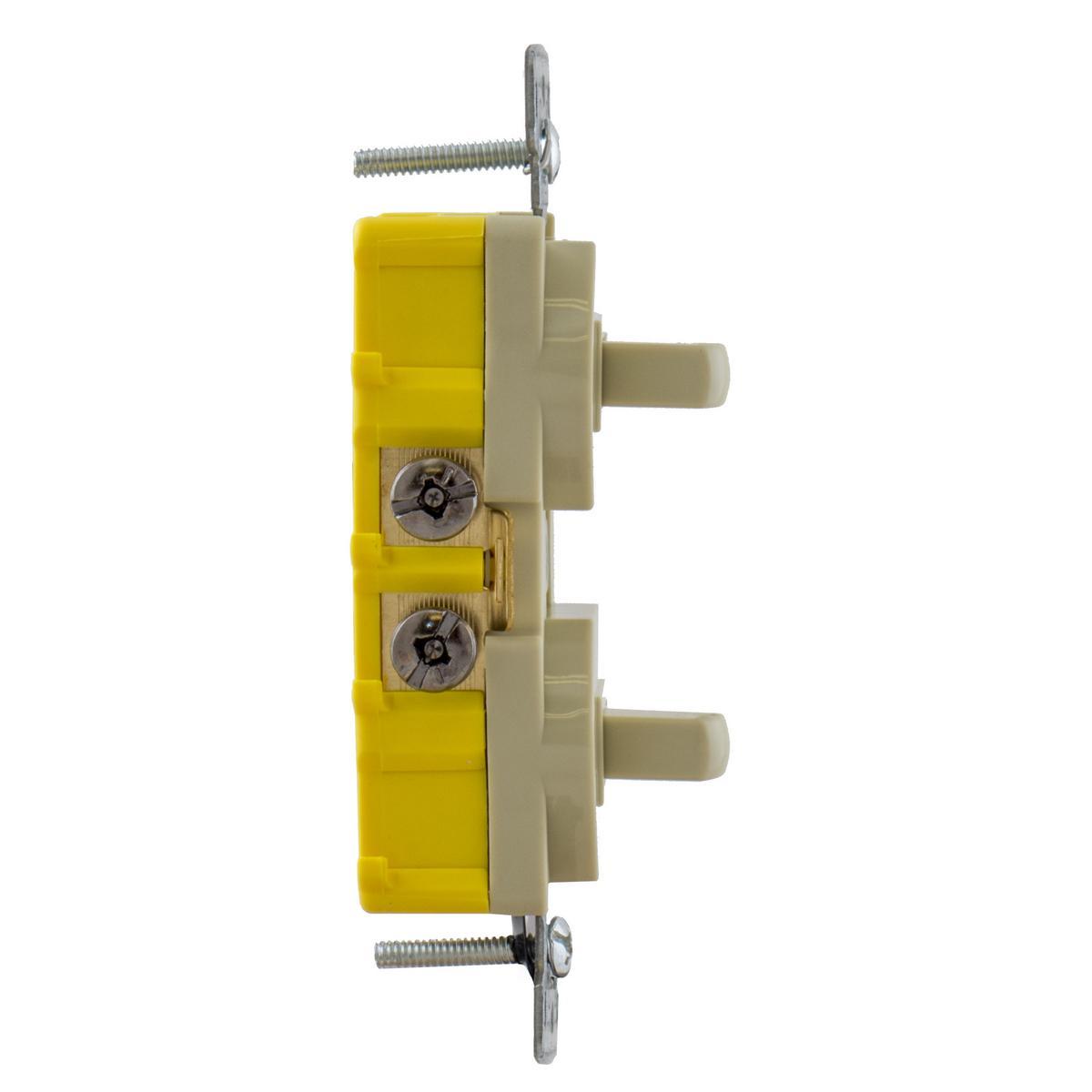

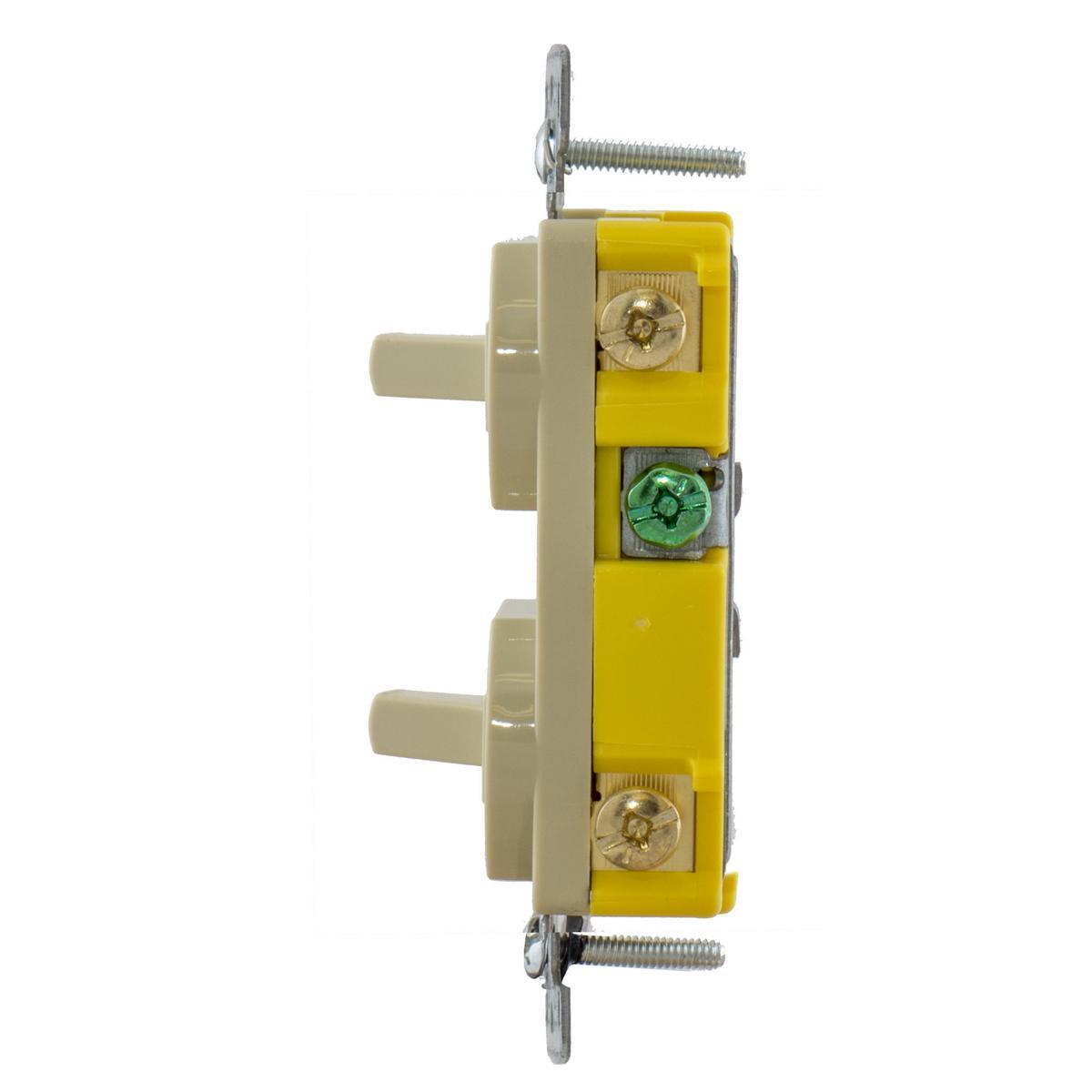

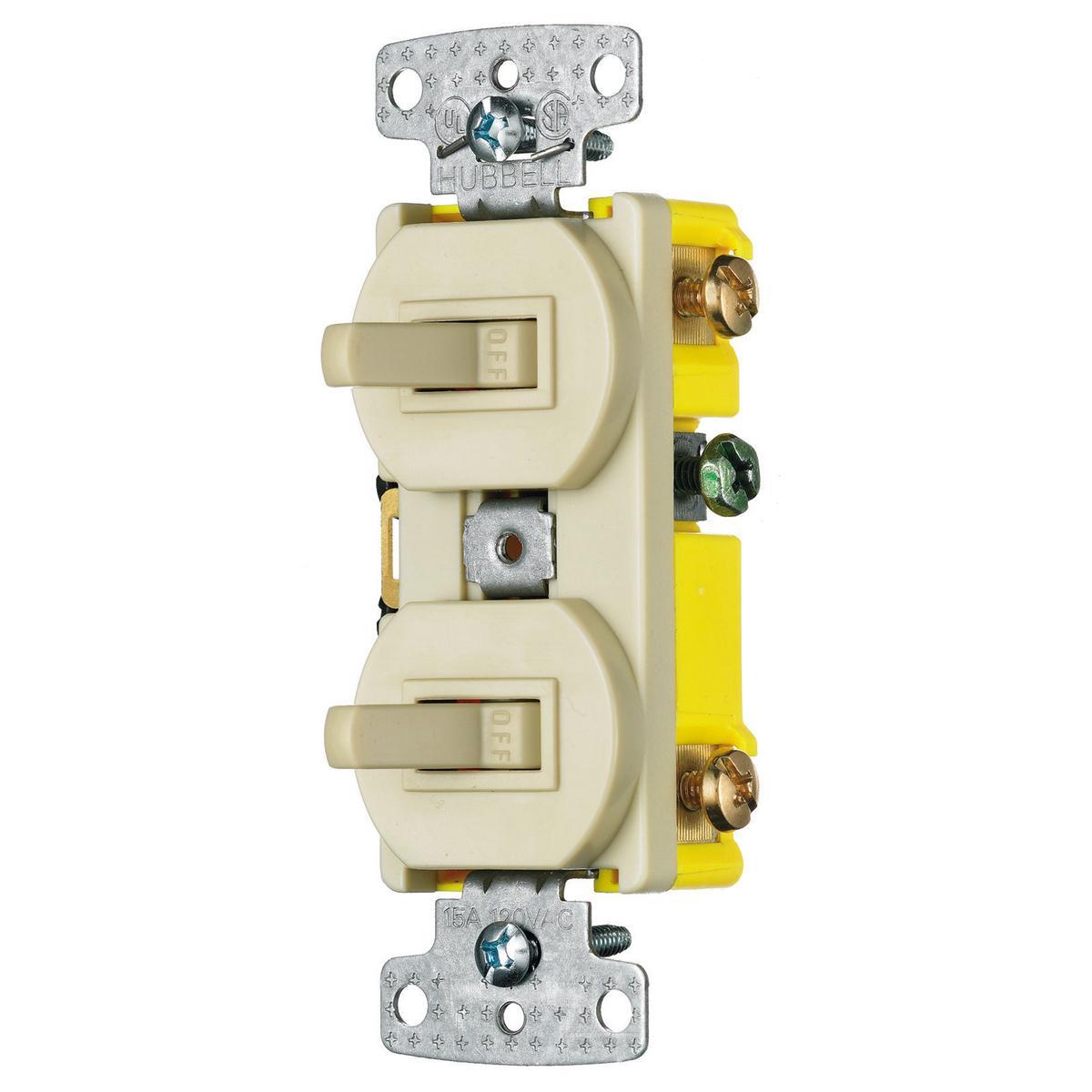

Wiring Device-Kellems RC101I
Wiring Device-Kellems RC101I Traditional 2-Position Standard Traditional Switch Combination Device, Electrical Ratings: 120 VAC, 15 A, 1800 W, 1 Poles
- Manufacturer Name: Hubbell
- MPN: RC101I
- Brand Name: Wiring Device-Kellems
- UPC: 883778109782
- FEPN: RC101I HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, RC101I, Switch Combination Device, 2-Position Standard Traditional, Series: Traditional, 120 VAC, 15 A, 1800 W Electrical Rating, 1 Pole, 15 A Contact, Threaded Mounting, 4.2 in H x 1.32 in W x 1.53 in D Size, 30000 Cycles Operating Cycles, Environmental Conditions: -20 to 60 deg C Without Impact Operating Temperature, Ivory
| Color | : | Ivory |
| Contact Rating | : | 15 A |
| Environmental Conditions | : | -20 to 60 deg C Without Impact Operating Temperature |
| Mounting | : | Threaded |
| Operating Cycles | : | 30000 Cycles |
| Series | : | Traditional |
| Size | : | 4.2 in H x 1.32 in W x 1.53 in D |
| Type | : | 2-Position Standard Traditional |
| Electrical Ratings | : | 120 VAC, 15 A, 1800 W |
| Number of Poles | : | 1 |
- Self-grounding feature is standard
- Indoor dry unless protected by additional mean environmental conditions
- High visibility yellow base for easy installation
- Mini-toggles provide for multiple switches in a compact single gang
- Maximize control while maintaining function and appearance
- Low profile, less than 1 in depth
- Smooth toggle action
- Multiple drive slot/Phillips/Robertson head screws
- Elongated strap with continuous plaster ears
- Side wired connectivity
- Brass rocker contacts and terminal, zinc plated steel bridge, center fasteners and mounting screws, plastic base, cover, toggle, spring housing and washers
- Stainless steel grounding spring, silver switch contact, steel spring
- Quiet snap action mechanism
