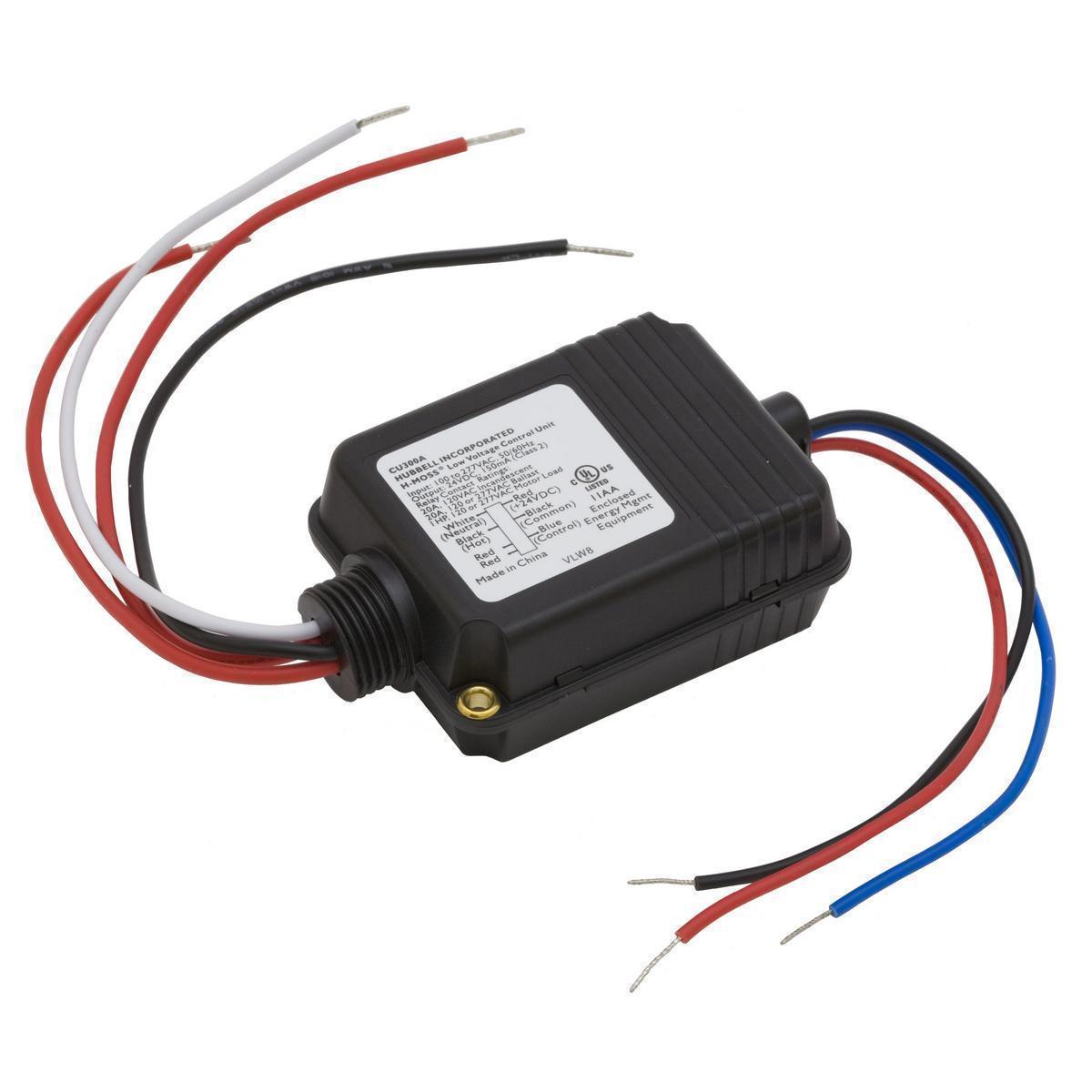

Wiring Device-Kellems CU300M
Wiring Device-Kellems H-MOSS® CU300M Momentary Version Control Unit, 120/277 VAC, 8/16 A, 0 to 1800 W at 120 VAC Incandescent, 0 to 2400 W at 277 VAC Ballast, 0 to 5540 W Ballast Power Rating, 3.69 in L x 2.33 in W x 1.36 in H
- Manufacturer Name: Hubbell
- MPN: CU300M
- Brand Name: Wiring Device-Kellems
- UPC: 783585159362
- FEPN: CU300M HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems H-MOSS® Control Unit, Momentary Version, 120/277 VAC, 8/16 A, 0 to 1800 W at 120 VAC Incandescent, 0 to 2400 W at 277 VAC Ballast, 0 to 5540 W Ballast Power, 3.69 in L x 2.33 in W x 1.36 in H Size, 50/60 Hz Response, Wire Lead Connection, 6000 Cycles Minimum Operating Time Period, Threaded Mounting, 32 to 104 deg F, Black
| Color | : | Black |
| Connection Type | : | Wire Lead |
| Mounting Type | : | Threaded |
| Response Frequency | : | 50/60 Hz |
| Temperature Rating | : | 32 to 104 deg F |
| Time Period | : | 6000 Cycles Minimum Operating |
| Type | : | Momentary Version |
| Voltage Rating | : | 120/277 VAC |
| Amperage Rating | : | 8/16 A |
| Power Rating | : | 0 to 1800 W at 120 VAC Incandescent, 0 to 2400 W at 277 VAC Ballast, 0 to 5540 W Ballast |
| Size | : | 3.69 in L x 2.33 in W x 1.36 in H |
- Automatic voltage detection eliminates the need for specialized wiring
- Manual ON operation
- Zero arc point switching minimizes relay contact
- Easily mounts inside or outside a junction box or inside a fluorescent fixture ballast cavity
- Plenum rated
Specification Sheet
