The D3 Series of relays provides excellent functionality in a popular octal base design. Rigid pins and guide allow for quick and easy installation with little risk of damage.

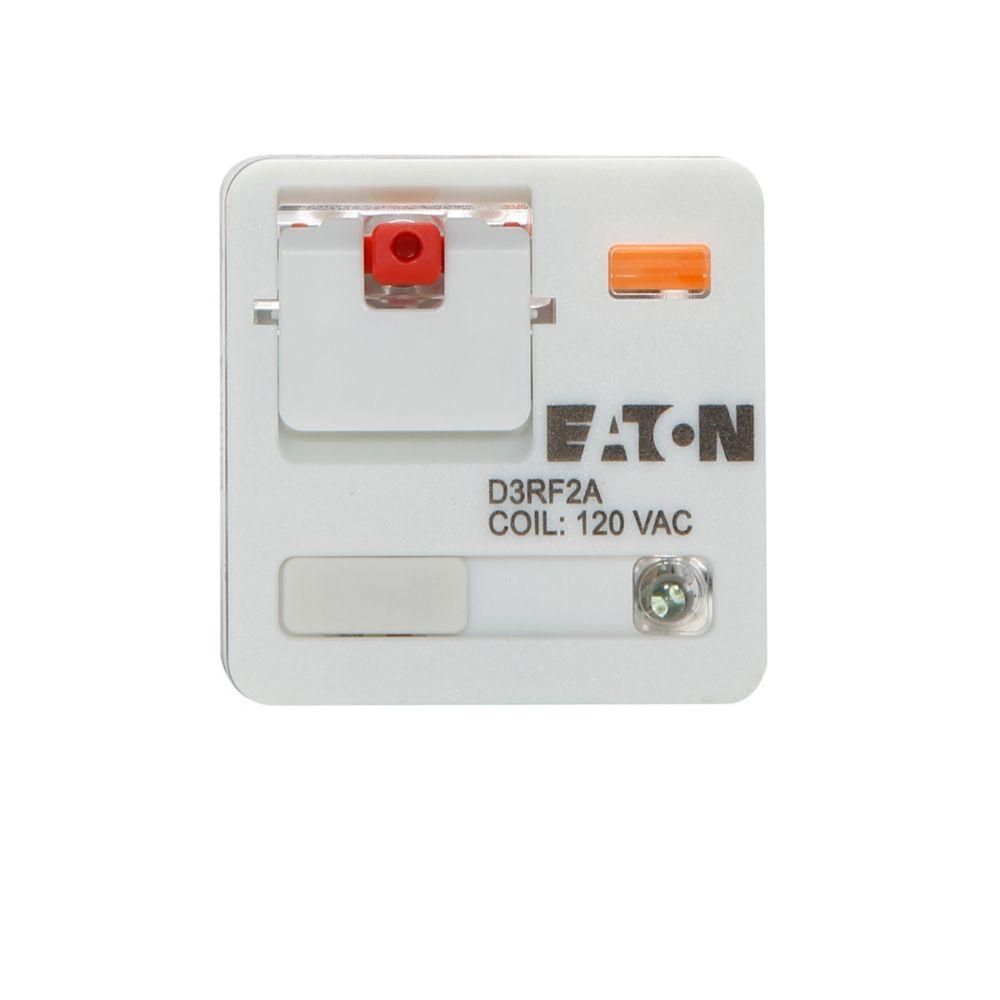

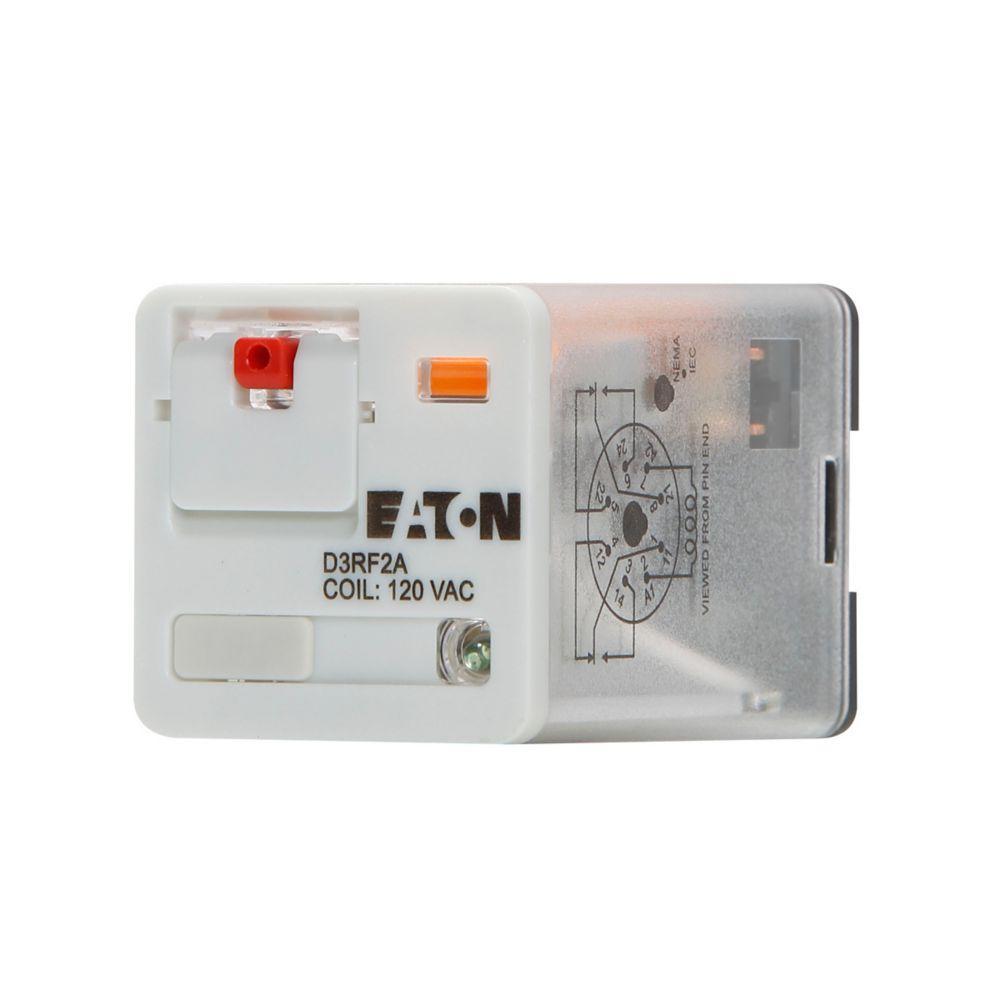

EATON General Purpose Relay, Ice Cube Full Featured, Series: D3, 10 A, 120 VAC Coil, DPDT, 10 A Contact, 8 Pins, Octal Base, 2 Pole, Socket Mount, Plug-In Terminal, LED, IP40, -40 to 131 deg F, 2.2 in L x 1.37 in W x 1.39 in H
| Base Type | : | Octal |
| Contact Rating | : | 10 A |
| Dimensions | : | 2.2 in L x 1.37 in W x 1.39 in H |
| Display Type | : | LED |
| Enclosure Type | : | IP40 |
| Mounting Type | : | Socket |
| Number of Poles | : | 2 |
| Series | : | D3 |
| Temperature Rating | : | -40 to 131 deg F |
| Terminal Type | : | Plug-In |
| Type | : | Ice Cube Full Featured |
| Amperage Rating | : | 10 A |
| Number of Pins | : | 8 |
| Contact Form | : | DPDT |
| Coil Voltage | : | 120 VAC |
- The contact operation can be easily checked by push to-test button
- Flag indicator shows relay status in manual or powered condition
- LED status lamp shows coil ON or OFF status ideal for use in low light applications
- Push-to-test button allows for manual operation of relay without the need for coil power
- Lock-down door holds pushbutton and contacts in the operate position when activated
- Finger grip cover allows operator to remove relays from sockets easily
- ID tag/write label to identify relays in multiple relay circuits
- Bipolar LED allows for reverse polarity applications
