EATON is your one-stop shop for the widest range of residential and light commercial electric meter sockets in the industry. These single-socket surface or flush-mount outdoor enclosures come in two styles, allowing for both easy, cost-saving installation and for the use of BR or CH type branch breakers. The one-piece, die-run electric meter socket enclosures eliminate tampering and extend product life. These are utility approved and can be used for residential meter socket installations, rural service entrances, mobile homes or for temporary power on construction sites.

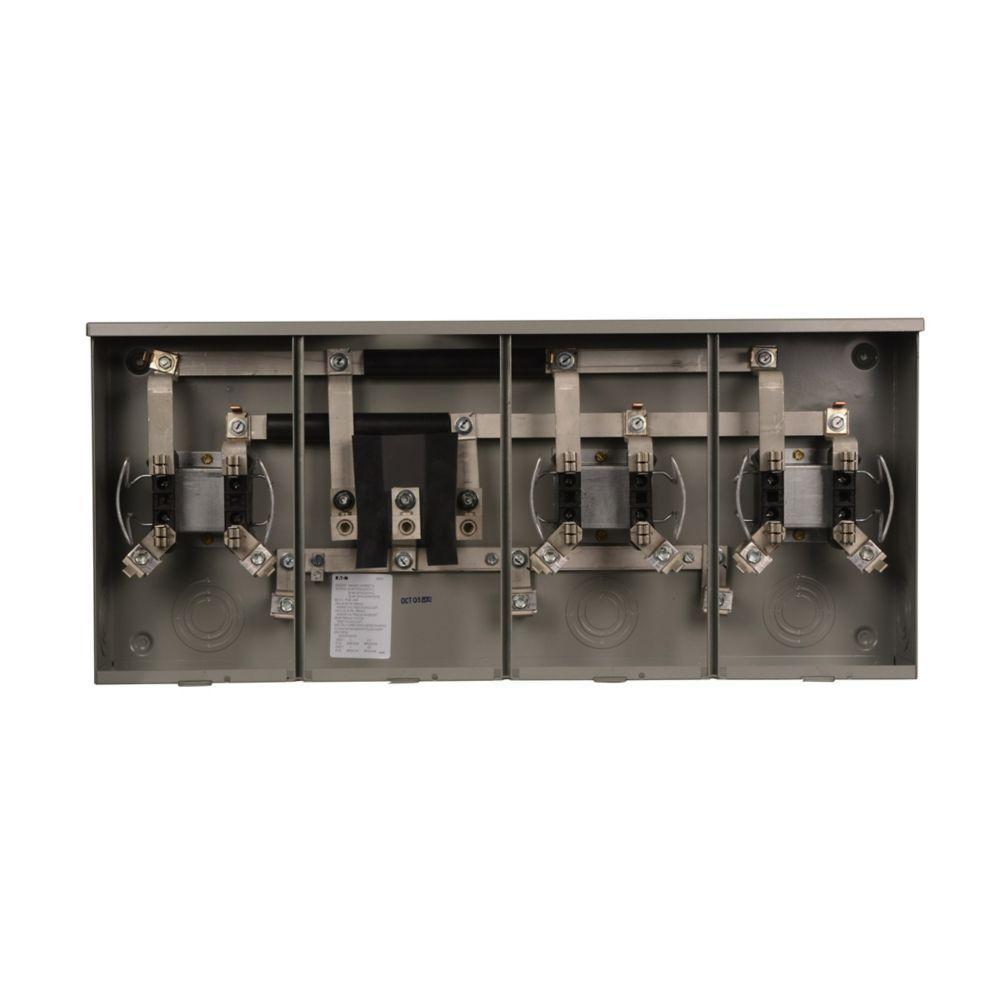

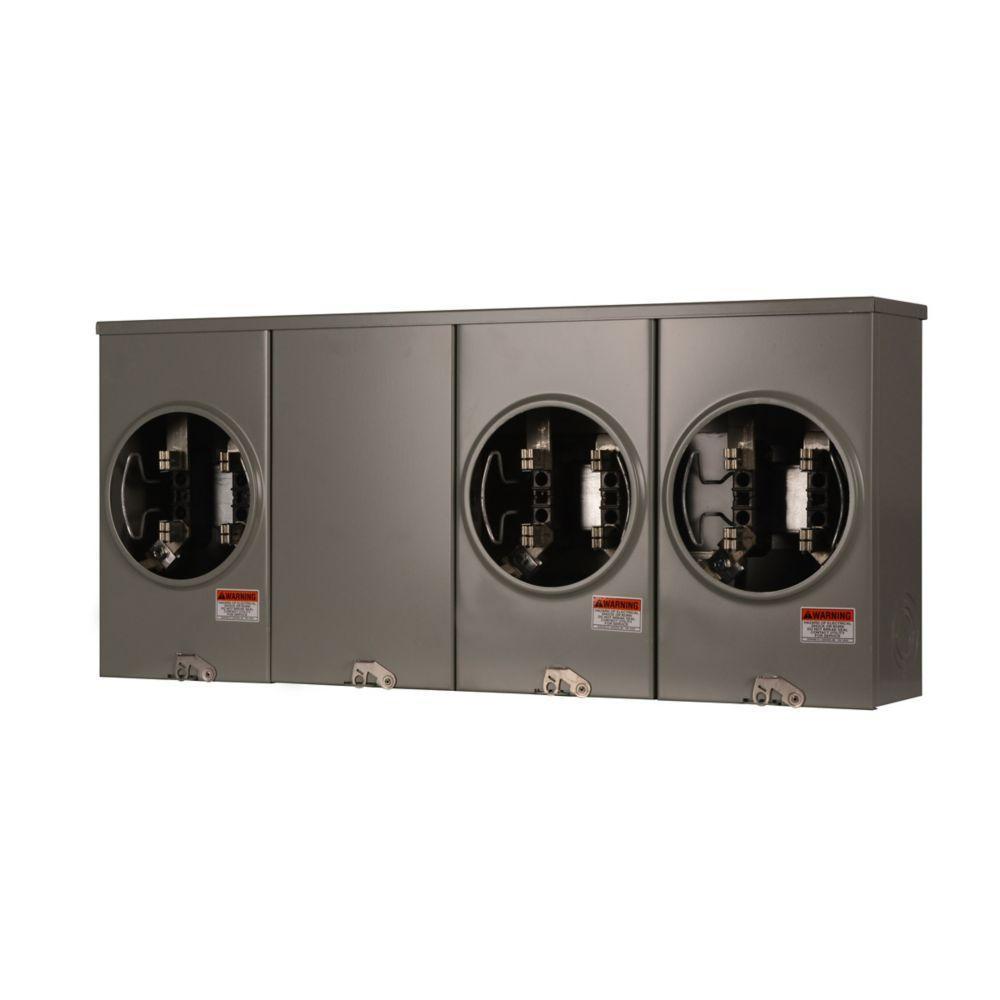

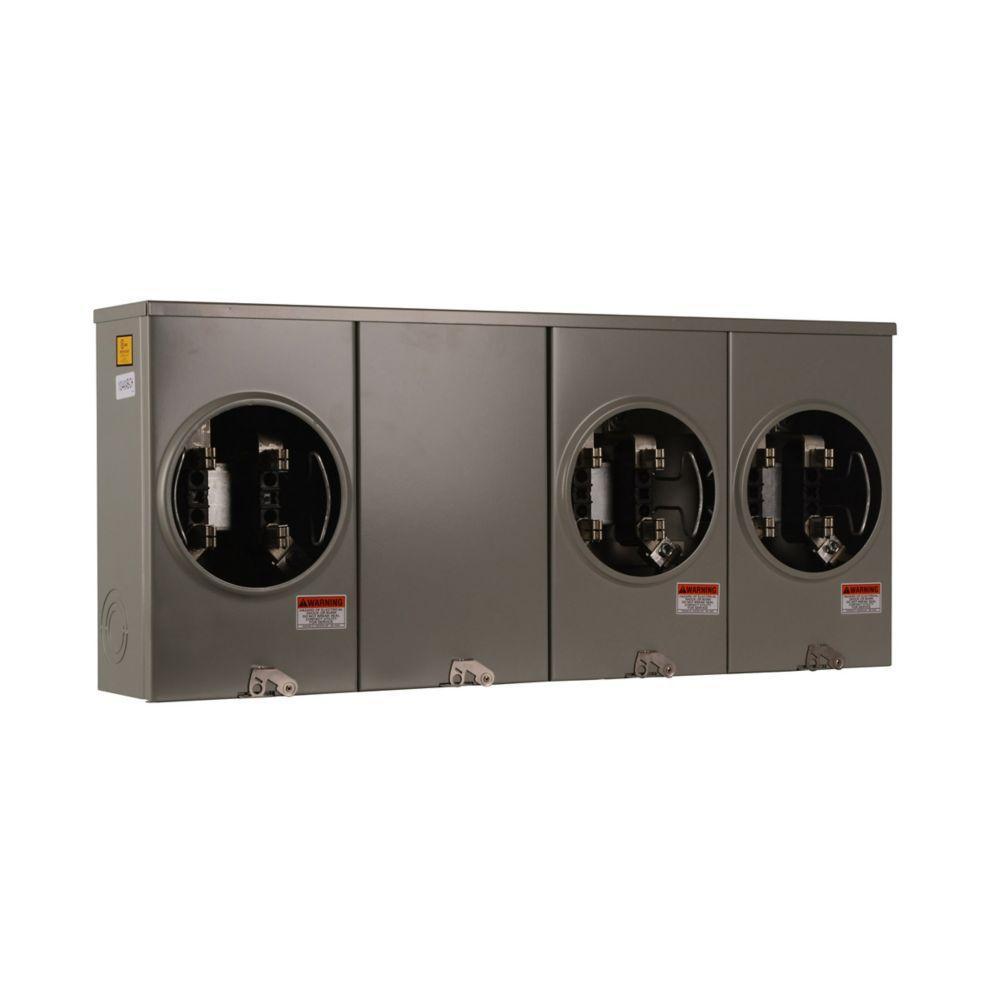

EATON Meter Socket, 3-Wire Multi-Position, 600 VAC, 100 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Line, 8 to 2/0 AWG Load, 14 to 2 AWG Cu Ground Wire, 3-5/16 in Hub, Ringless Cover, Flush Mount, 4.5 in L x 48.78 in W x 14.13 in H
| Cover Type | : | Ringless |
| Dimensions | : | 4.5 in L x 48.78 in W x 14.13 in H |
| Feed Type | : | Overhead/Underground |
| Hub Size | : | 3-5/16 in |
| Mounting Type | : | Flush |
| Number of Jaws | : | 4 |
| Type | : | 3-Wire Multi-Position |
| Wire Size | : | 6 AWG to 250 kcmil Line, 8 to 2/0 AWG Load, 14 to 2 AWG Cu Ground |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 100 A |
| Phase | : | 1 |
- Single socket surface or flush mount outdoor enclosures mean simple installation that saves time and money
- One piece, die-run enclosure eliminates tampering and extends product life
- Integral triplex or quadplex ground extruded in neutral lug, having just one piece for terminating incoming/outgoing neutral conductors increases the integrity of connections
- Block assembly base exceeds 400 in-lb of torque, which provides durability under the most extreme installation circumstances
- Horn bypass
- Triplex ground
