For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

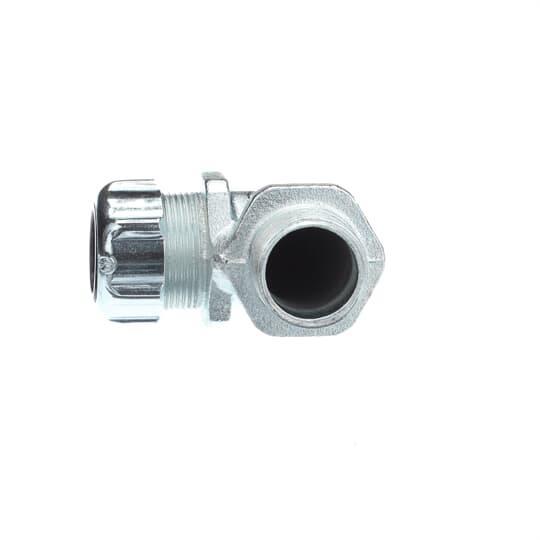

T&B® Cord Connector, Liquidtight Strain Relief, 3/4 in, Cable Openings: 1/2 to 5/8 in, S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD Cable, Thread, 90 deg, Malleable Iron, Zinc Plated, Metallic, 105 deg C, 1-3/8 in L x 1-5/8 in W
| Angle | : | 90 deg |
| Cable Type | : | S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD |
| Color | : | Metallic |
| Connection Type | : | Thread |
| Dimensions | : | 1-3/8 in L x 1-5/8 in W |
| Temperature Rating | : | 105 deg C |
| Type | : | Liquidtight Strain Relief |
| Trade Size | : | 3/4 in |
| Cable Openings | : | 1/2 to 5/8 in |
| Material | : | Malleable Iron |
| Finish | : | Zinc Plated |
- 1/2 in L thread
- 25/32 in Dia throat
- Extended range with superior strain relief
- Gland nut designed to restrict cable bending
