Wiring Device-Kellems HBLDS6AC

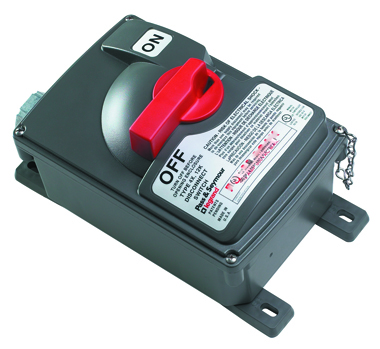

Wiring Device-Kellems Circuit-Lock® HBLDS6AC 2-Position Non-Fusible Standard Enclosed Disconnect Switch With Auxiliary Contacts, 600 V, 60 A, 50 hp, 2-Position Contact, 3 Poles
- Manufacturer Name: Hubbell
- MPN: HBLDS6AC
- Brand Name: Wiring Device-Kellems
- UPC: 783585430737
- FEPN: HBLDS6AC HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Circuit-Lock® Enclosed Disconnect Switch, 2-Position Non-Fusible Standard, 600 V, 60 A, 50 hp, 3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 2-Position Contact Form, Lever Actuator, NEMA 4X Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 11 x 7.75 x 5.94 in, Composite, Gray
| Actuator Type | : | Lever |
| Color | : | Gray |
| Dimensions | : | 11 x 7.75 x 5.94 in |
| Enclosure Type | : | NEMA 4X |
| Frequency Rating | : | 60 Hz |
| Material | : | Composite |
| Mounting Type | : | Foot |
| Number of Wires | : | 3 |
| Phase | : | 3 |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 2-Position Non-Fusible Standard |
| Voltage Rating | : | 600 V |
| Amperage Rating | : | 60 A |
| Horsepower | : | 50 hp |
| Contact Form | : | 2-Position |
| Number of Poles | : | 3 |
- Adjustable mounting feet
- Stainless steel hardware for corrosion resistance
- Lockable handle to meet OSHA lockout tag out regulations
- Non metallic enclosure, non conducting
- Internal frame automatically bonds all grounds
- Reversible interior accomodates top or bottom conduit opening
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
Line Drawing
