Wiring Device-Kellems WS2000I

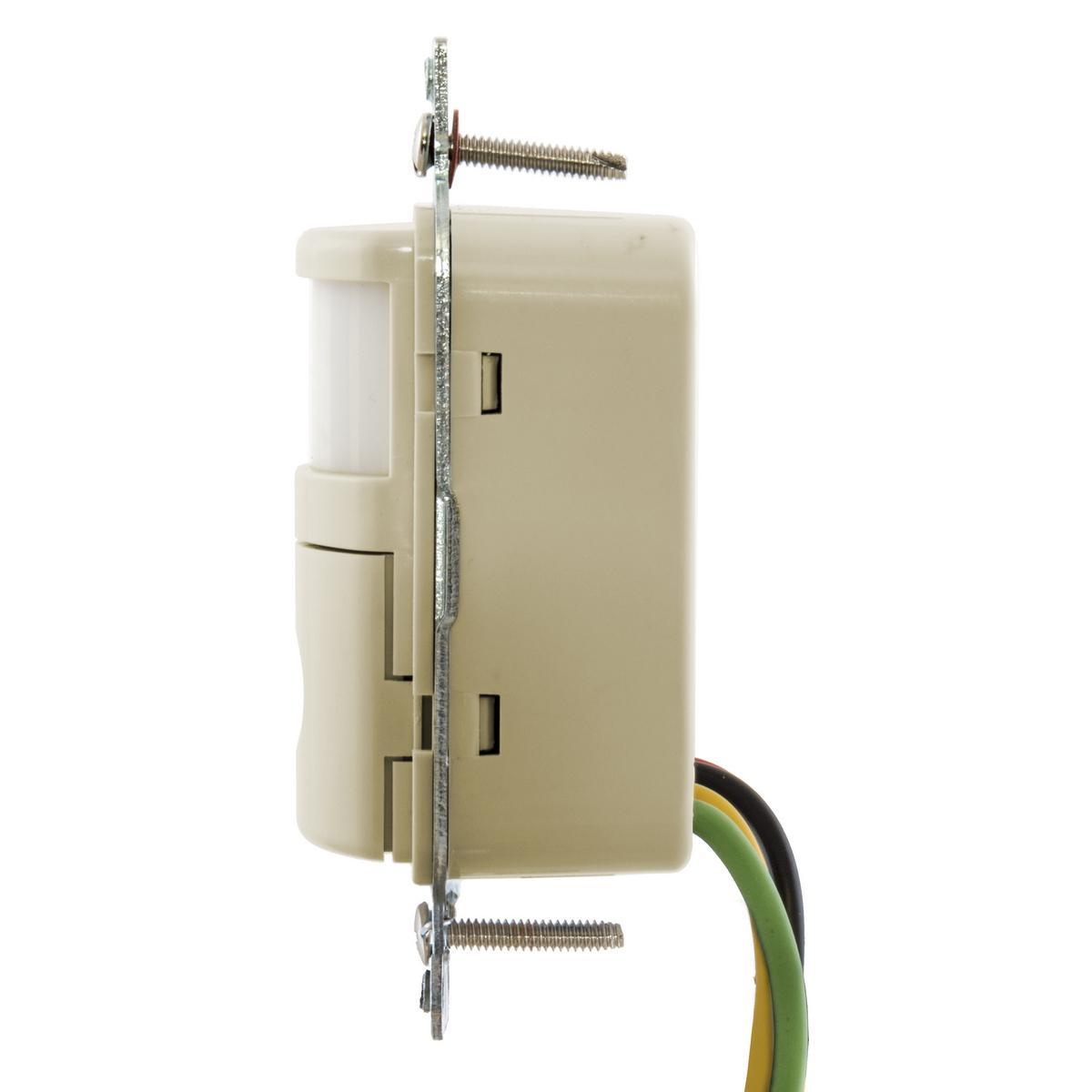

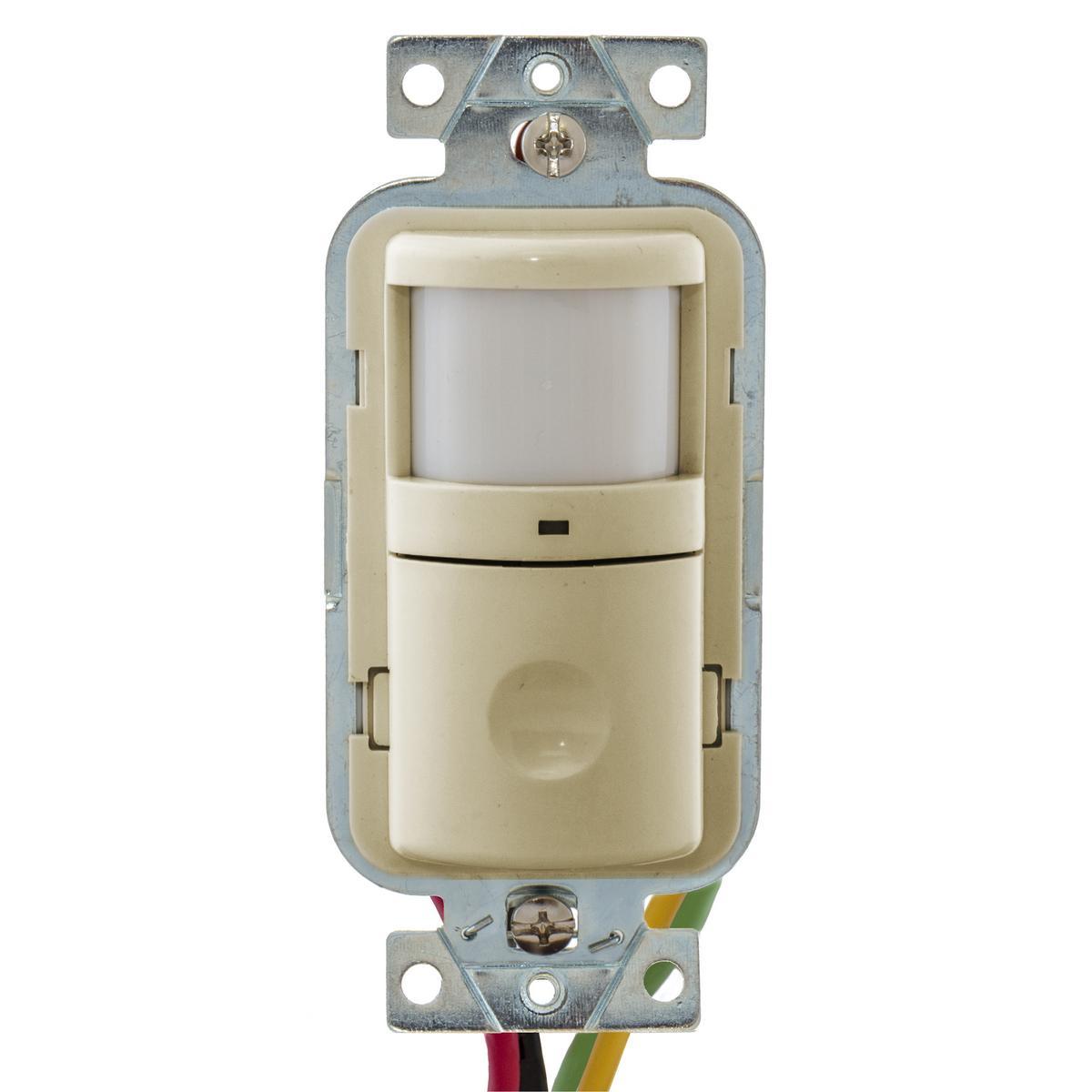

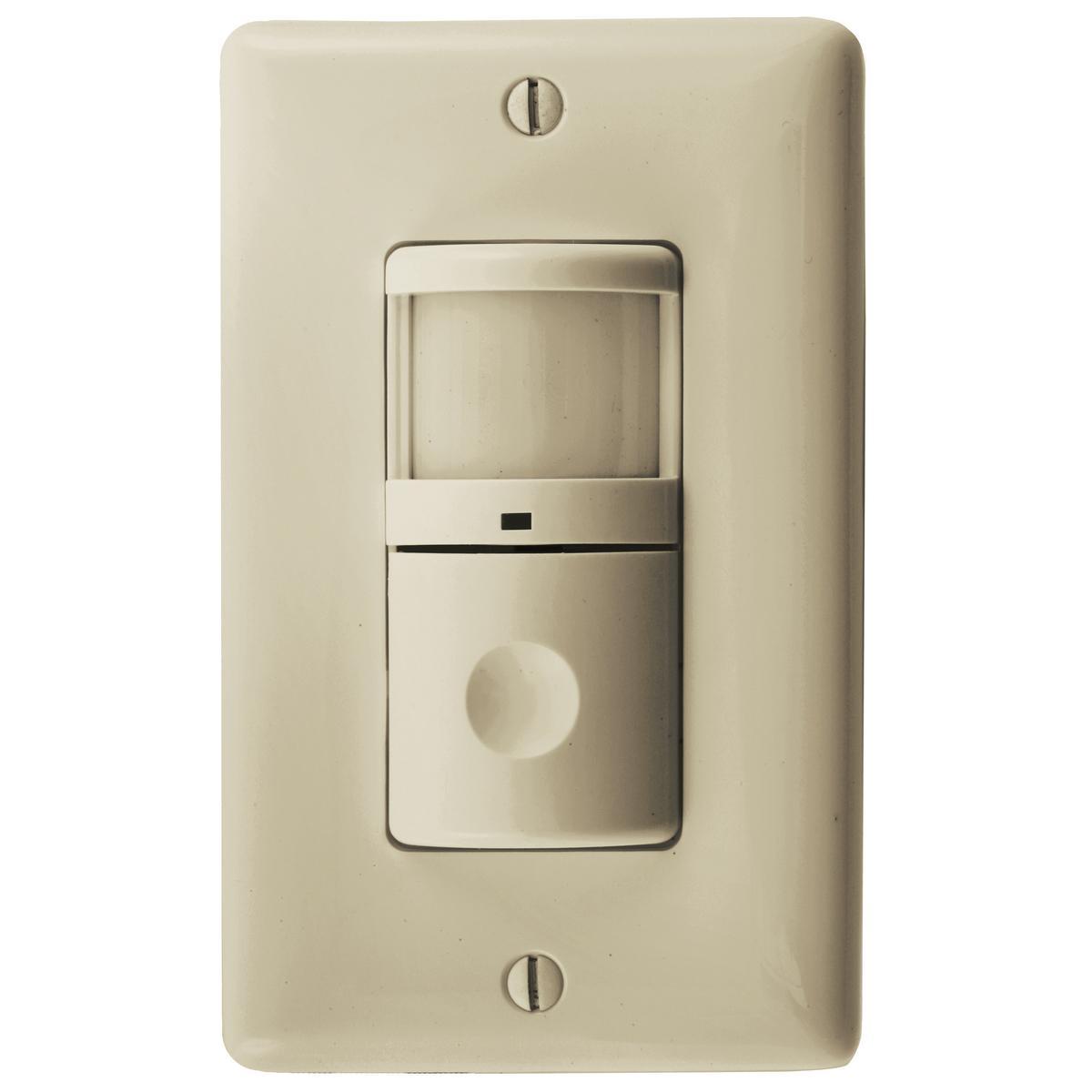

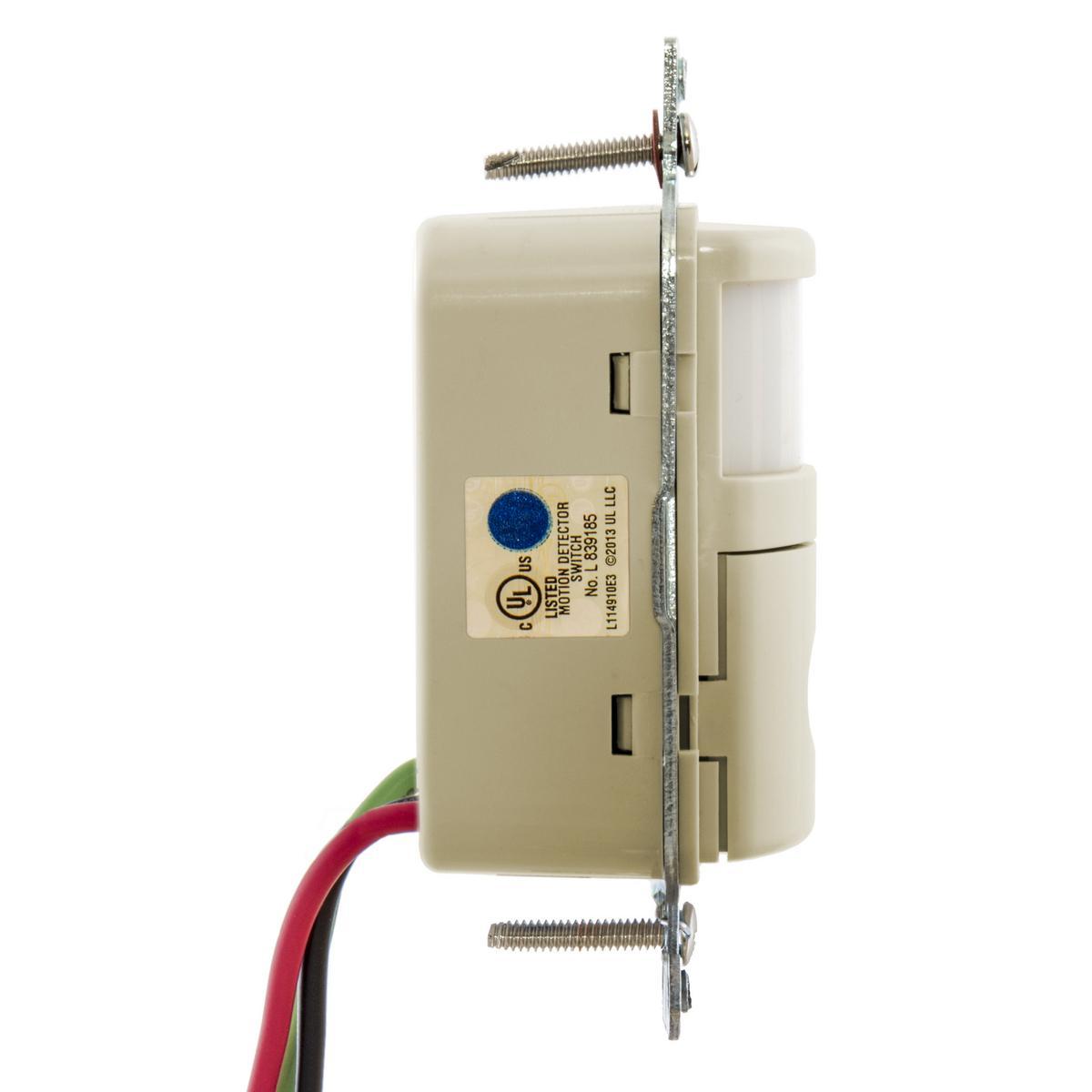

Wiring Device-Kellems H-MOSS® WS2000I 3-Way Adjustable Occupancy Sensor Switch, 120/277 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, Threaded Mount
- Manufacturer Name: Hubbell
- MPN: WS2000I
- Brand Name: Wiring Device-Kellems
- UPC: 783585256306
- FEPN: WS2000I HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Hubbell® WS/ATP series wall switches combine PIR sensing technology, photocell control and Hubbell® patented three wire method to provide the perfect light switch replacement solution. These sensors do not require a neutral connection and they have no minimum load requirements. The WS series has manual timer adjustment while the ATP series incorporates Hubbell® patented adaptive technology to automatically set timing and eliminate manual adjustments. The sensors come supplied with color matched faceplates. Manual-ON versions are available for enhanced savings. Four wire models support installations that require a neutral connection.
Wiring Device-Kellems H-MOSS® Occupancy Sensor Switch, 3-Way Adjustable, Series: WS Series, 120/277 VAC, Passive Infrared Sensor, 1000 sq-ft Coverage, 180 deg Viewing, 20 s to 30 min Time Delay, Incandescent Lamp, 60 Hz Response, Screw Terminal Connection, Automatic/Manual On Control Output, Threaded Mounting, 32 to 122 deg F, ABS, Ivory, 1.82 in W x 1.62 in D x 4.15 in H Dimensions
| Color | : | Ivory |
| Connection Type | : | Screw Terminal |
| Control Output | : | Automatic/Manual On |
| Dimensions | : | 1.82 in W x 1.62 in D x 4.15 in H |
| Lamp Type | : | Incandescent |
| Material | : | ABS |
| Response Frequency | : | 60 Hz |
| Series | : | WS Series |
| Temperature Rating | : | 32 to 122 deg F |
| Time Delay | : | 20 s to 30 min |
| Type | : | 3-Way Adjustable |
| Voltage Rating | : | 120/277 VAC |
| Sensor Type | : | Passive Infrared |
| Coverage | : | 1000 sq-ft |
| Viewing Angle | : | 180 deg |
| Mounting Type | : | Threaded |
- Designed for use on 120 or 277 VAC circuits, no neutral required, fast retrofits
- Built-in photocell prevents lights from turning On with sufficient natural light
- Polyethylene lens
- 42 to 54 in above floor mounting height
- Steel mounting strap
- Red LED sensing indicator
- 3-Way capable
