Wiring Device-Kellems IG2410
Send Print
  1. pin-int

Wiring Device-Kellems IG2410

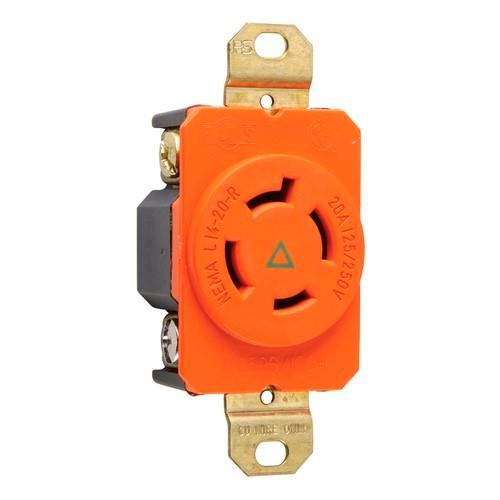

Wiring Device-Kellems IG2410 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Orange

  • Manufacturer Name: Hubbell
  • MPN: IG2410
  • Brand Name: Wiring Device-Kellems
  • UPC: 783585872360
  • FEPN: IG2410 HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems Locking Receptacle, 1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount, 125/250 VAC, 20 A, 1 hp, 3 Pole, 4 Wires, L14-20R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Orange, 3.28 x 1.7 x 1.23 in

Dimensions       :      3.28 x 1.7 x 1.23 in
Grade       :      Industrial
Horsepower       :      1 hp
Material       :      Nylon
NEMA Rating       :      L14-20R
Temperature Rating       :      -40 to 75 deg C
Terminal Type       :      Screw
Type       :      1-Phase Flush Mount Heavy Duty Grounding Standard Single Screw Mount
Voltage Rating       :      125/250 VAC
Amperage Rating       :      20 A
Number of Poles       :      3
Number of Wires       :      4
Color       :      Orange
  • All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • High impact, abuse resistant nylon face
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9c62b5f5d385c5398fab7dacf5b6381dc2ea28197a03efa9d9c1a8b116c6cd3a.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f80334e11041e40404ae87e4e269ec51d370afaa1d790958f3caa6000ac46403.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_HBL2830SW_Catalog.pdf
  • linkVIDEO LINK https://youtu.be/1DnPJu3QNw0
