Wiring Device-Kellems H05091

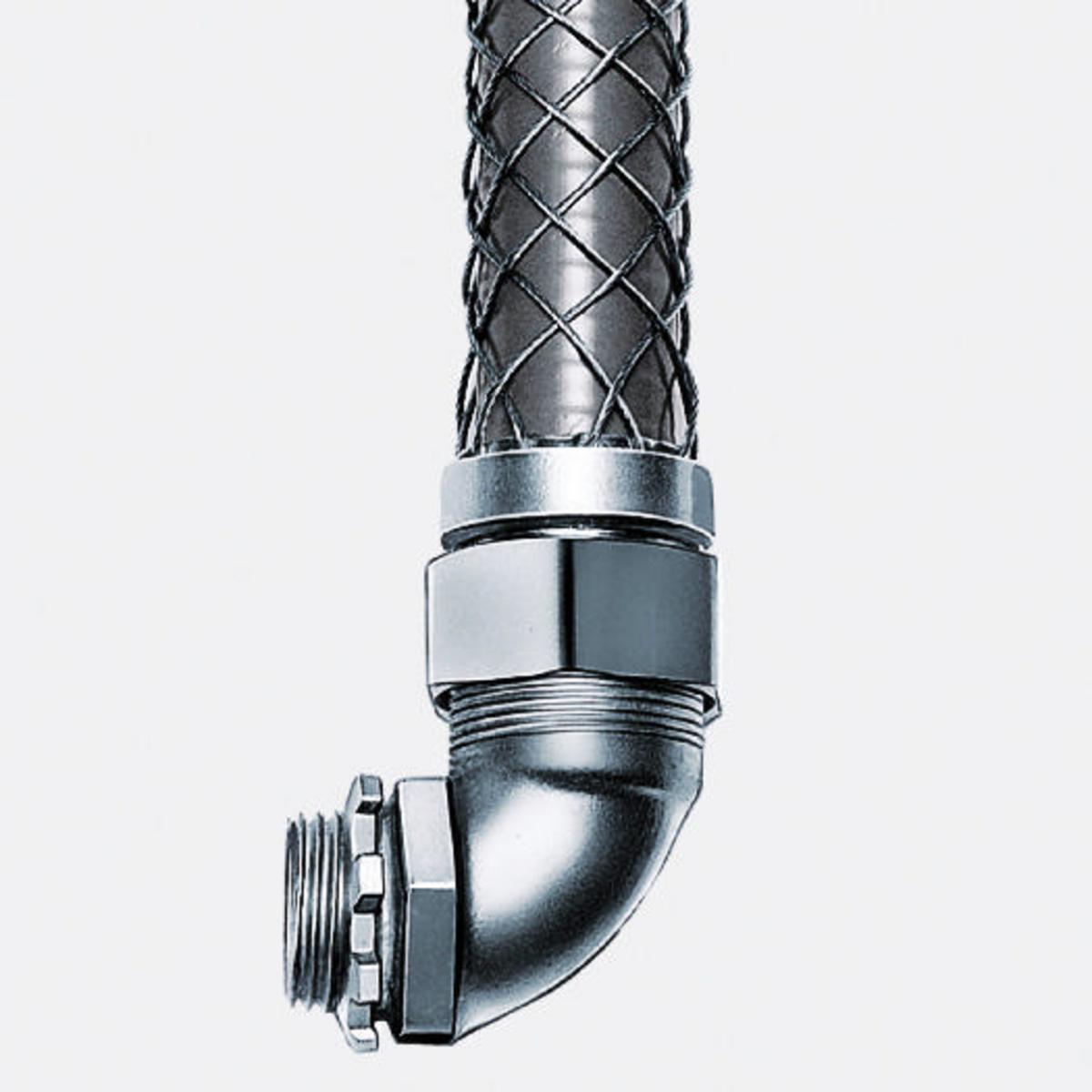

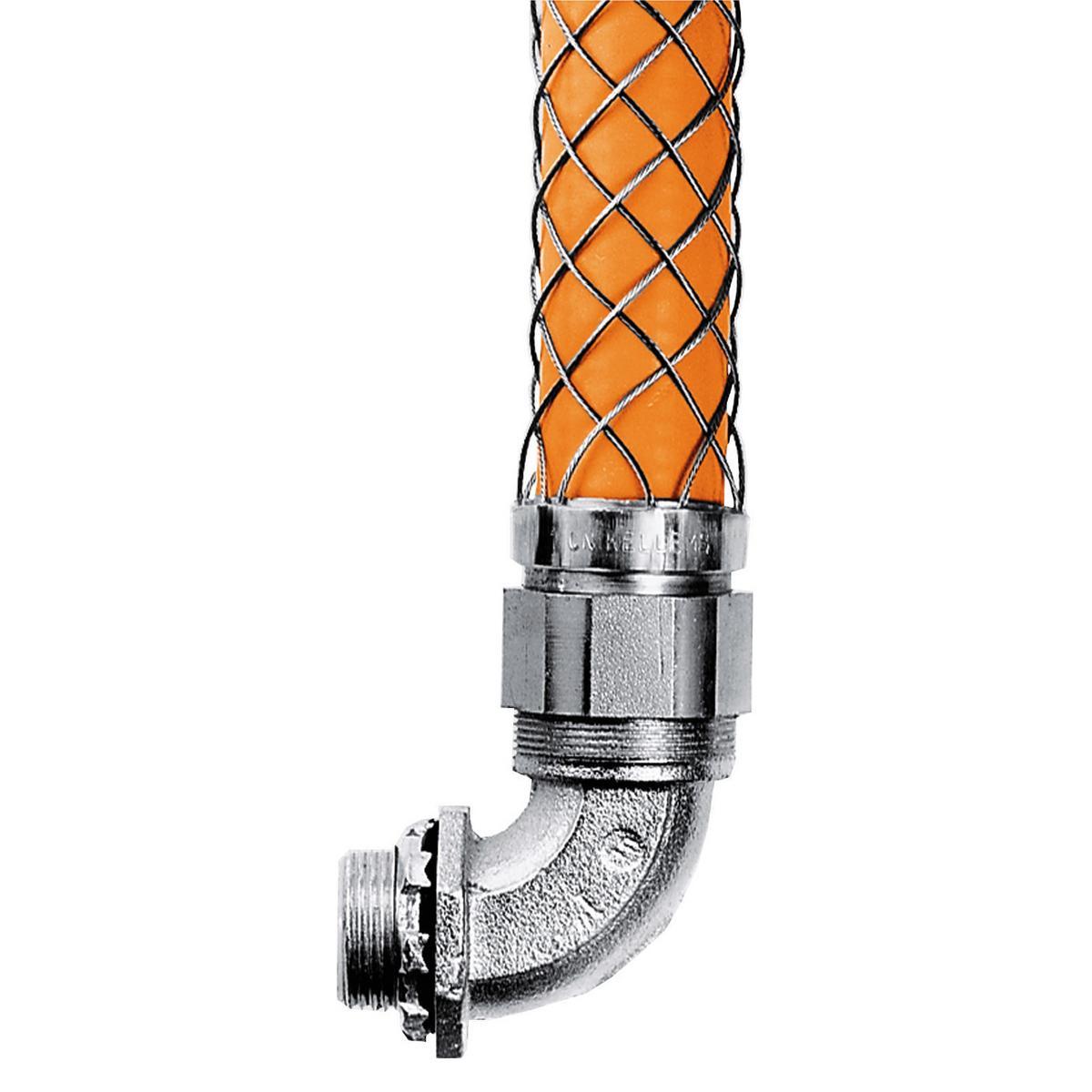

Wiring Device-Kellems H05091 Insulated Male Metallic Liquidtight Connector, 1/2 in Trade, 90 deg, Iron/Steel, Zinc Plated
- Manufacturer Name: Hubbell
- MPN: H05091
- Brand Name: Wiring Device-Kellems
- UPC: 783585035420
- FEPN: H05091 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Liquidtight Connector, Insulated Male Metallic, 1/2 in Trade, 90 deg Angle, 0.61 in Throat, For Use With: PolyTuff® I Non-Metallic and Liquidtight Metal Conduit, Surface Mounting, Iron/Steel, Zinc Plated, 1.31 in L x 1.34 in W Dimensions
| Dimensions | : | 1.31 in L x 1.34 in W |
| Mounting Type | : | Surface |
| Suitable For Use With | : | PolyTuff® I Non-Metallic and Liquidtight Metal Conduit |
| Throat Size | : | 0.61 in |
| Type | : | Insulated Male Metallic |
| Trade Size | : | 1/2 in |
| Angle | : | 90 deg |
| Material | : | Iron/Steel |
| Finish | : | Zinc Plated |
- Hexagonal nut compresses gland-ring onto conduit
- Nylon gasket provides liquid tight seal at hub
- Non integral steel ferrule seals conduit
- Suitable for use in wet locations when a listed sealing ring is used between box and fitting
