Blackburn® AMTD50063

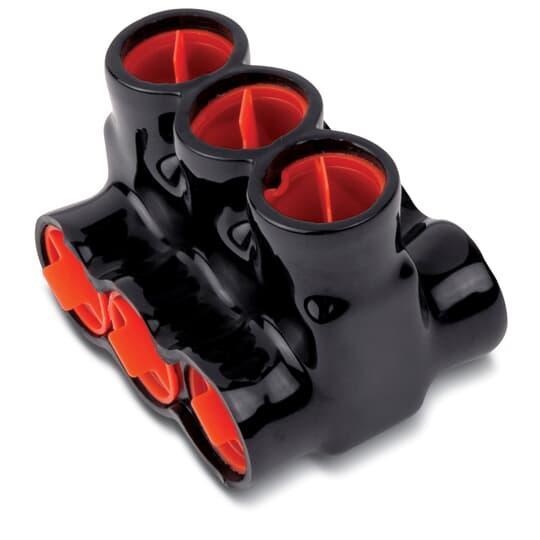

Blackburn® AMTD50063 3-Port Same Sided Multi-Tap Connector, 6 AWG to 500 kcmil Stranded Conductor, 3/8 in Hex Screw Installation, Aluminum
- Manufacturer Name: ABB
- MPN: AMTD50063
- Brand Name: Blackburn®
- UPC: 783786259441
- FEPN: AMTD50063 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® Multi-Tap Connector, 3-Port Same Sided, Series: AMT, Stranded Conductor, 6 AWG to 500 kcmil Conductor, 3/8 in Hex Screw Installation, 600 V AC, Ultraviolet Resistance, 90 deg C, Aluminum, 4.12 in L x 2.63 in W x 3.04 in H Dimensions
| Dimensions | : | 4.12 in L x 2.63 in W x 3.04 in H |
| Resistance | : | Ultraviolet |
| Series | : | AMT |
| Temperature Rating | : | 90 deg C |
| Type | : | 3-Port Same Sided |
| Voltage Rating | : | 600 V AC |
| Conductor Size | : | 6 AWG to 500 kcmil |
| Conductor Type | : | Stranded |
| Installation Type | : | 3/8 in Hex Screw |
| Material | : | Aluminum |
- PVC insulation eliminates insulation failures and reduces outage costs
- Removable port and screw plugs
- Compact design provides space efficiencies
- All cable entry are equipped with an anti-oxidation compound
Specification Sheet
