General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.

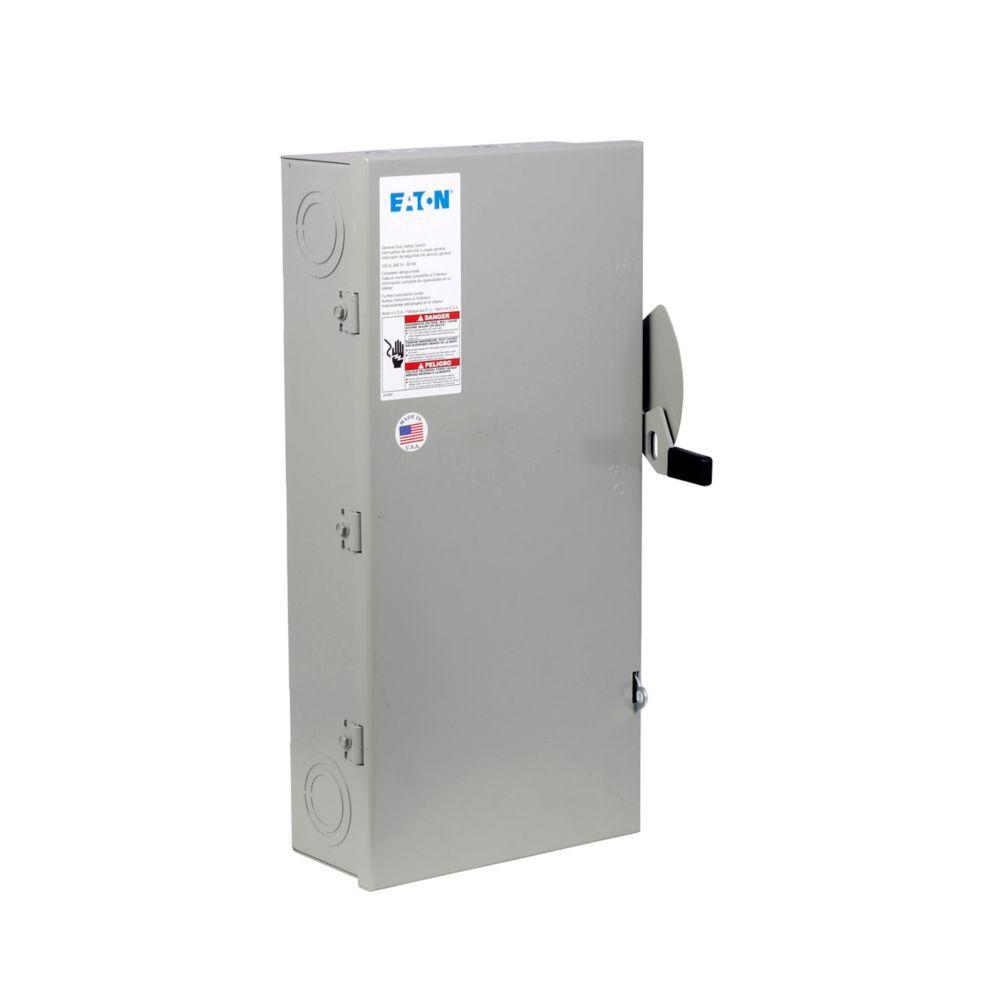

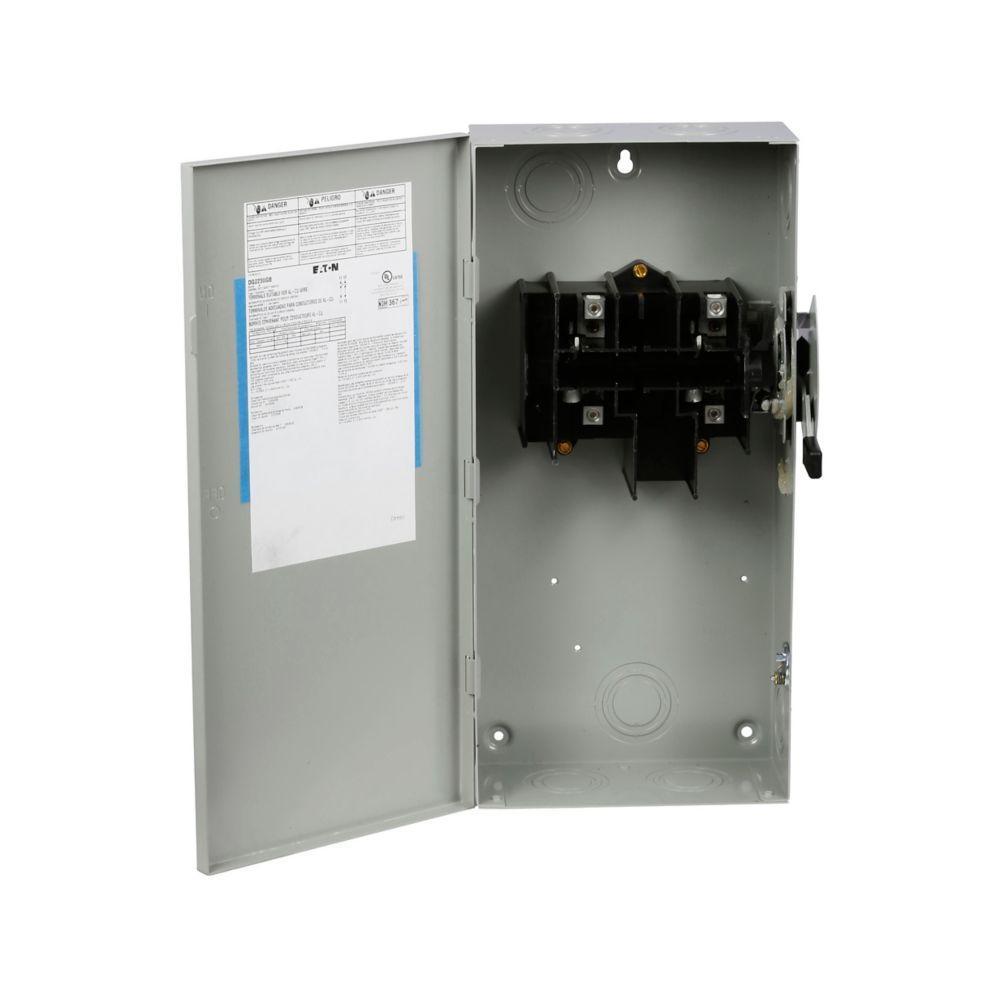

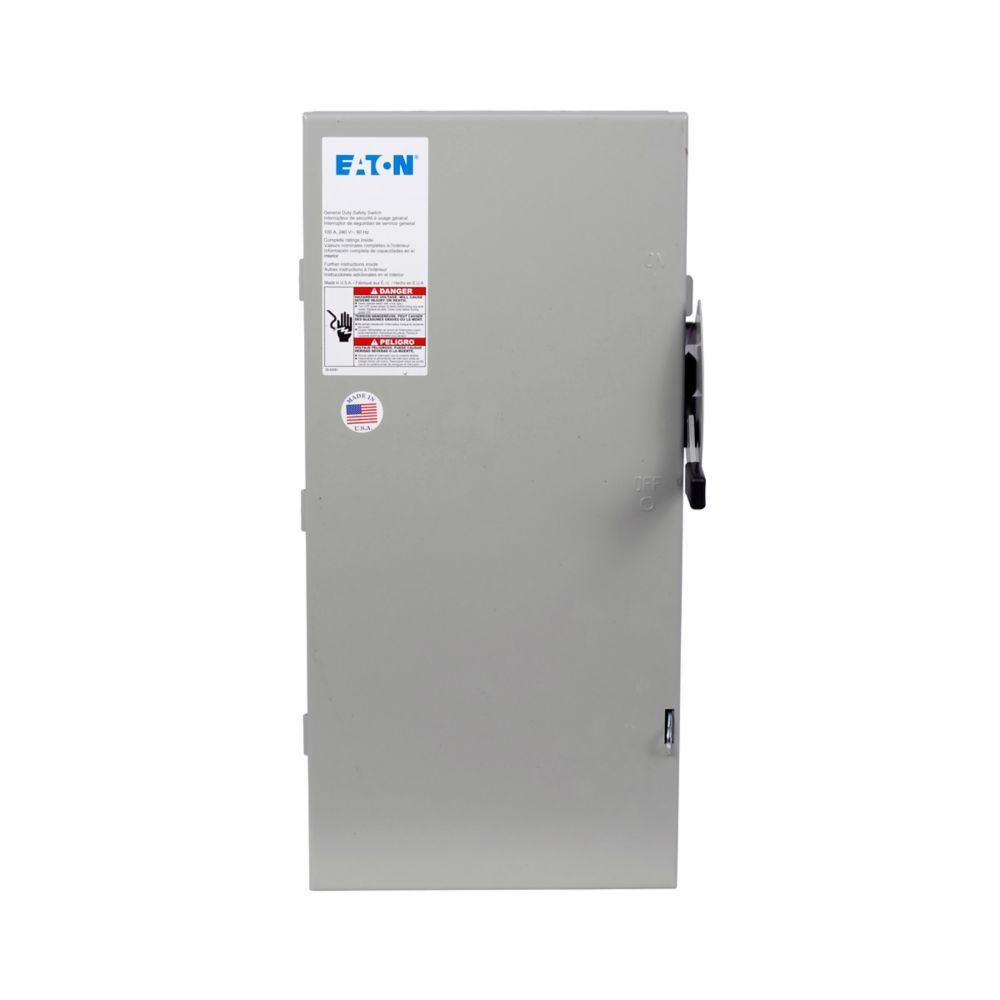

EATON Safety Switch, General Duty Non-Fusible, Series: B Series, 240 VAC, 100 A, 15 hp, 1 ph, 2 Pole, 2 Wires, DPST Contact Form, NEMA 1 Enclosure, Surface Mounting, 7.38 x 9.13 x 6.7 in Dimensions, Steel, Painted
| Dimensions | : | 7.38 x 9.13 x 6.7 in |
| Enclosure Type | : | NEMA 1 |
| Finish | : | Painted |
| Material | : | Steel |
| Mounting Type | : | Surface |
| Number of Wires | : | 2 |
| Phase | : | 1 |
| Series | : | B Series |
| Type | : | General Duty Non-Fusible |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 100 A |
| Horsepower | : | 15 hp |
| Contact Form | : | DPST |
| Number of Poles | : | 2 |
- Used to open or close a circuit
- Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
- Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
- Also commonly referred to as a disconnect switch or disconnect
- Design general duty 30 to 100 A
