The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer's challenging applications.

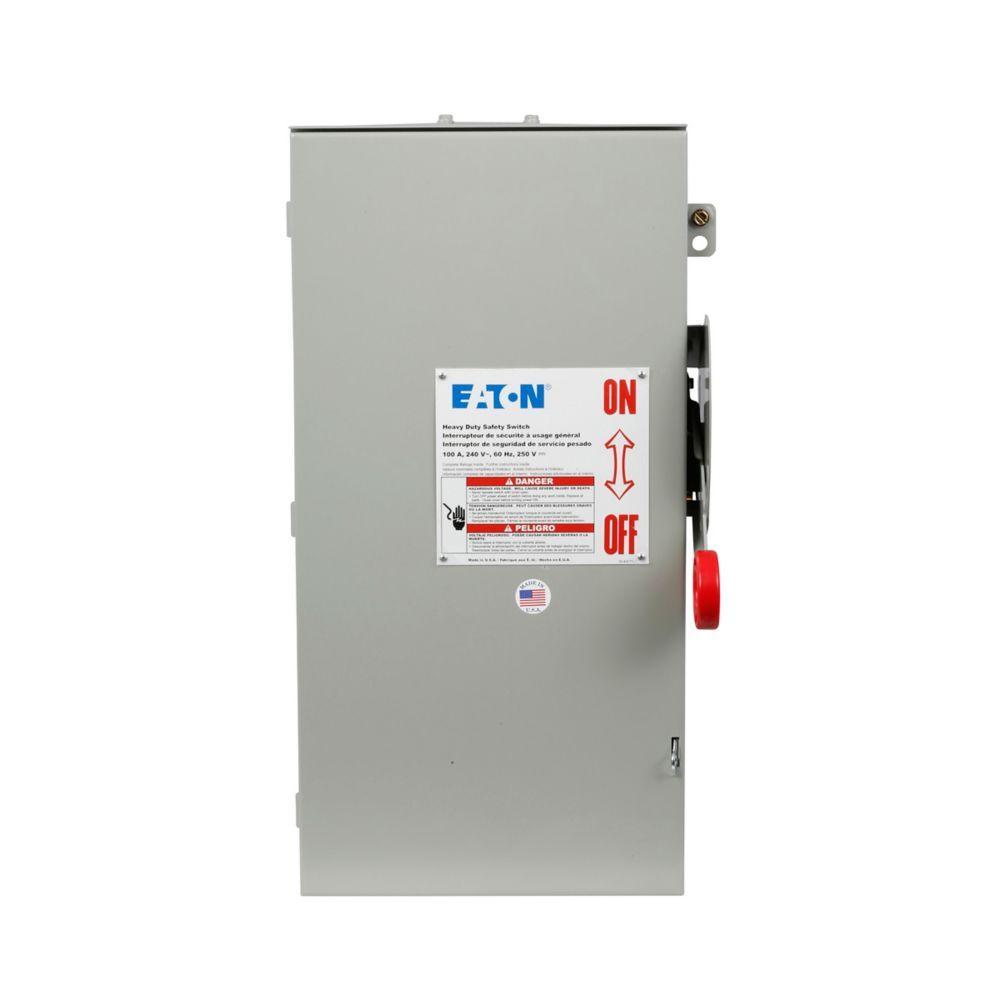

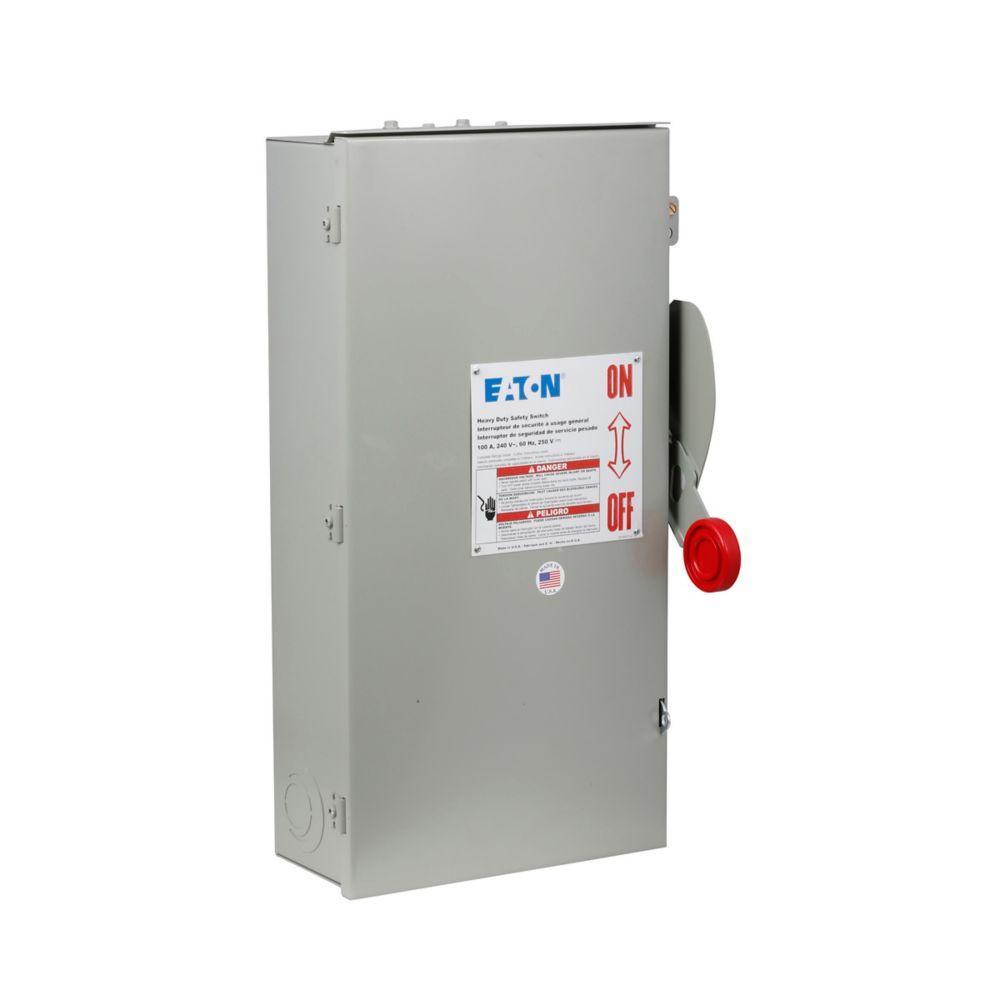

EATON Safety Switch, Heavy Duty Fusible Rainproof, Series: K Series, 600 VAC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 1/3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit, TPST, Class H Insulation, NEMA 3R, 22-1/2 in L x 12-3/4 in W x 8-1/2 in H, Steel, Galvanized/Painted

• Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
• Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
• Triple padlocking capability increases personnel safety
• Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary

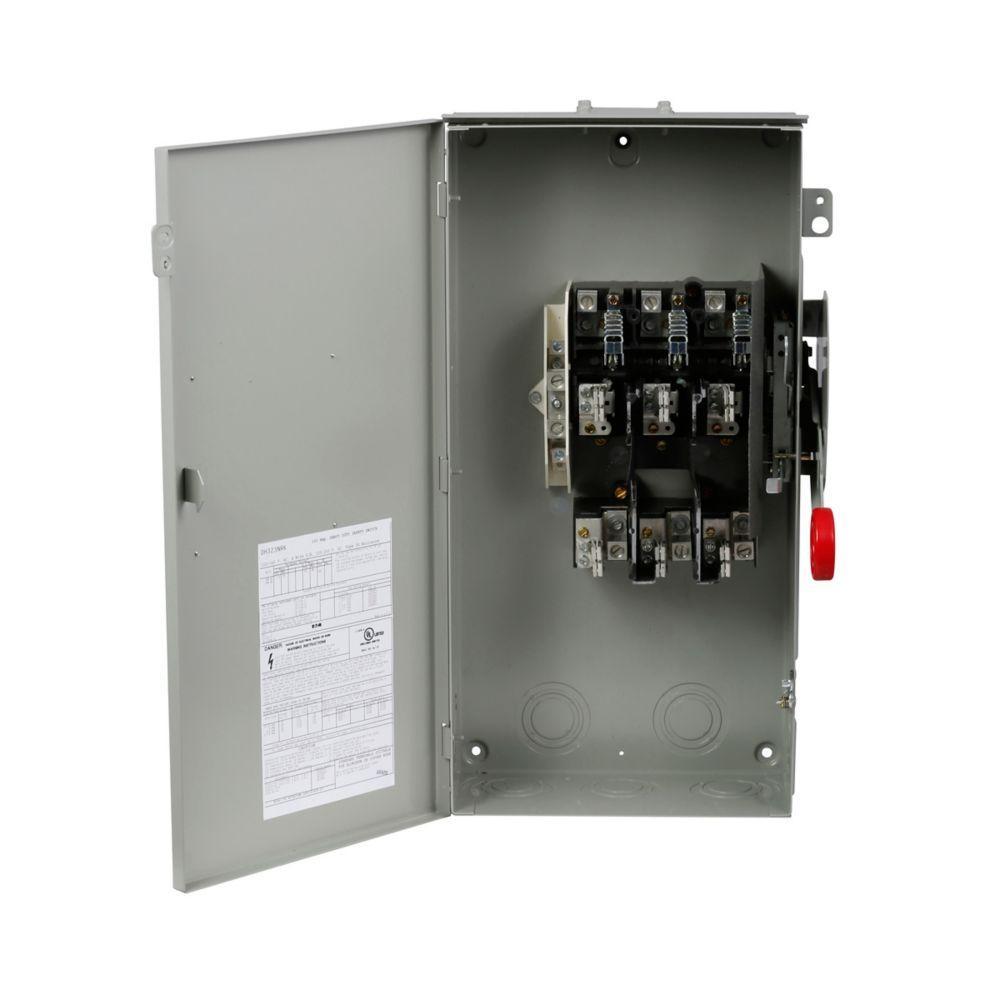

• Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
• Complete accessory and renewal parts data shown on inner door label
• Meets stringent UL 98 standards for safety, durability and reliability
• Accepts class I fuses
• Without neutral fuse configuration
• 100 hp at 240 VAC standard 3 ph, 250 hp at 240 VAC TD 3 ph maximum horsepower rating
