Wiring Device-Kellems IG2310

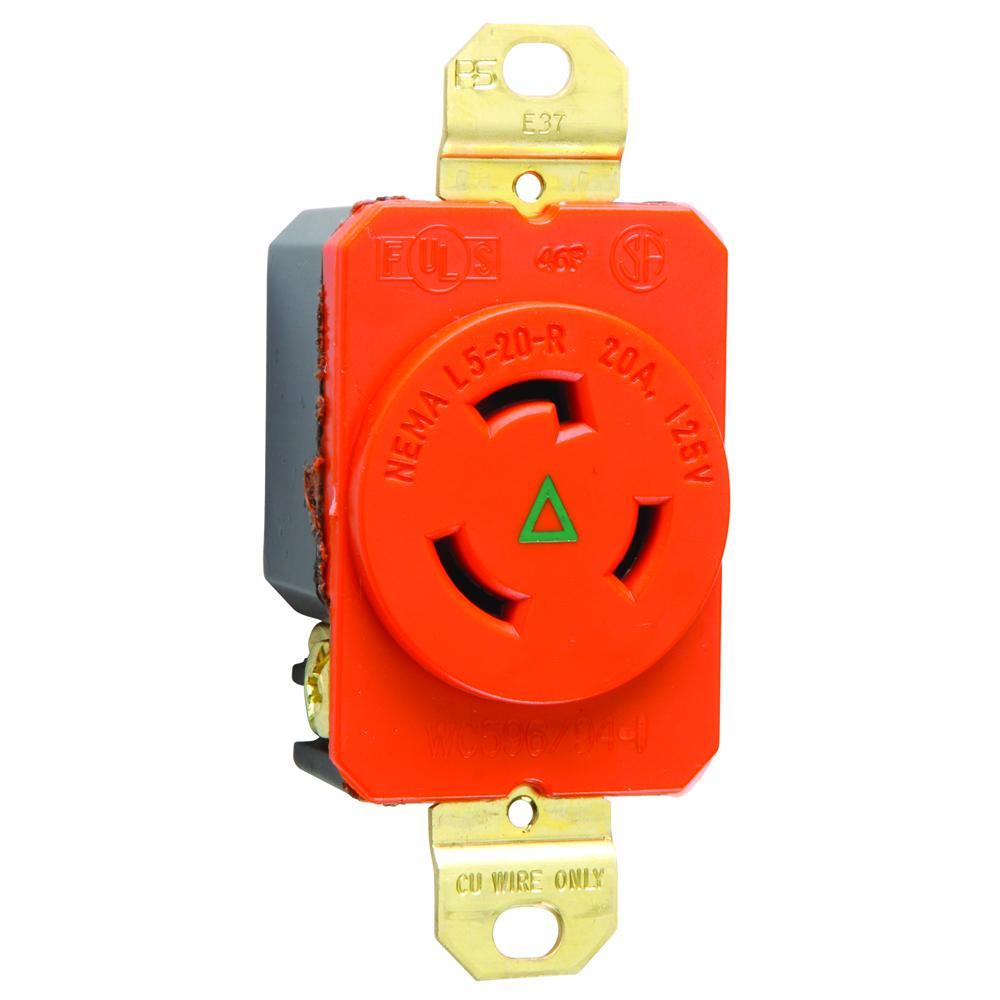

Wiring Device-Kellems Twist-Lock® Insulgrip® IG2310 1-Phase Heavy Duty Isolated Grounding Single Screw Mount Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange
- Manufacturer Name: Hubbell
- MPN: IG2310
- Brand Name: Wiring Device-Kellems
- UPC: 783585872209
- FEPN: IG2310 HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, 1-Phase Heavy Duty Isolated Grounding Single Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Nylon, Orange, 3.28 x 1.24 x 1.7 in
| Dimensions | : | 3.28 x 1.24 x 1.7 in |
| Enclosure | : | NEMA 4X/12/IP20 |
| Grade | : | Industrial |
| Horsepower | : | 1 hp |
| Material | : | Nylon |
| NEMA Rating | : | L5-20R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Heavy Duty Isolated Grounding Single Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Orange |
- Withstands 2000 VAC dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- #10-32 bronze (white finish on neutral screw when used) terminal screw
- 12 AWG terminal accommodation
- Certified for current interrupting at full rated current interrupting
- Steel zinc plated mounting screw
