For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

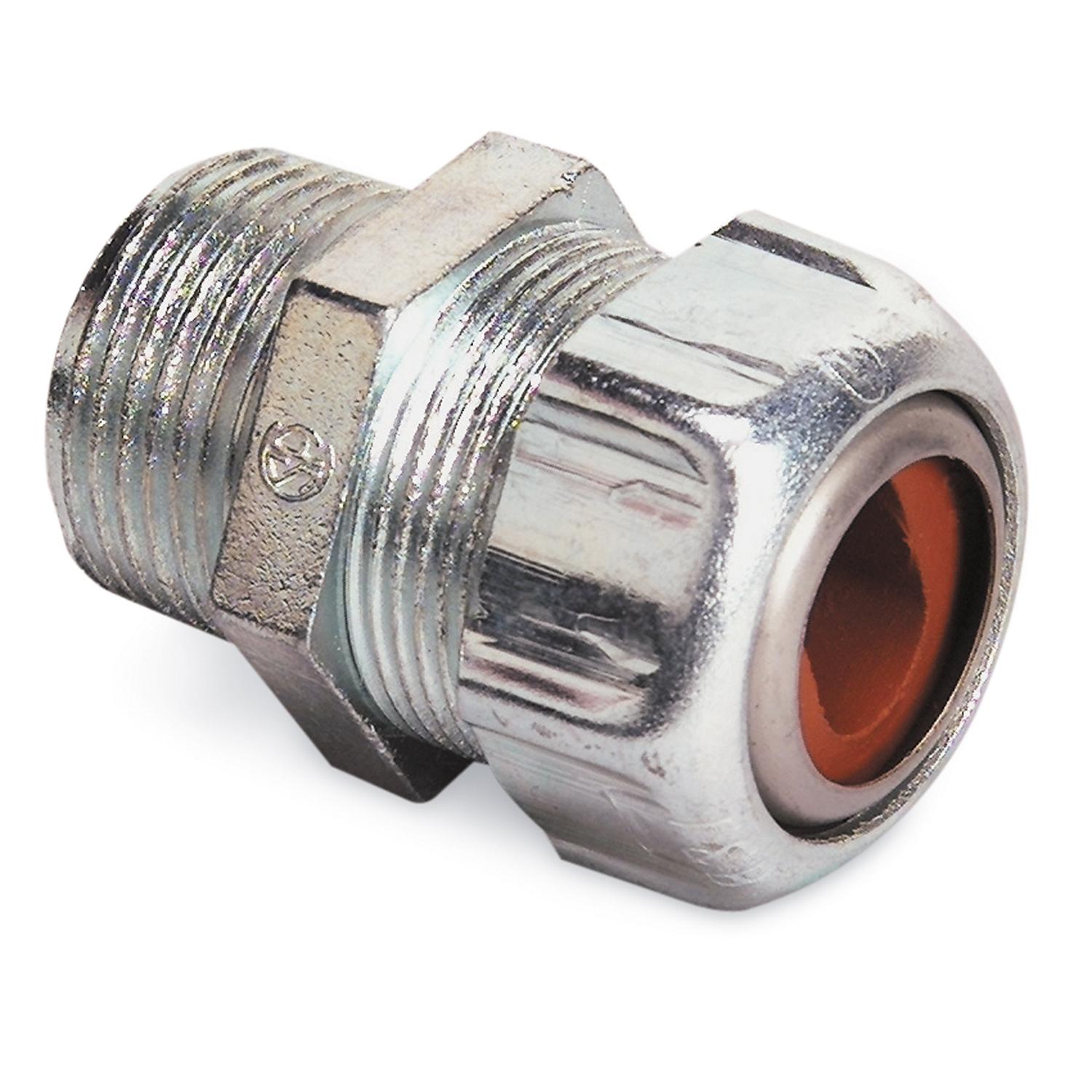

T&B® Watertight Cable Connector, Straight, 3/4 in, Cable Openings: 0.26 x 0.5 in to 0.385 x 0.6 in, Oval Cable, Thread, Die Cast Zinc, Chromate Coated/Electro-Zinc Plated, Metallic, 1-11/16 in L x 1-1/4 in W

• Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
• Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
• Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
• Threads on the body are tapered for water sealing
• Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
• Rugged ribbed steel gland construction
• 1-3/8 in max body corners
• 9/16 in L thread
• 1-3/8 in max gland corners
• A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
