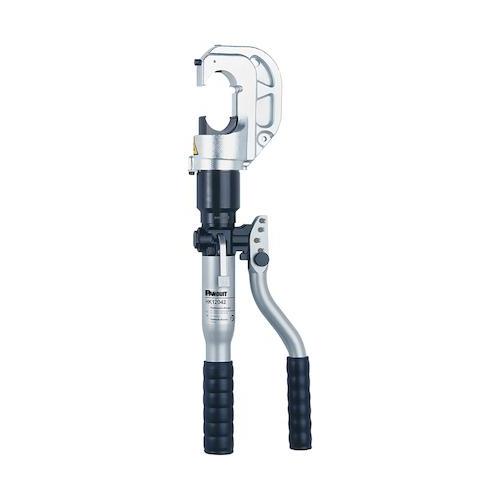

Panduit® Crimping Tool, Die Type Manual Hydraulic, 8 AWG to 750 kcmil Cable/Wire, 25 in Overall Length, Shearing: 14 ton, 1.65 in Jaw, Cushion Grip Handle, Fiberglass Handle, 2.7 in H Dimensions
| Dimensions | : | 2.7 in H |
| Handle Material | : | Fiberglass |
| Handle Type | : | Cushion Grip |
| Jaw Size | : | 1.65 in |
| Overall Length | : | 25 in |
| Type | : | Die Type Manual Hydraulic |
| Cable/Wire Size | : | 8 AWG to 750 kcmil |
| Shearing Capacity | : | 14 ton |
- Develops 14 tons of crimping force, crimps copper compression lugs and splices up to 750 kcmil
- Two stage rapid advance hydraulic system minimizes number of pumps required to complete a crimp, saves time
- High quality, durable tool construction provides long-term dependability
- Cushioned grip prevents hands from slipping on tool, reduces fatigue
- Open C-head design allows easy loading of crimping dies and connectors, saves time
- Uses color coded crimping dies to provide easy matching of crimping die to connector
- Embosses die index number on connector barrels for post crimp inspection
- Dies installed using spring loaded die retention pins, no need for tools
- Rubber boot on crimp head provides abrasion protection
- Audible pop-off valve indicates crimp completion
- Crimp head rotates 180 deg, provides versatility for use in restricted spaces
- 10 to 3/0 AWG Cu code CTAPF taps, 8 to 4/0 AWG Cu code CTAP taps, 14 AWG to 250 kcmil code Cu code HTCT taps, 14 to 4/0 AWG flex, 6 AWG to 600 kcmil Al code lugs and splices, 8 AWG to 250 kcmil code tubular terminals
