EATON MBP200BTSD

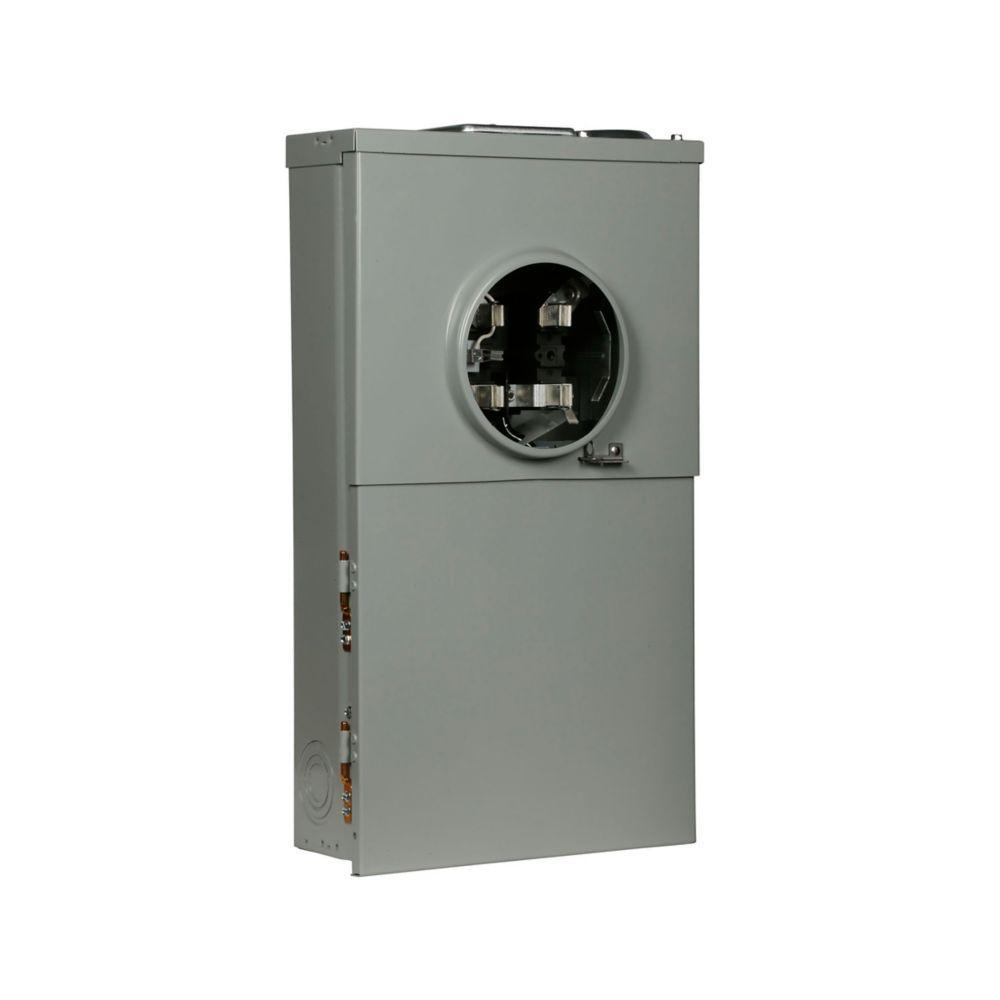

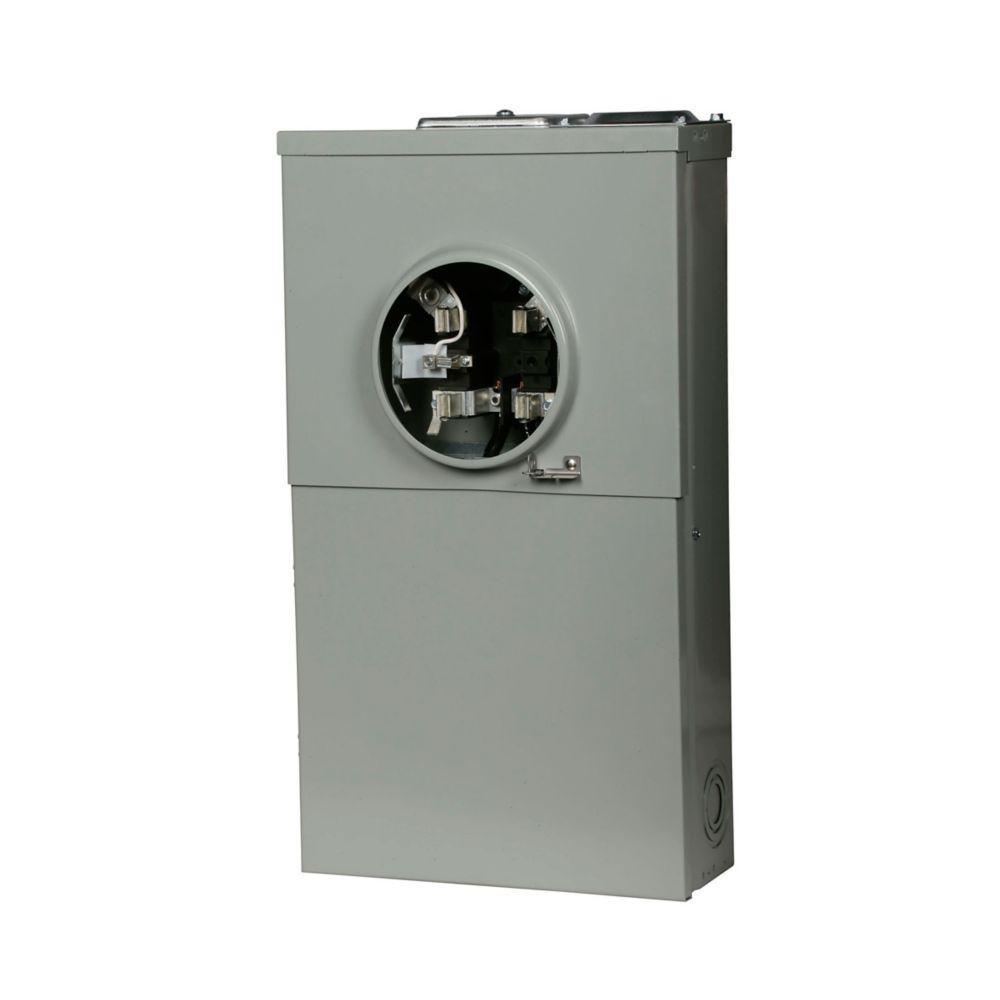

EATON MBP200BTSD MB Series Type BR 36-Circuit 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC Meter Main Breaker, 120/240 VAC, 200 A, 1 Phase , NEMA 3R Enclosure
- Manufacturer Name: Eaton
- MPN: MBP200BTSD
- Brand Name: EATON
- UPC: 782114887707
- FEPN: MBP200BTSD EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON's residential meter breakers are service entrance equipment systems that consist of a single meter socket and load center (circuit breaker distribution section) or meter socket and main breaker combined in one enclosure.
EATON Meter Main Breaker, Type BR 36-Circuit 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC, Series: MB Series, 120/240 VAC, 200 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil Wire, Top Endwall, 1 in Hub, Ringless Cover, Line/Load Terminal, Surface Mount, NEMA 3R, 5.38 in L x 14.44 in W x 25 in H
| Cover Type | : | Ringless |
| Dimensions | : | 5.38 in L x 14.44 in W x 25 in H |
| Feed Type | : | Bottom/Overhead/Top/Underground |
| Hub Size | : | 1 in |
| Hub Type | : | Top Endwall |
| Mounting Type | : | Surface |
| Number of Jaws | : | 5 |
| Series | : | MB Series |
| Terminal Type | : | Line/Load |
| Wire Size | : | 6 AWG to 350 kcmil |
| Type | : | Type BR 36-Circuit 3-Wire All-In-One Horn bypass Combination Service Entrance Non-EUSERC |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 200 A |
| Phase | : | 1 |
| Enclosure Type | : | NEMA 3R |

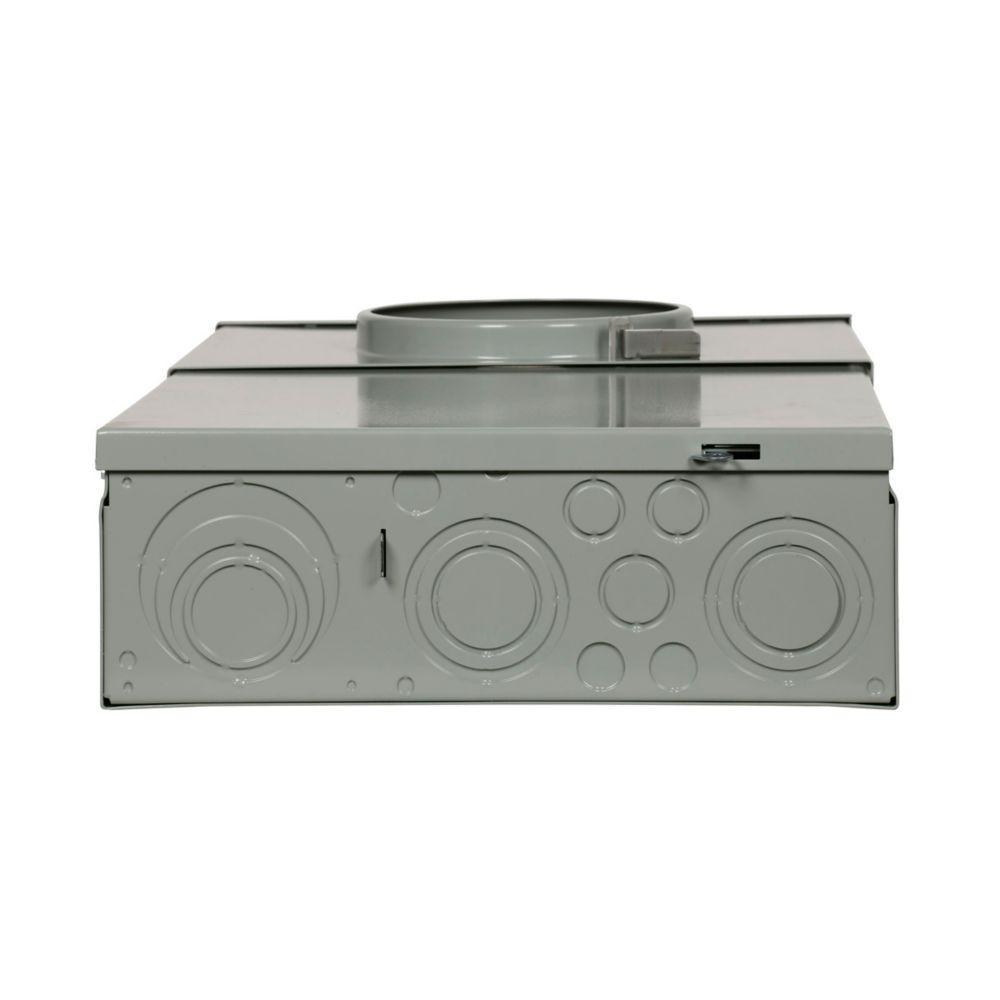

- Larger lay-in lugs and 3 in knockouts for ease of installation

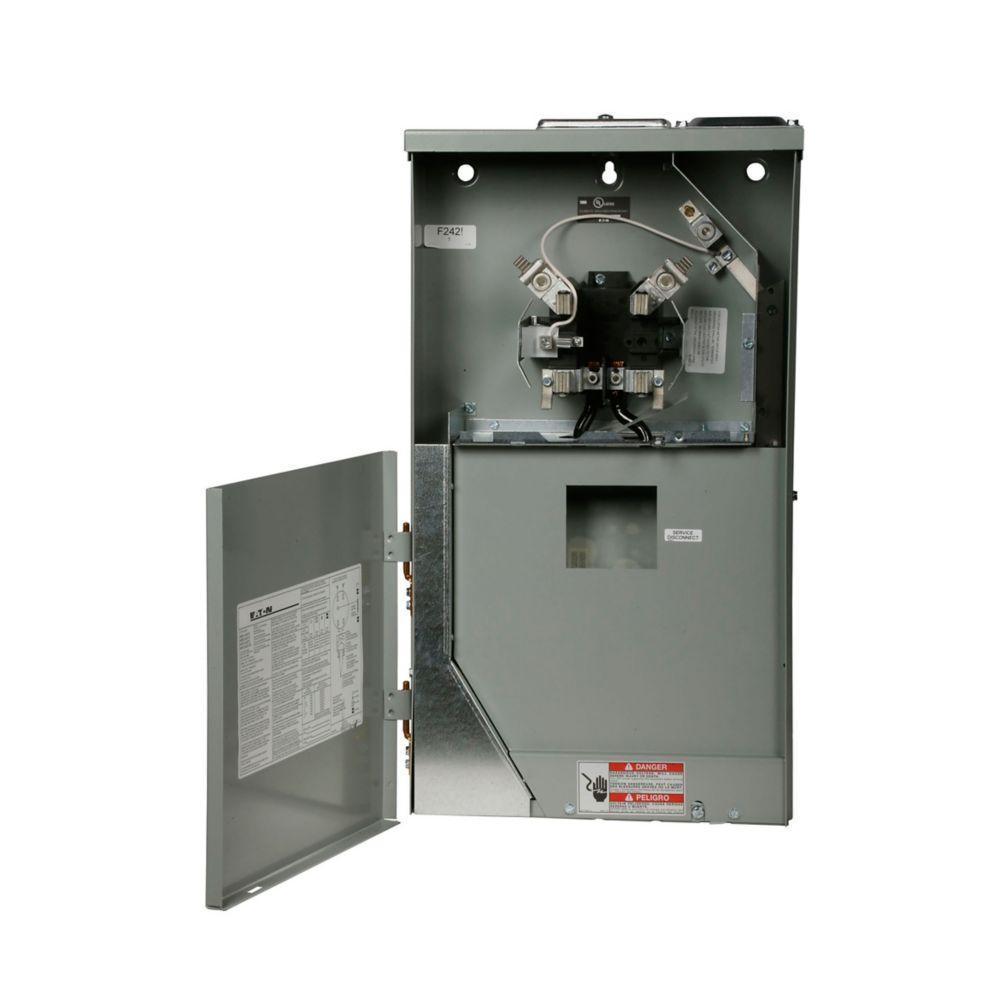

- Factory installed neutral assemblies
- Hub provisions on top endwall
- Padlockable device covers provide an additional measure of security and help prevent tampering
- Without distribution section
