Color-Keyed® 54720

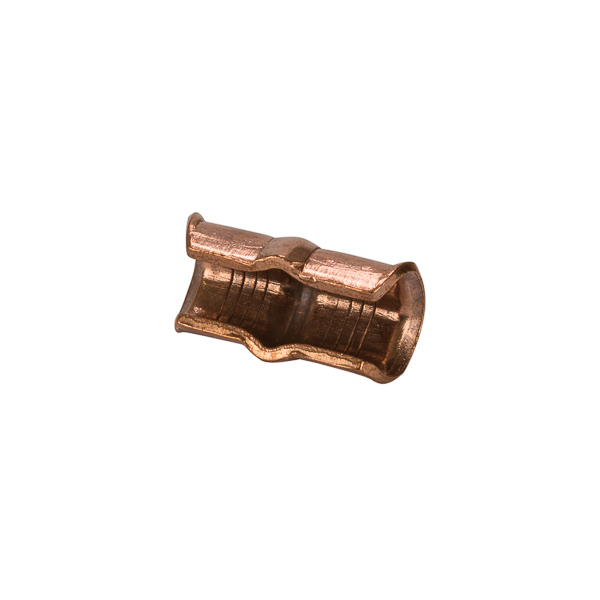

Color-Keyed® 54720 Standard C-Tap Compression Connector, C Shape, 1 Taps, 8 to 4 AWG Main/Run, 12 to 8 AWG Tap, Copper
- Manufacturer Name: ABB
- MPN: 54720
- Brand Name: Color-Keyed®
- UPC: 786210547206
- FEPN: 54720 TB
- Min Order Qty: 1
- Quantity Interval: 100
-
Inventory Availability
-
Retail Price:
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Color-Keyed® C-Tap Compression Connector, Standard, C Shape, 1 Total Taps, 8 to 4 AWG Main/Run, 12 to 8 AWG Tap, 600 V AC, Solid/Stranded Copper Conductor, Specifications: 33 Die Code, Brown, Plain, Copper, Plain, 1-5/32 in L x 11/16 in H
| Conductor Type | : | Solid/Stranded Copper |
| Dimensions | : | 1-5/32 in L x 11/16 in H |
| Finish | : | Plain |
| Specifications | : | 33 Die Code, Brown, Plain |
| Type | : | Standard |
| Voltage Rating | : | 600 V AC |
| Shape | : | C |
| Total Taps | : | 1 |
| Main/Run Size | : | 8 to 4 AWG |
| Tap Size | : | 12 to 8 AWG |
| Material | : | Copper |
- Positive, all around compression with low resistance and high pull out values
- Heavy reinforcing ribs help locate compression dies and strengthen compressed joint
Specification Sheet
