Wiring Device-Kellems RMS121ILLA
Send Print
  1. pin-int

Wiring Device-Kellems RMS121ILLA

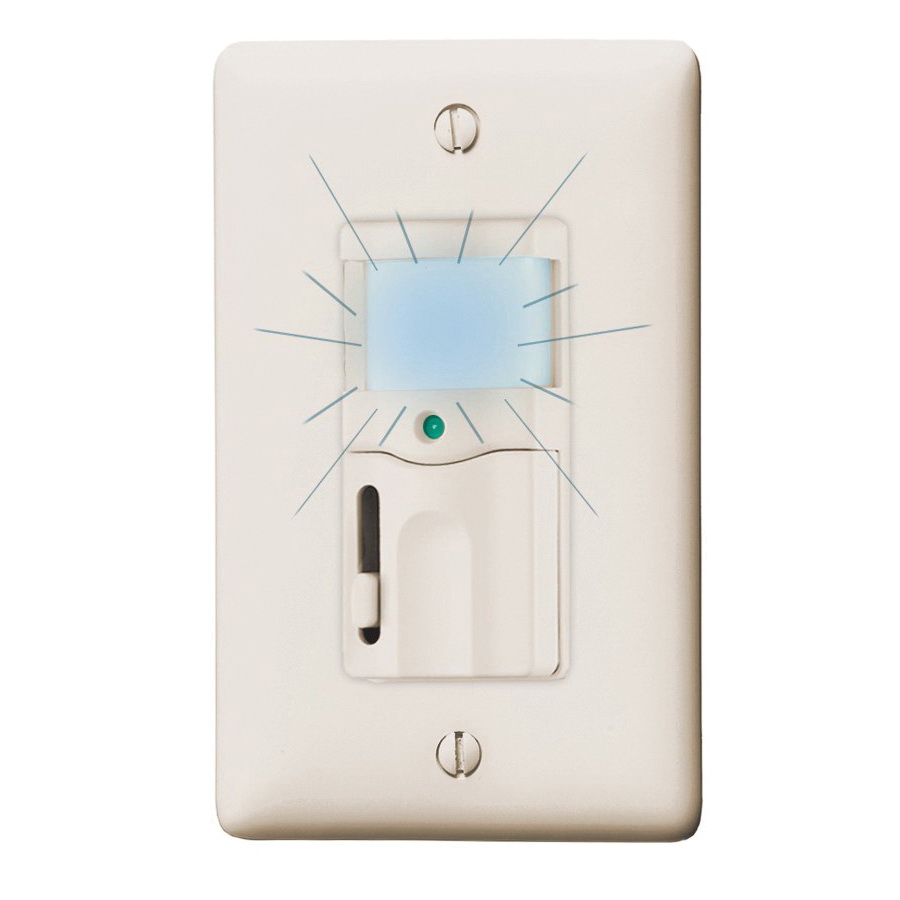

Wiring Device-Kellems tradeSELECT® H-MOSS® RMS121ILLA 1-Pole Adjustable Dimming Sensor Switch With Night Light, 120 VAC, Passive Infrared Sensor, 800 sq-ft Coverage, 150 deg Viewing, Threaded Mount

  • Manufacturer Name: Hubbell
  • MPN: RMS121ILLA
  • Brand Name: Wiring Device-Kellems
  • UPC: 883778301254
  • FEPN: RMS121ILLA HW
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Wiring Device-Kellems tradeSELECT® H-MOSS® Dimming Sensor Switch, 1-Pole Adjustable, 120 VAC, 500 W Power, Passive Infrared Sensor, 800 sq-ft Coverage, 150 deg Viewing, 30 s to 30 min Time Delay, Red LED Lamp, Wire Lead Connection, Automatic On/Automatic Off Control Output, Threaded Mounting, 32 to 104 deg F, Light Almond

Color       :      Light Almond
Connection Type       :      Wire Lead
Control Output       :      Automatic On/Automatic Off
Lamp Type       :      Red LED
Power Rating       :      500 W
Temperature Rating       :      32 to 104 deg F
Time Delay       :      30 s to 30 min
Type       :      1-Pole Adjustable
Voltage Rating       :      120 VAC
Sensor Type       :      Passive Infrared
Coverage       :      800 sq-ft
Viewing Angle       :      150 deg
Mounting Type       :      Threaded
  • Photocell equipped for daylight harvesting
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_62a571b82d7986971033deb34513bb0aa94d5c93cf92447770881a09fbfc051d.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b1b0454c44e64bc270718f1ce94c6b2e1b76f75ceb12bf571c87b5ce69445b8e.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_RMS120ILI_Catalog.pdf
